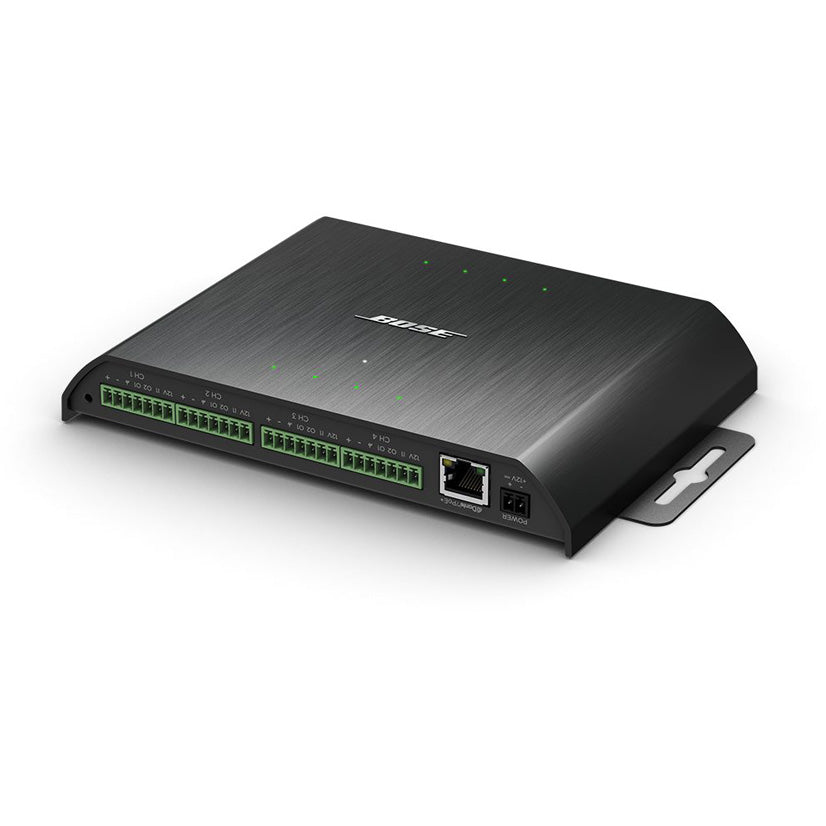

Bose ControlSpace EX-8ML Microphone/GPIO Dante Endpoint
Model 772045-0110
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Microphone/Line Inputs: 8 balanced, mic/line
- Phantom Power: 48 VDC, selectable per input
- Logic I/O: 8 GPI and 16 GPO
- Network Audio: Dante
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose ControlSpace EX-8ML?
The Bose ControlSpace EX-8ML is a Dante endpoint that adds microphone/line inputs and logic connections near the conference-table microphones, reducing the need to route each analogue microphone cable back to the equipment rack. Corporate AV can specify the compatible equipment, cabling and configuration for a project in Dubai, Abu Dhabi or elsewhere in the UAE.
This microphone/gpio dante endpoint is one component of a complete audio installation. Match the microphone audio, LED/pushbutton logic and phantom-power requirements to the endpoint connections. Configure Dante routing and control logic in the supported ControlSpace system and verify the documented power arrangement.
- Network Audio: Dante.
- System specification: Include the device, compatible interfaces, power and commissioning requirements in the equipment schedule.
Use cases
Applications
-
Commercial audio systems
Coordinate the device with the specified source, control and output equipment.
-
Corporate AV projects
Plan the wiring, equipment locations and operating requirements before installation.
-
System upgrades
Confirm compatibility with the existing model, firmware and signal connections.
Technical details
Technical Specifications
System
- Configuration
- ControlSpace Designer
Power
- Phantom Power
- 48 VDC, selectable per input
- Power
- Documented PoE+ or 12 VDC arrangement
- Phantom Power
- 48 VDC, selectable per input.
Connectivity
- Microphone/Line Inputs
- 8 balanced, mic/line
- Network Audio
- Dante
- Microphone/Line Inputs
- 8 balanced, mic/line.
General
- Model
- ControlSpace EX-8ML
- Manufacturer Part Number
- 772045-0110
- Logic I/O
- 8 GPI and 16 GPO
- Logic I/O
- 8 GPI and 16 GPO.
In the box
What's Included
-
(1) ControlSpace EX-8ML
-
(1) mounting template
-
(4) mounting screws
-
(1) installation guide
-
(10) cable ties
-
(2) 2-pin Euroblock connectors
-
(8) 7-pin Euroblock connectors
Installation
Installation & Mounting
Recommended Compatible Equipment

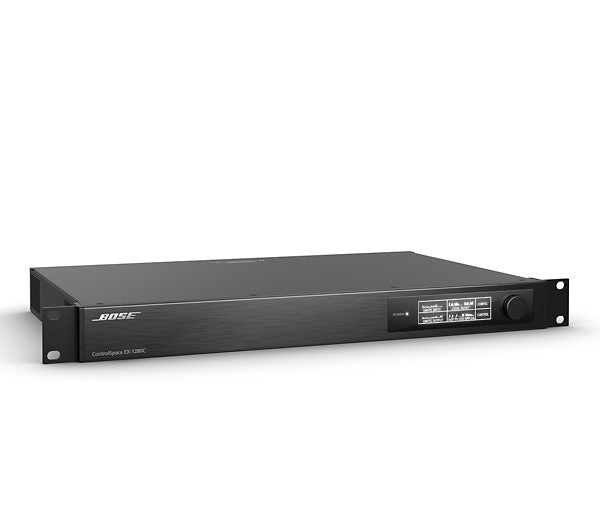

Bose ControlSpace EX-1280C conferencing sound processor is a documented compatible conferencing processor option. Commission the signal routing, AEC allocation and network connections for the chosen system.

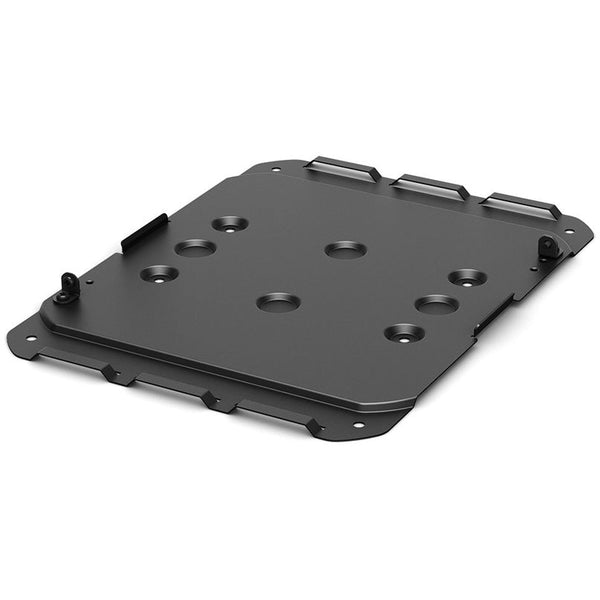

Bose ControlSpace EX Endpoint Mounting Bracket is the compatible endpoint mounting accessory. Select the mounting position and required fixings for the installation.
Installation
Match the microphone audio, LED/pushbutton logic and phantom-power requirements to the endpoint connections. Configure Dante routing and control logic in the supported ControlSpace system and verify the documented power arrangement.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share the ControlSpace EX-8ML quantity, existing equipment, required audio functions and project location with Corporate AV for an itemised supply and commissioning proposal.
