Product details
Overview

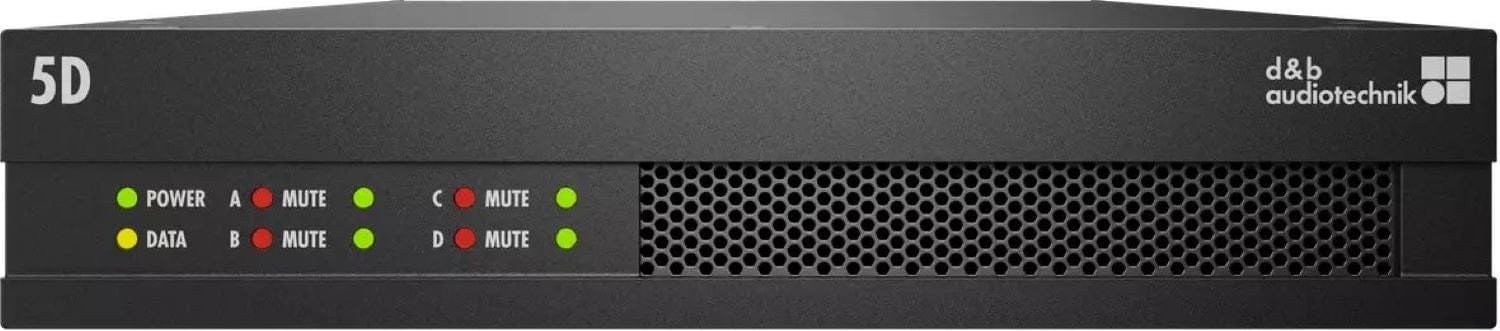

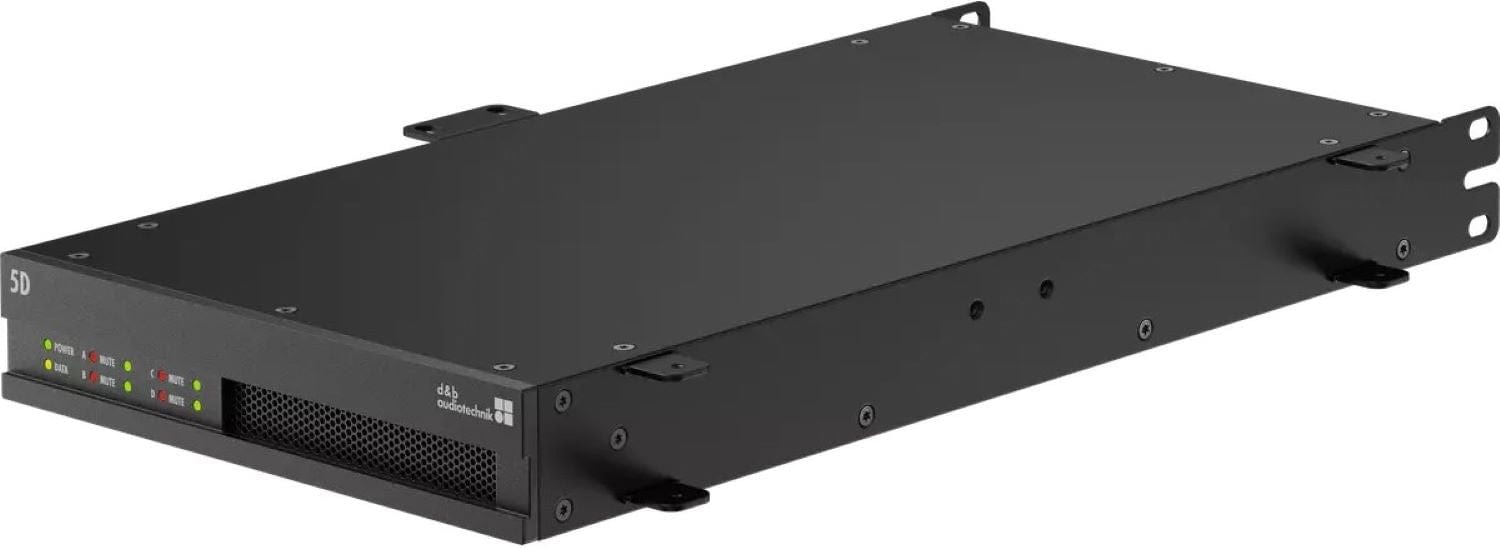

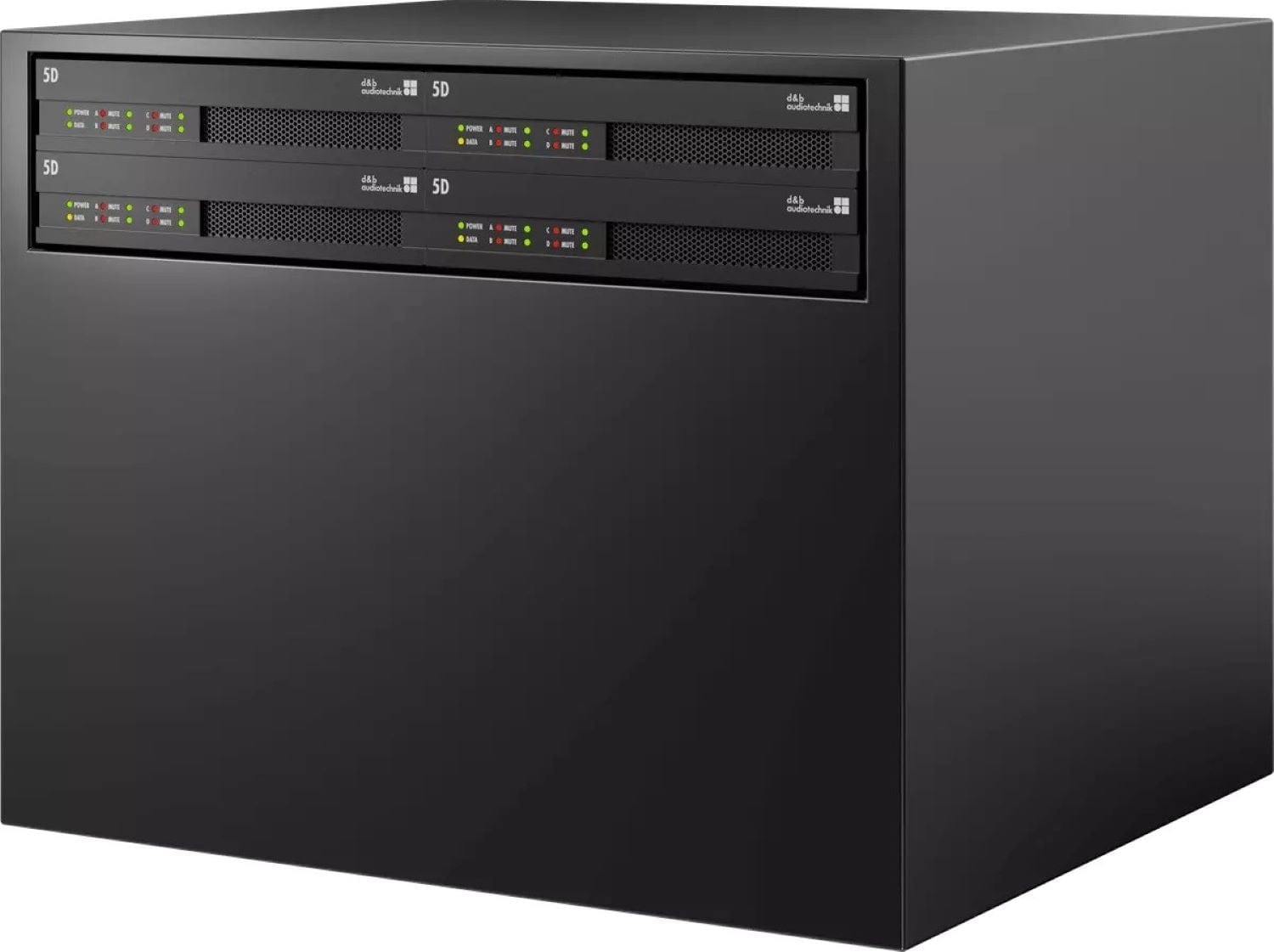

d&b audiotechnik 5D Amplifier
The 5D is a Class D installation amplifier with flexible power distribution among its four output channels. It uses Digital Signal Processing (DSP) to incorporate loudspeaker-specific configurations for smaller loudspeakers from E-Series, xS-Series, xC- and T-Series, as well as equalization and delay functions. A linear setup is available allowing the amplifier to be used as a linear installation power amplifier. The amplifier has a dynamic range of 111 dB (Dante input, unweighted) and is designed to drive a selected range of d&b loudspeakers while providing comprehensive management and protection capabilities.
Technical details
Technical Specifications
System
- Configurations
- Selected loudspeakers from E-Series, xS-Series, xC Series, T-Series; Linear setup
- Type
- Wide range switched mode power supply with active Power Factor Correction (PFC)
Frequency
- Frequency generator
- Pink noise or Sine wave 10 Hz – 20 kHz
Power
- Rated mains voltage
- 100 - 240 V, 50 - 60 Hz
Connectivity
- Latency analog and digital inputs
- 1.1 ms / < 3 ms
- Ethernet, Dante Input

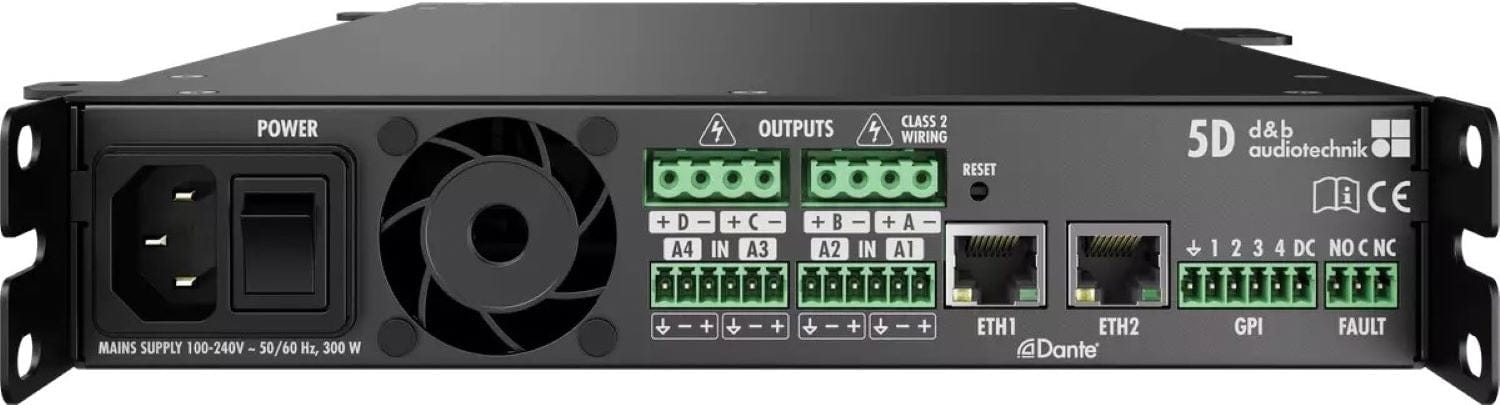

- 2 x RJ 45, 1 Gbit / 100 Mbit GPI: 1 x 6-pin Euroblock 3.5 mm male Input / Link ANALOG (A1-A4): 2 x 6-pin Euroblock male, 3.5 mm Speaker outputs A/B/C/D: 2 x 4-pin Euroblock 5.08 mm female Mains connector: IEC FAULT: 1 x 3-pin Euroblock 3.5 mm male
Physical
- Dimensions (H x W x D)
- 1 RU x 9.5" x 435 mm/17.1"
General
- Display
- LED indicators
More details
Additional Information
Specifications:
- Digital Signal Processing:
- Controls and indicators:
- Connectors:
- Power supply:
- Dimensions / weight:
- Weight:
- 4.6 kg
- 10 lb
- Weight:
Speakers and Subs:
- d&b audiotechnik T10 Loudspeaker
- d&b audiotechnik Ti10L Loudspeaker
- d&b audiotechnik 4S Loudspeaker
- d&b audiotechnik 5S Loudspeaker
- d&b audiotechnik 8S Loudspeaker
- d&b audiotechnik 10S Loudspeaker
- d&b audiotechnik 10S-D Loudspeaker
- d&b audiotechnik 42S Loudspeaker
- d&b audiotechnik 44S Loudspeaker
- d&b audiotechnik E4 Loudspeaker
- d&b audiotechnik E5 Loudspeaker
- d&b audiotechnik E6 Loudspeaker
- d&b audiotechnik Ti10P Loudspeaker
- d&b audiotechnik U3 Loudspeaker
- d&b audiotechnik U5 Loudspeaker
-
d&b audiotechnik U7 Passive Loudspeaker
- d&b audiotechnik 12S Subwoofer
- d&b audiotechnik B8 Subwoofer
- d&b audiotechnik B10 Subwoofer
- d&b audiotechnik Bi8 Subwoofer
- d&b audiotechnik Bi10 Subwoofer
- d&b audiotechnik E15X Subwoofer
- d&b audiotechnik Ti Subwoofer
- d&b audiotechnik 16C Loudspeaker
- d&b audiotechnik 24C Loudspeaker
- d&b audiotechnik 24C-E Loudspeaker
