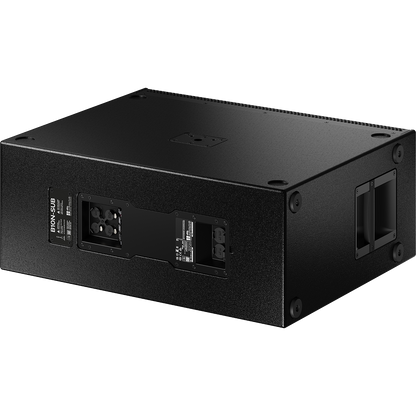

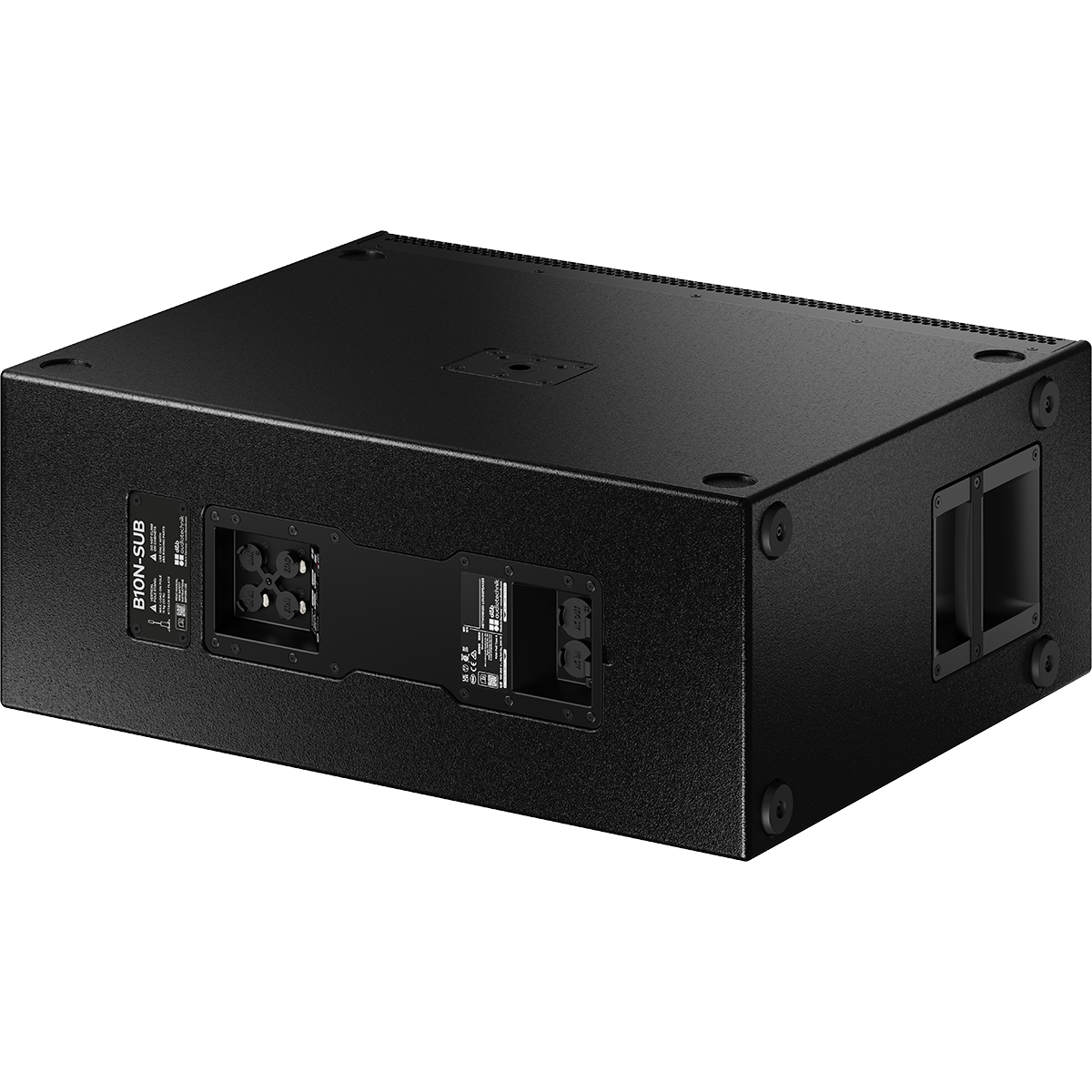

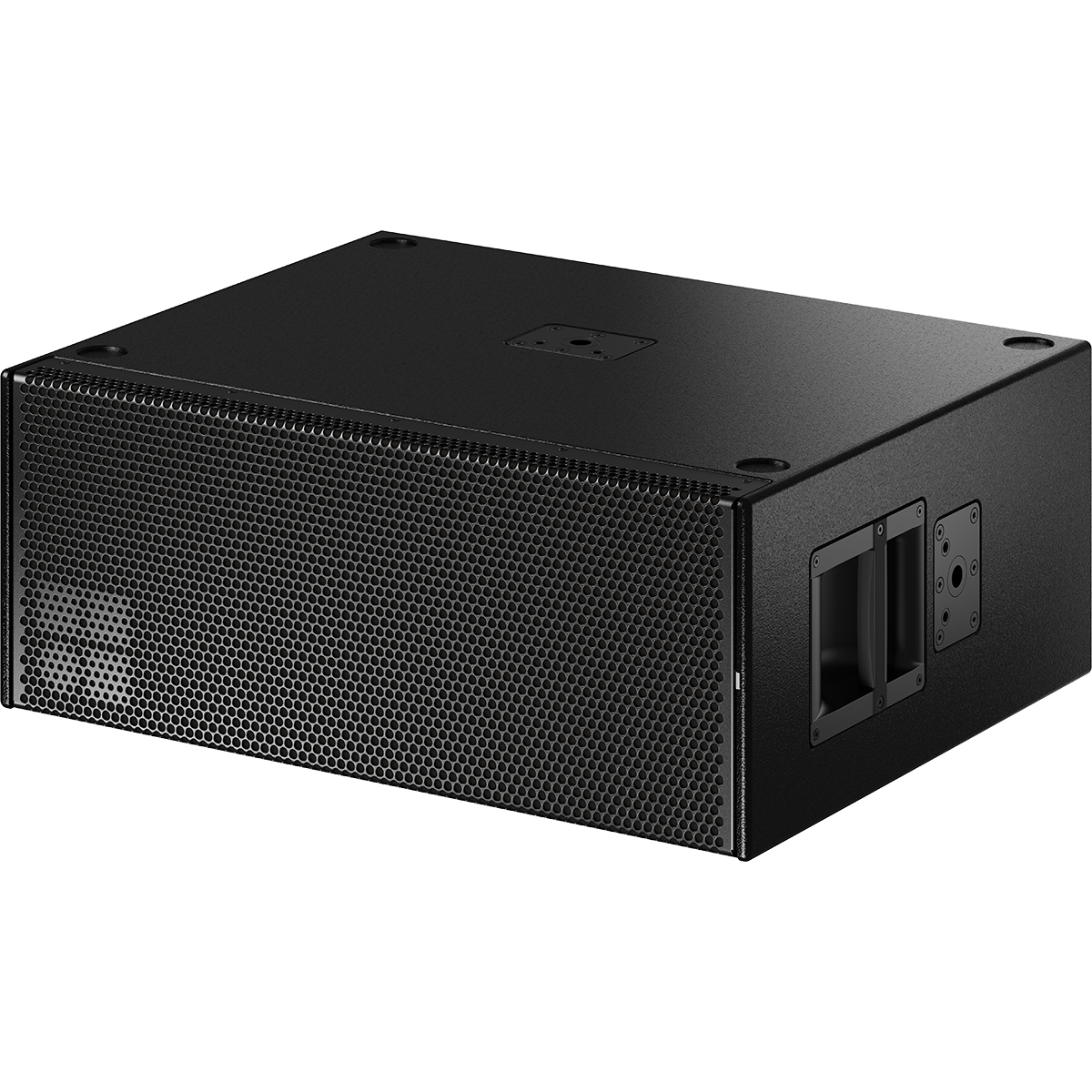

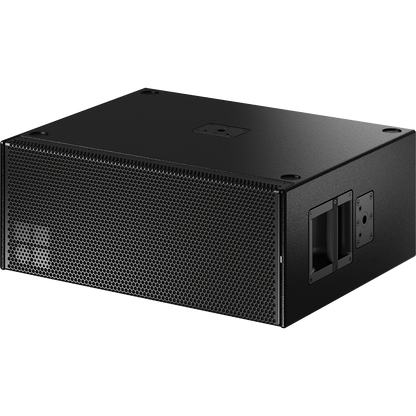

d&b audiotechnik B10N Subwoofer
Model Z2025.000
Price on Request
Availability: In Stock
- Authorized d&b audiotechnik Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
d&b audiotechnik B10N-SUB Mobile Specific Compact Multipurpose Networked Subwoofer
The B10 is a compact subwoofer, featuring dual 10" drivers in a bass-reflex cabinet with optimised port geometry, it delivers controlled LF extension without sacrificing footprint.
The subwoofer has a refined electroacoustic design that achieves full output capability when paired with a 5D amplifier, and optimal configuration recommendations are available through the 5D PowerShare Calculator.
The subwoofer features a hybrid power topology, running on AC, PoE++, or both simultaneously, with single-cable operation carrying power, signal, control, and monitoring, while dual-cable redundancy (2x PoE++ + 2x Milan) supports mission-critical installations and ensures compatibility with the DN2 Milan PoE++ switch or equivalent third-party PoE++ hardware.
Why this product
Key Benefits
-
Components 2 x 10”
-
Dispersion Omnidirectional
-
SPLmax 129 dB*
Technical details
Technical Specifications
System
- Equalizer
- 2 user definable 16-band equalizer
- Delay
- 1.1 ms to 1 sec.
Frequency
- Frequency response (-5 dB standard)
- 38 Hz- 130 Hz
- Frequency generator
- Pink noise or sine wave 10 Hz to 20 kHz
Power
- Mains voltage
- powerCON TRUE1 TOP In and Thru
- Power supply
- Switched mode power supply with automatic mains range selection and active Power Factor Correction (PFC).
- Rated mains voltage
- 100 - 240 V, 50 - 60 Hz
Connectivity
- Latency analog input
- 1.1 ms
- INPUT ANALOG
- 3 pin XLR female
- ANALOG LINK
- 3 pin XLR male, parallel to input
- Network Connection
- 2 x RJ 45 (etherCON)
- Network Switch
- integrated 2-port, 100 Mbit/1 Gbit
Physical
- Dimensions (h x w x d)
- 280 x 706 x 565 mm, 11 x 27.8 x 22.25"
- Weight
- 28.5 kg / 63 lb
General
- PoE++
- 129 dB
- AC
- 129 dB
- ETH1/PRI
- Milan, Remote control via R1 star topology
- ETH2/SEC
- Milan redundancy only, no remote control star topology
More details
Additional Information
Specifications:
- Frequency response (-5 dB 100 Hz mode, IEC60268): 38 Hz - 100 Hz
- Max. sound pressure
- MILAN INPUT: 1 stream with up to 8 channels @ 48/96 kHz
