d&b audiotechnik D40 Amplifier
Model Z2850-500
Price on Request
Availability: In Stock
- Authorized d&b audiotechnik Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

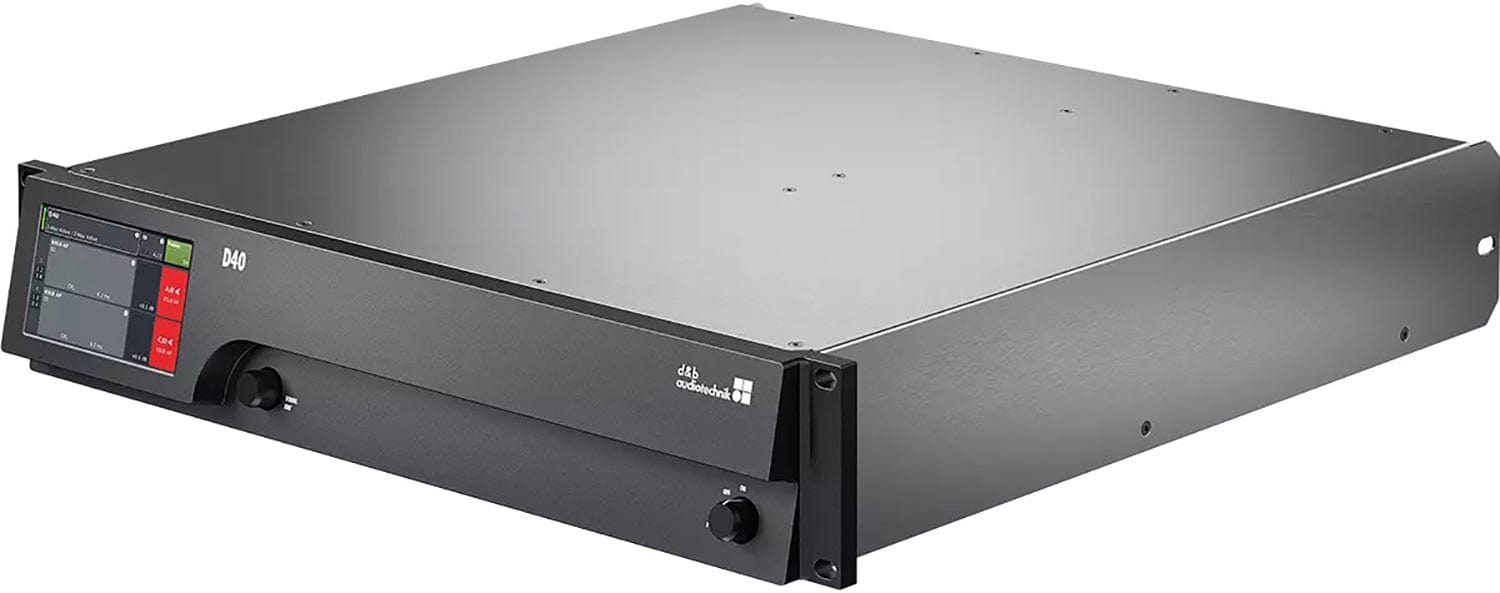

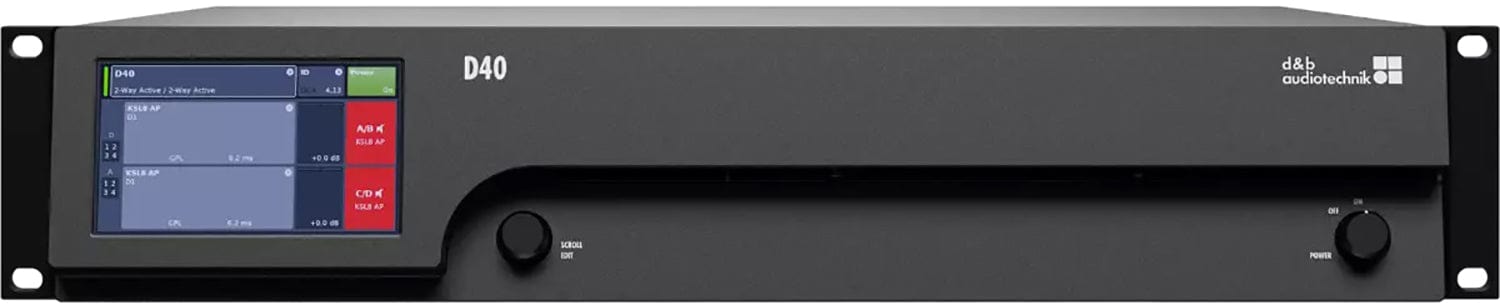

d&b audiotechnik D40 Amplifier
The D40 amplifier represents a new performance level of four channel Class D amplifiers using Digital Signal Processing (DSP) to incorporate loudspeaker specific configurations and user definable setups, equalization and delay functions.
Why this product
Key Benefits
-
High voltage output suitable for driving applicable d&b loudspeakers, including the KSL System
-
Increases overall system efficiency
-
Advanced voltage management
-
Energy-efficient for minimal ecological impact
-
Enhanced DSP capabilities accommodates future system architecture
Technical details
Technical Specifications
System
- Equalizer
- 2 x 16-band PEQ/notch/shelving/asymmetric
- Delay setting
- 0.3 ms - 10 s
- Configurations
- current d&b loudspeakers (except GSL, SL-SUB, J-Series, M2)
- Type
- Autosensing switch mode power supply with active Power Factor Correction (PFC)
Frequency
- Frequency generator
- Pink noise or Sine wave 10 Hz - 20 kHz
- Sampling frequency Digital AES/EBU
- 44.1, 48, 96, 192 kHz
Power
- POWER
- Mains power switch
- Mains connector
- powerCON® TRUE1 TOP
- Rated mains voltage
- 100 - 127 / 208 - 240 V, 50 - 60 Hz

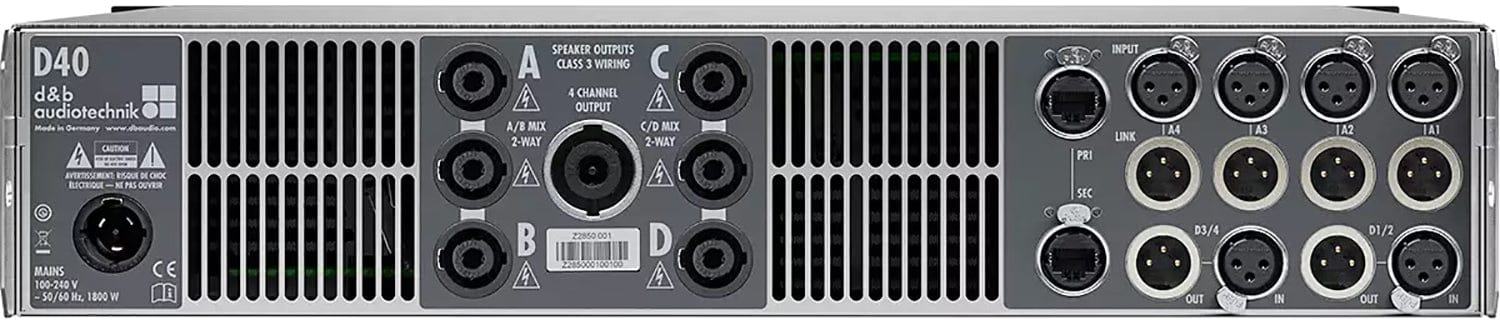

Connectivity
- Latency analog and digital inputs
- 0.3 ms
- INPUT ANALOG (A1 - A4)
- 3 pin XLR female
- ANALOG LINK (A1 - A4)
- 3 pin XLR male
- INPUT DIGITAL (D1/2, D3/4)
- 3 pin XLR female AES3
- DIGITAL LINK (Output)
- 3 pin XLR male
- Speaker outputs A/B/C/D
- NL4
- 4 Channel output
- NL8
- ETHERNET
- 2 x RJ 45, 1 Gbit/100 Mbit Ethernet
Physical
- Dimensions (H x W x D)
- 2 RU x 19" x 512 mm/20.2"
- Weight
- 13,8 kg (30,4 lb)
General
- Function switches
- d&b loudspeaker specific circuits
- SCROLL/EDIT
- Digital rotary encoder
- Display
- Colour TFT touchscreen, 4.35"/480 x 272 pixel
- CF = 12 dB at 4 / 8 ohms
- 4 x 2400/2000 W
More details
Additional Information
Specifications:
- Digital Signal Processing:
- Controls and indicators:
- Connectors
- Mix TOP/SUB / 2-Way Active output A/B and C/D: NL4
- Data (linear setting with subsonic filter):
- Maximum output power per channel (THD+N < 0.5%, all channels driven)
- Power supply:
- Dimensions / weight:
