d&b audiotechnik DS100 Signal Engine
Model Z4100.000
Price on Request
Availability: In Stock
- Authorized d&b audiotechnik Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

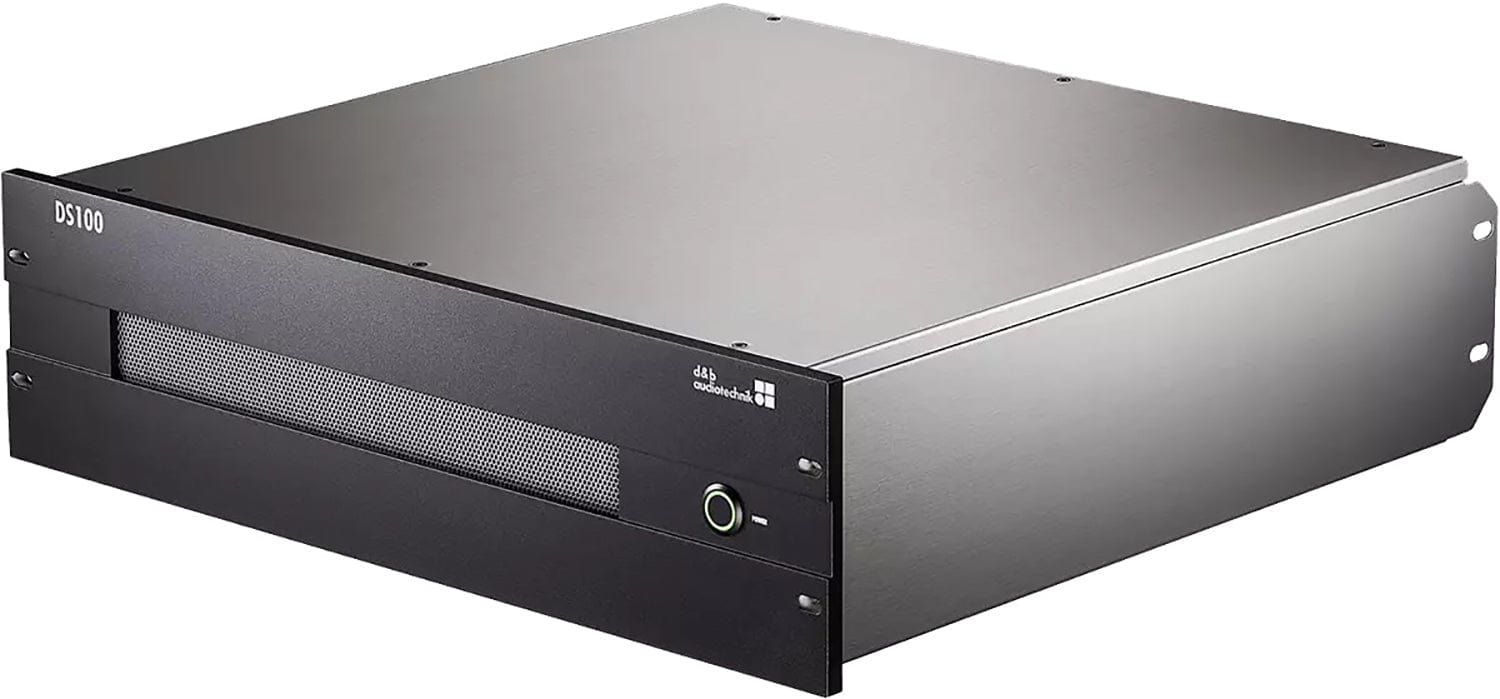

d&b audiotechnik DS100 Signal Engine
The DS100 Signal Engine is the hardware, a network-controlled and Dante-enabled DSP platform that provides comprehensive signal management within the familiar d&b Workflow. It comprises a 64 x 64 matrix, with delay and level control for all crosspoints and extensive signal processing at all inputs and outputs and supports sampling rates of 48 or 96 kHz. The DS100 Signal Engine is integrated in the operating concept of the d&b R1 Remote control software. This also includes grouping of parameters in remote views and storing of scenes in snapshots.
Advanced features within ArrayCalc and R1 simplify the integration of these matrix functions into d&b loudspeaker configurations. From configuring the DS10 Network bridge to preparing an output Dante patch for connecting the speakers. In addition, all functions of the matrix can be controlled via OSC, i. e. they can be remote controlled and automated via this standardized open source protocol for complex applications.
Why this product
Key Benefits
-
Distribution and routing of large channel counts to multiple locations across the network is achieved efficiently.
-
Seamless integration with the d&b DS10 Audio Network Bridge and the d&b Workflow.
-
Enhance the acoustic experience of an audio system in a way that matches the visual involvement of the audience, rather than hearing the sound from a loudspeaker that doesn’t fit with the physical location of the original sound source, or object.
-
A captivating, acoustically convincing, flexible, fast and easy to use multi-channel audio solution for creating soundscapes.
-
Increased creativity in the design process of loudspeaker systems, with the ability to recreate realistic sonic environments or an imaginative atmosphere for the audience.
-
Enhance the experience in performing arts and captivate the audience in conferences and worship.
-
A d&b Soundscape fits directly into the d&b system approach, guaranteeing the greatest consistency, maximum reliability and highest performance.
-
Improved interaction for artists between the creative process of live performance or pre-recorded material and the physics of sound reinforcement.
Technical details
Technical Specifications
System & Software
- Boot time
- Appr.: 45 sec.
- Sample rate for
- I/O 48/96 kHz
- EQ
- 8-band PEQ with high/low shelf
- Delay
- Up to 500 ms
- Mute
- On / Off
- Crosspoint Mute
- On / Off
- Crosspoint Level
- –120 dB ... +10 dB
- Crosspoint Delay
- Up to 500 ms
- EQ
- 16-band PEQ with high/low shelf
- Convolvers
- Up to 144
Audio Performance
- Gain
- –120 dB ... +24 dB
- Polarity
- 0 °/180 °
- Gain
- –120 dB ... +10 dB
- Impulse response length
- Up to 10 seconds
Control & Management
- Control
- Manual or external
- External control
- OCA/AES70 and OSC
Connectivity
- USB
- USB 3.0 port
- Inputs
- 64
- Outputs
- 64
- Input sources
- Up to 64
Power
- Mains connection
- IEC type socket
- Rated mains voltage
- 100 to 240 V, 50 – 60 Hz
- Nominal power
- 400 W
- Mains power switch
- Rocker switch on rear panel

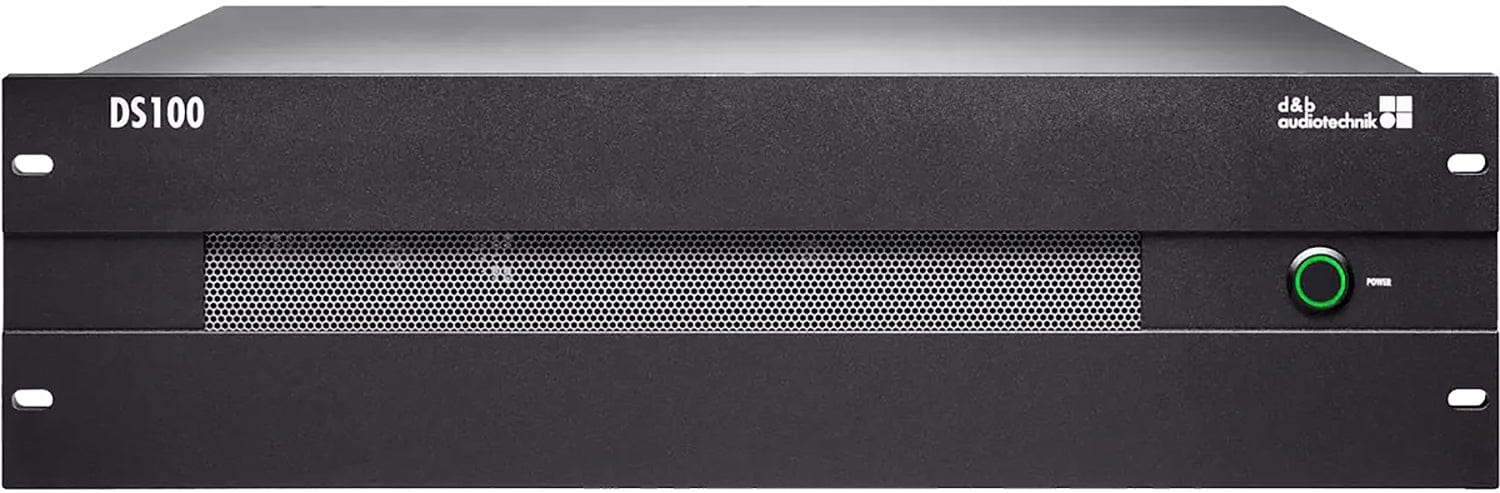

- POWER
- Push-button switch with integrated ring-LED indicator
Physical & Mounting
- Height x width x depth
- 3 RU x 19" x 481 mm (3 RU x 19" x 18.93")
- Weight
- 11.2 kg / 24.7 lb
General
- IP class
- IP20
- Positioning
- Static or dynamic (moving)
More details
Additional Information
Specifications:
- Power supply:
- Universal range switched mode power supply:
- Universal range switched mode power supply:
- Thermal and Environmental conditions:
- Operating temperature range:
- 0 °C to 50 °C
- 32 °F to 122 °F
- Storage temperature range:
- –20 °C to 70 °C
- –4 °F to 158 °F
- Operating humidity range (rel. non-condensed): 10% to 85%
- Storage humidity range (rel. non-condensed): 15% to 90%
- Operating temperature range:
- Fan noise emission:
- Idle (@ 22 °C / 71.6 °F): 36 dB(A)
- Full load (@ 22 °C / 71.6 °F): 42 dB(A)
- Full load (@ 50 °C / 122 °F): 54 dB(A)
- Dimensions and weight:

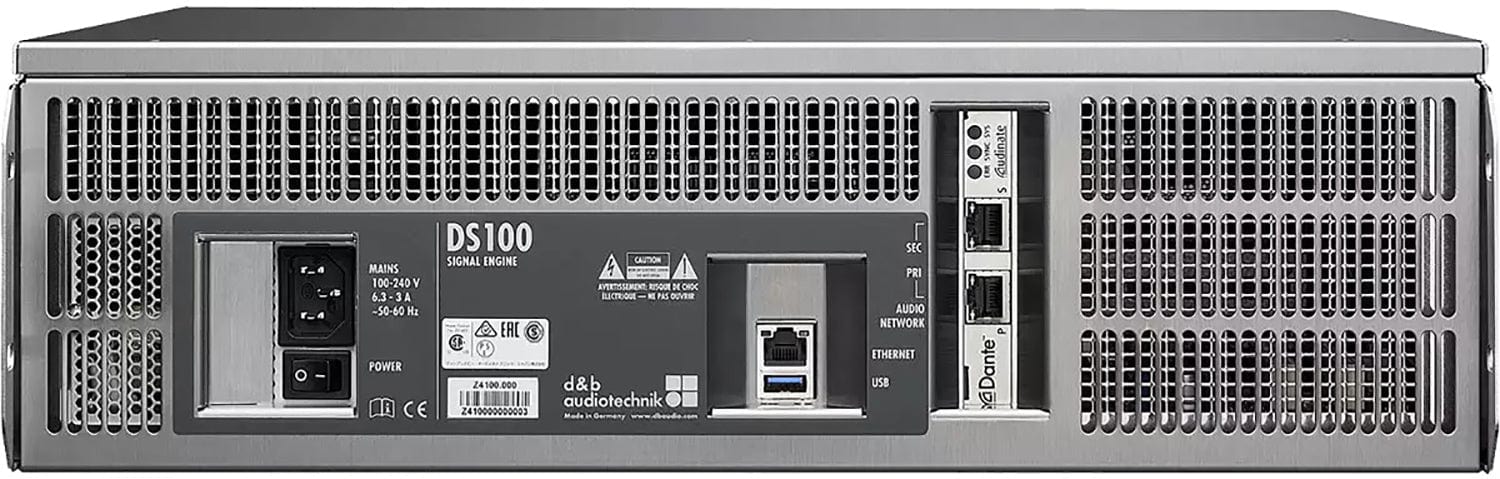

- Connections:
- ETHERNET:
- 1 x RJ 45
- LAN 100/1000 Mbps
- OCA/AES70
- OSC
- SNMP
- AUDIO NETWORK:
- Dante audio network/AES67
- 2 x RJ45 for Dante Primary/Secondary
- Gigabit only
- ETHERNET:
- Controls and indicators:
- I/O:
- Latency:
- Dante In to Out:
- < 1.4 ms @ 48 kHz
- < 1.6 ms @ 96 kHz
- plus Dante network latency
- Dante In to Out:
- Input processing:
- Matrix processing:
- Output processing:
- En-Scene:
- En-Space:
