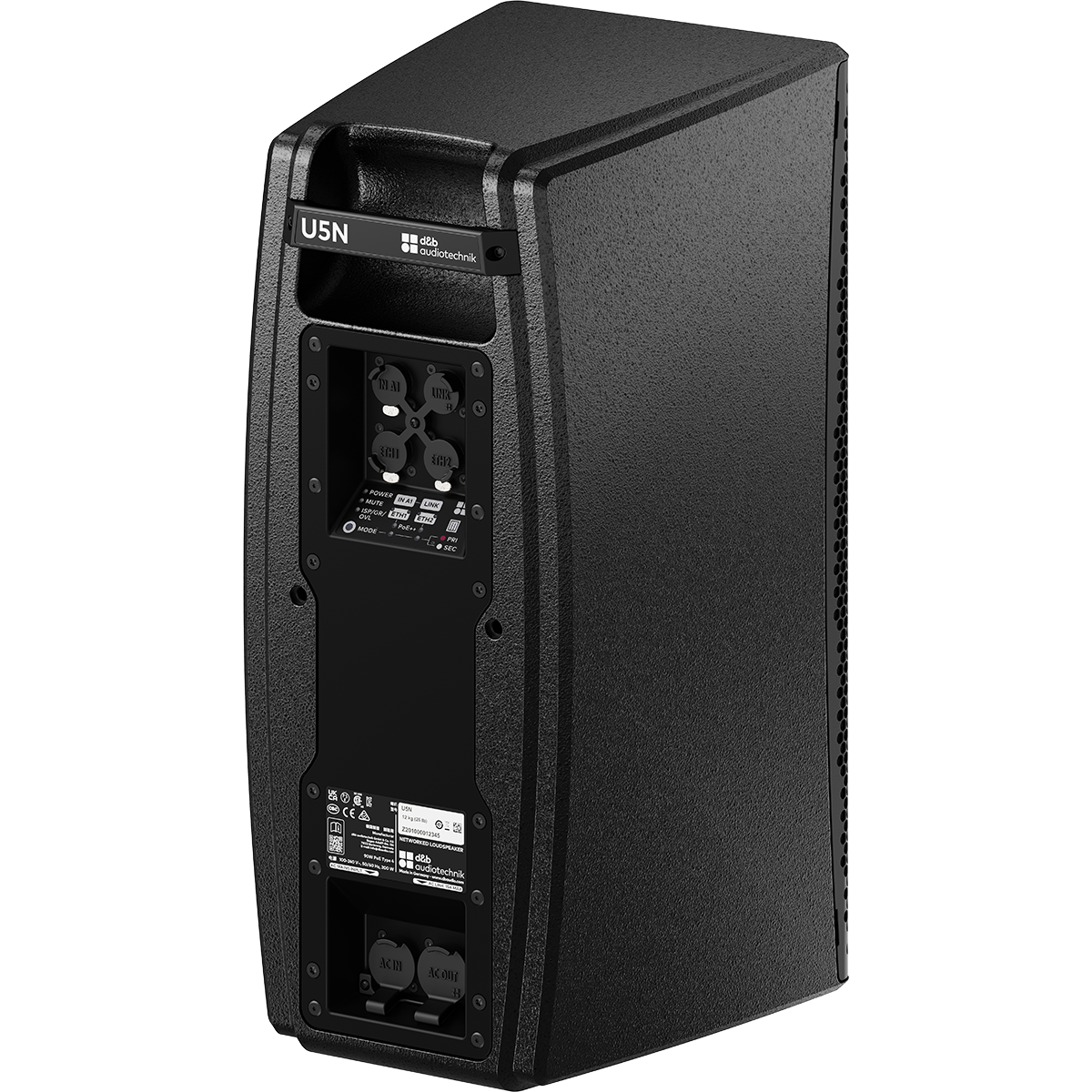

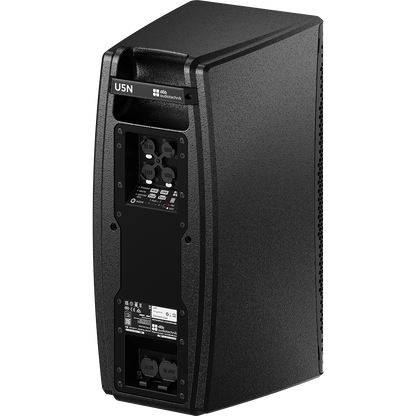

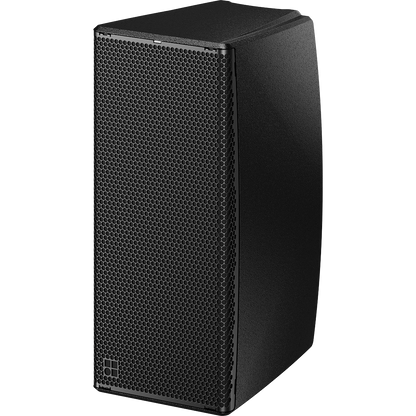

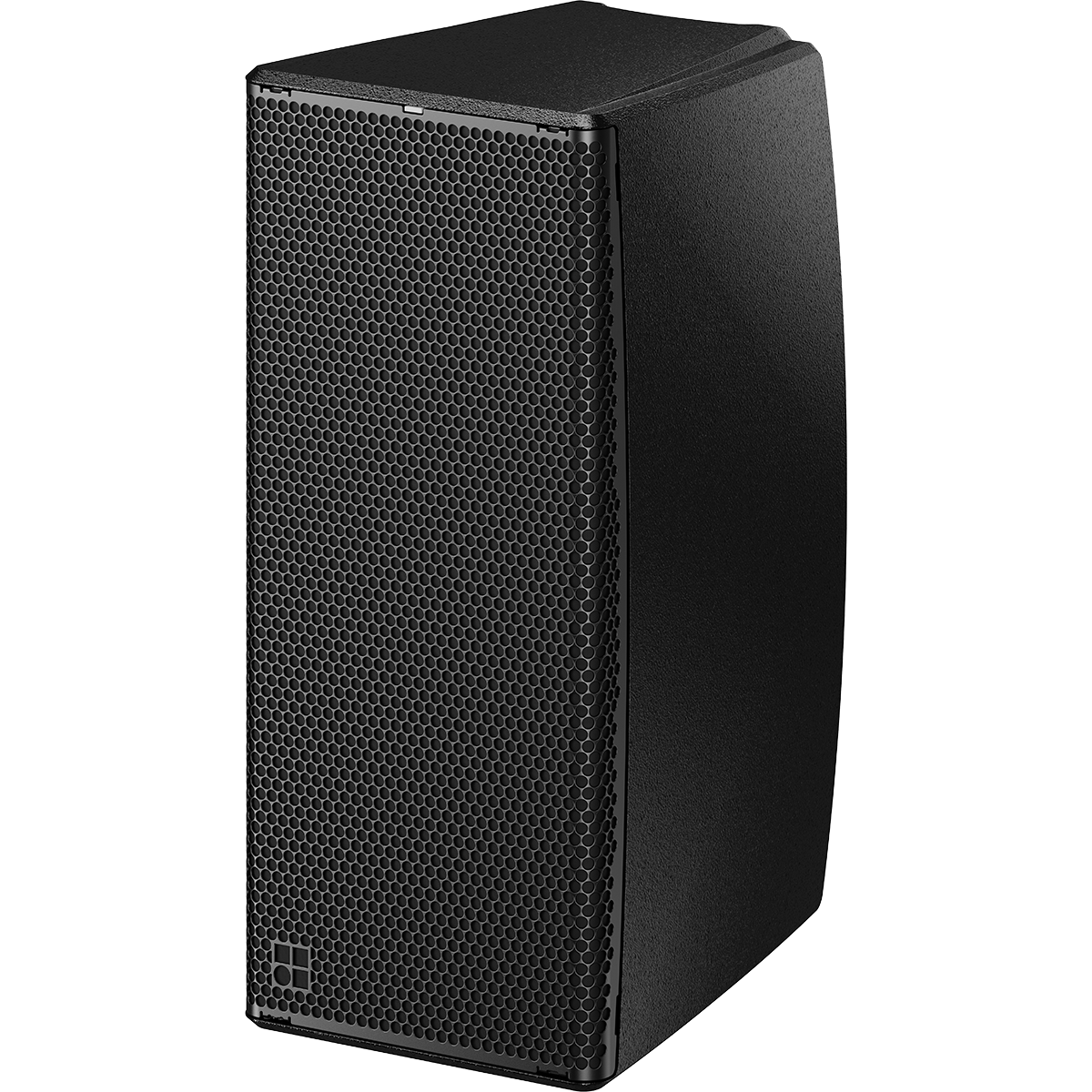

d&b audiotechnik U5N Loudspeaker
Model Z2010.000
Price on Request
Availability: In Stock
- Authorized d&b audiotechnik Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
d&b audiotechnik U5N Loudspeaker Networked 2-way Compact Dipole Loudspeaker
The d&b audiotechnik U5N delivers performance in a compact, versatile package.
It features dual 6.5" bipole drivers paired with a 1" compression driver mounted on a tool-free, 90° × 60° rotatable horn.
This loudspeaker uses advanced horn geometry and bass‑reflex ports to extend LF response to 55 Hz (−5 dB), while maintaining 60° vertical directivity from 500 Hz and consistent 90° horizontal dispersion.
The loudspeaker features a hybrid power topology, running on AC, PoE++, or both simultaneously, with single‑cable operation carrying power, signal, control, and monitoring, while dual‑cable redundancy (2× PoE++ + 2× Milan) supports mission‑critical installations and ensures compatibility with the DN2 Milan PoE++ switch or equivalent third‑party PoE++ hardware.
Why this product
Key Benefits
-
Components 2 x 6.5" / 1"
-
Dispersion 90° x 60° rotatable
-
SPLmax 133 dB
-
Weight 12 kg / 26.5 lb
Technical details
Technical Specifications
System
- Components
- 2 x 6.5" driver with neodymium magnet, 1 x1" exit HF compression driver with 1.7" coil, Rotatable CD horn
- Equalizer
- 2 user definable 16-band equalizer
- Delay
- 1.1 ms to 1 sec.
Frequency
- Frequency response (-5 dB standard)
- 58 Hz - 17 kHz
- Frequency response (-5 dB CUT mode)
- 105 Hz - 17 kHz
- Frequency generator
- Pink noise or sine wave 10 Hz to 20 kHz
Performance & Coverage
- Max. sound pressure
- 133 dB
- Nominal dispersion angle (h x v)
- 90° x 60°
Power
- Mains connector
- powerCON TRUE1 TOP In and Thru
- Power supply
- Switched mode power supply with automatic mains range selection and active Power Factor Correction (PFC)
- Rated mains voltage
- 100 - 240 V, 50 - 60 Hz
Connectivity
- Latency analog input
- 1.1 ms
- INPUT ANALOG
- 3 pin XLR female
- ANALOG LINK
- 3 pin XLR male, parallel to input
- Network Connection
- 2 x RJ 45 (etherCon)
- Network Switch
- integrated 2-port, 100 Mbit/1 Gbit
Physical
- Dimensions (h x w x d)
- 20 x 8.8 x 11.6", 509 x 223 x 295 mm
- Weight
- 26.5 lb, 12.0 kg
General
- ETH1/PRI
- Milan, Remote control via R1 star topology
- ETH2/SEC
- Milan redundancy only, no remote control star topology
More details
Additional Information
Specifications:
- Frequency response (-10 dB standard, IEC60268): 52 Hz - 18 kHz
- Frequency response (-10 dB CUT mode, IEC60268): 75 Hz - 18 kHz
- MILAN INPUT: 1 stream with up to 8 channels @ 48/96 kHz
