d&b audiotechnik XSLi12 Loudspeaker
Model Z0777.000
Price on Request
Availability: In Stock
- Authorized d&b audiotechnik Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

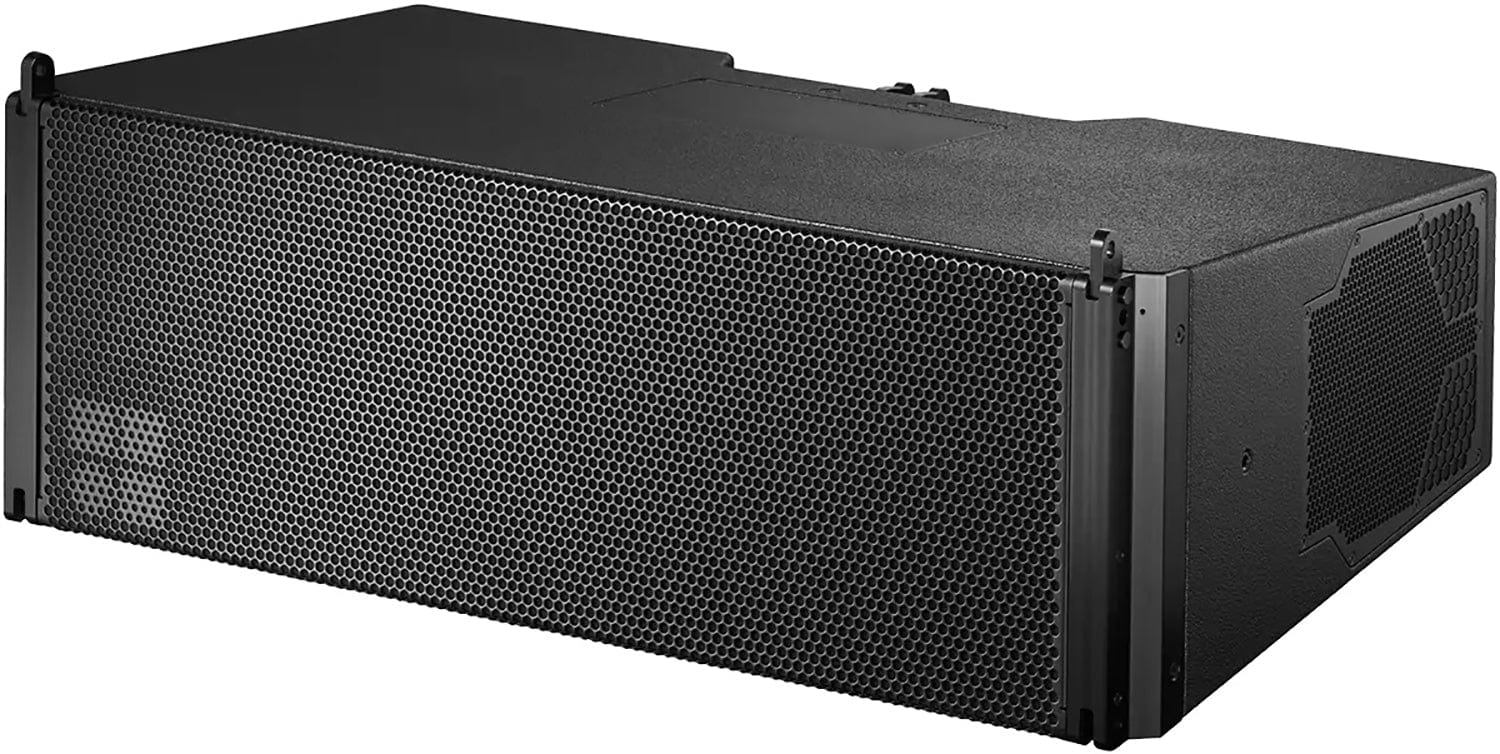

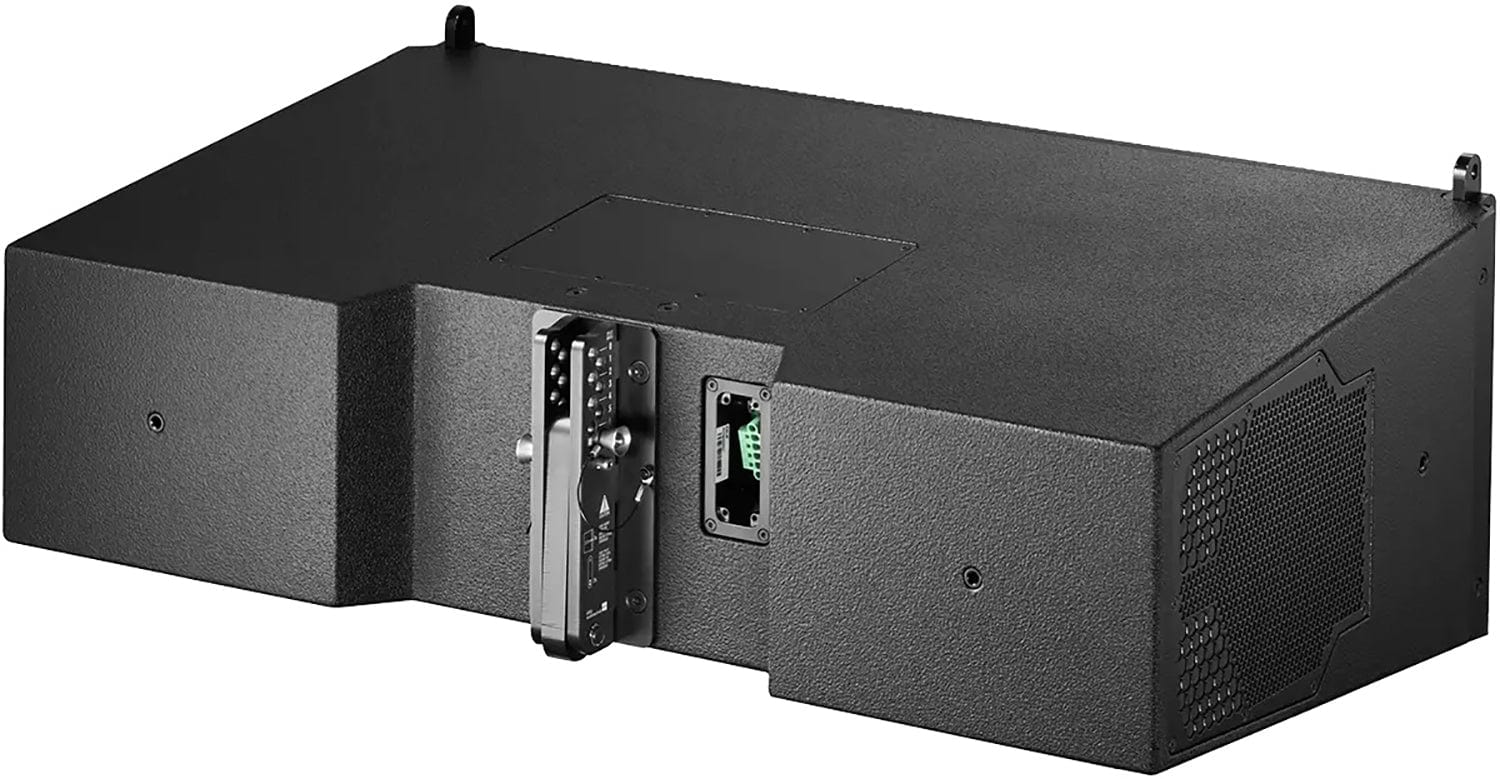

d&b audiotechnik XSLi12 Loudspeaker Install Specific Medium Format 3-way Line Array Loudspeaker
The XSLi12 is a purpose-built installation line array module, tailored for small to medium sound reinforcement projects. It also serves as fill or delay in KSLi Systems. A specialized version, the XSLi12 SVS, is designed specifically for stadium use with custom rigging options, offering the same performance in a weatherproof IP55-rated enclosure. Available in Special Color (SC) and Weather Resistant (WR) versions.
The d&b audiotechnik XSLi12 Loudspeaker is available in black or white.
Why this product
Key Benefits
-
Designed for small to medium sound reinforcement, or as fill/delay in larger KSLi Systems
-
SVS version with IP55 enclosure for permanent outdoor stadium applications
-
Flexible flying options: Up to 24 cabinets with XSLi Flying Frame or 12 cabinets with XSLi Mounting Frame
-
Two 8” neodymium forward-facing LF drivers, two 6.5” side-firing LF drivers, one 6.5” MF driver, and two 1” HF compression drivers
-
Patented arrangement provides seamless directivity control from low frequencies to above 18 kHz
-
Can link two cabinets in Line or Arc mode for smaller arrays without Array Processing
-
Weather-protected, impact-resistant 2K finish with metal grills backed by acoustically transparent water-repellent fabric
-
Dedicated d&b amplifier channels for active driving and precise processing functions
Technical details
Technical Specifications
System
- LF Nominal Diameter
- 2x 8" + 2x 6.5"
- MF Nominal Diameter
- 6.5"
- HF Nominal Diameter
- 2x 1"
Frequency
- Frequency Range
- 60 Hz - 18 kHz
Performance & Coverage
- Dispersion Angle
- 120°
- Maximum SPL
- 140 dB
Power
- Loudspeaker Nominal Impedance
- Front LF: 8 Ohms, Side LF/MF/HF: 8 Ohms
More details
Additional Information
Specifications:
- Loudspeaker Power Capacity (RMS/peak 10 ms): Front LF: 400/1200 W, Side LF/MF/HF: 300/850 W
