Product details
Overview
d&b audiotechnik E12X 12-Inch Passive Subwoofer - Weather-Resistant

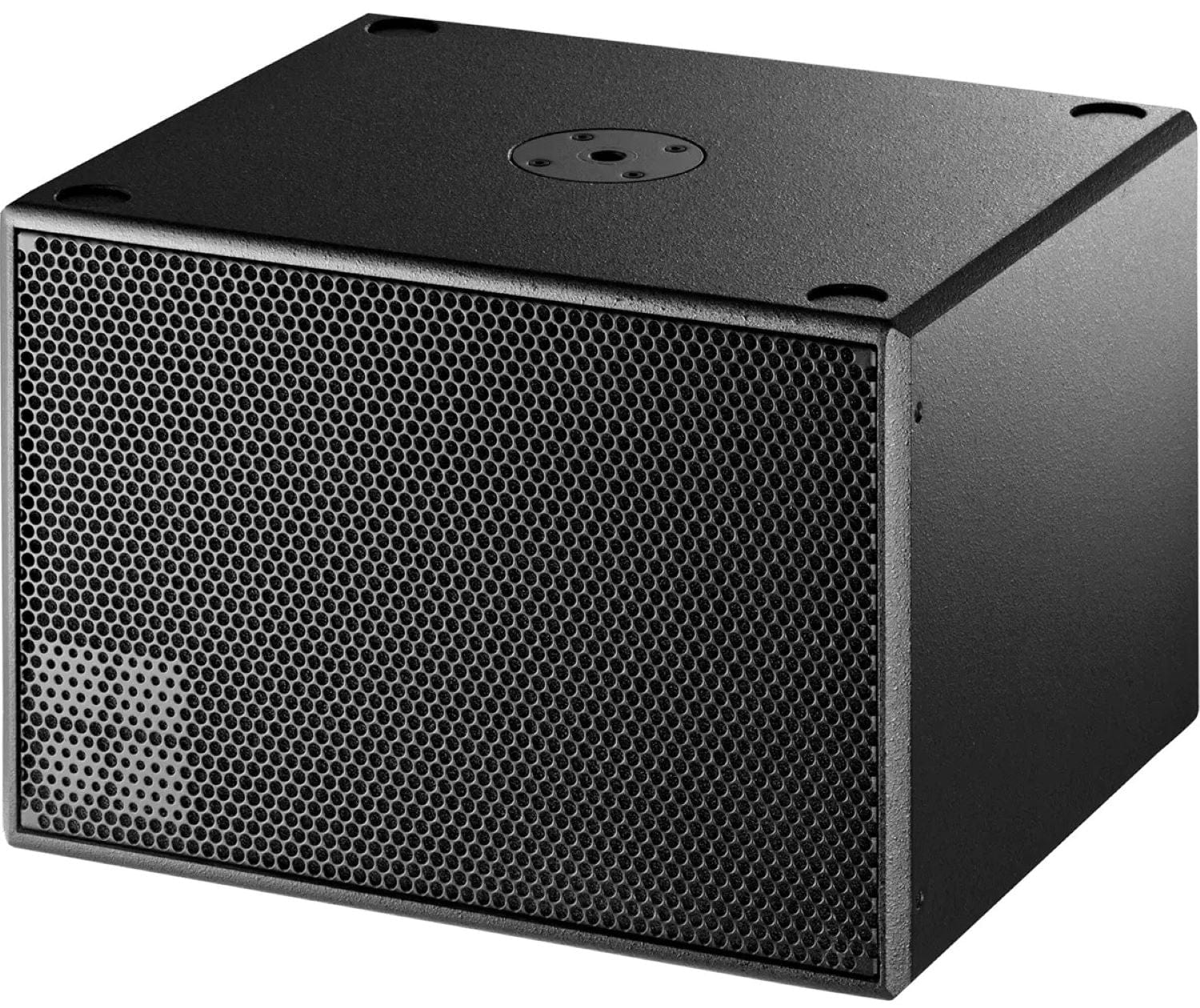

The E12X-SUB is a compact, lightweight, high performance subwoofer for use with d&b E-Series loudspeakers. The built in passive crossover network allows the E12X-SUB to be operated in parallel to the E8 loudspeaker on the same amplifier channel, greatly extending the low frequency headroom and bandwidth of the systems. Alternatively it can be operated actively driven by its own amplifier channel without the need for any changes to the subwoofer. In Active mode the E12X-SUB can be used to supplement any of the E-Series cabinets. The E12X-SUB cabinet is constructed from marine plywood and has an impact resistant finish, a handle and an M20 threaded flange on the top to accept the d&b Loudspeaker stand winder M20. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.
Why this product
Key Benefits
-
Components 12″
-
Dispersion Omni directional
-
SPL max 127 dB
-
Weight 18 kg / 40 lb
Technical details
Technical Specifications
System
- Configuration
- Compact subwoofer
- Components
- 12" driver
Frequency
- Frequency response (-5 dB standard)
- 45 Hz - 100 Hz
- Frequency response (–5 dB 140 Hz mode)
- 45 Hz - 140 Hz
Power
- Cabinets per amplifier channel
- 2
- Nominal impedance
- 8 Ω
- Power handling capacity (RMS/peak 10 ms)
- 300/1600 W
General
- with 10D
- 124 dB
- with D20/5D/30D
- 127 dB
- with D40/D80/40D
- 127 dB
More details
Additional Information
Specifications:
- System data:
- Max. sound pressure:
- Max. sound pressure:
- Loudspeaker data:
- Connections:
- Faston connector type 2
- Connections:
- Dimensions / weight:
- Dimensions (H x W x D):
- 358 x 530 x 448 mm
- 14.1 x 20.9 x 17.6"
- Weight:
- 18 kg
- 40 lb
- Dimensions (H x W x D):
