d&b audiotechnik E6 6.5-Inch Passive Loudspeaker - Weather-Resistant

Model Z0350-100

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Authorized d&b audiotechnik Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

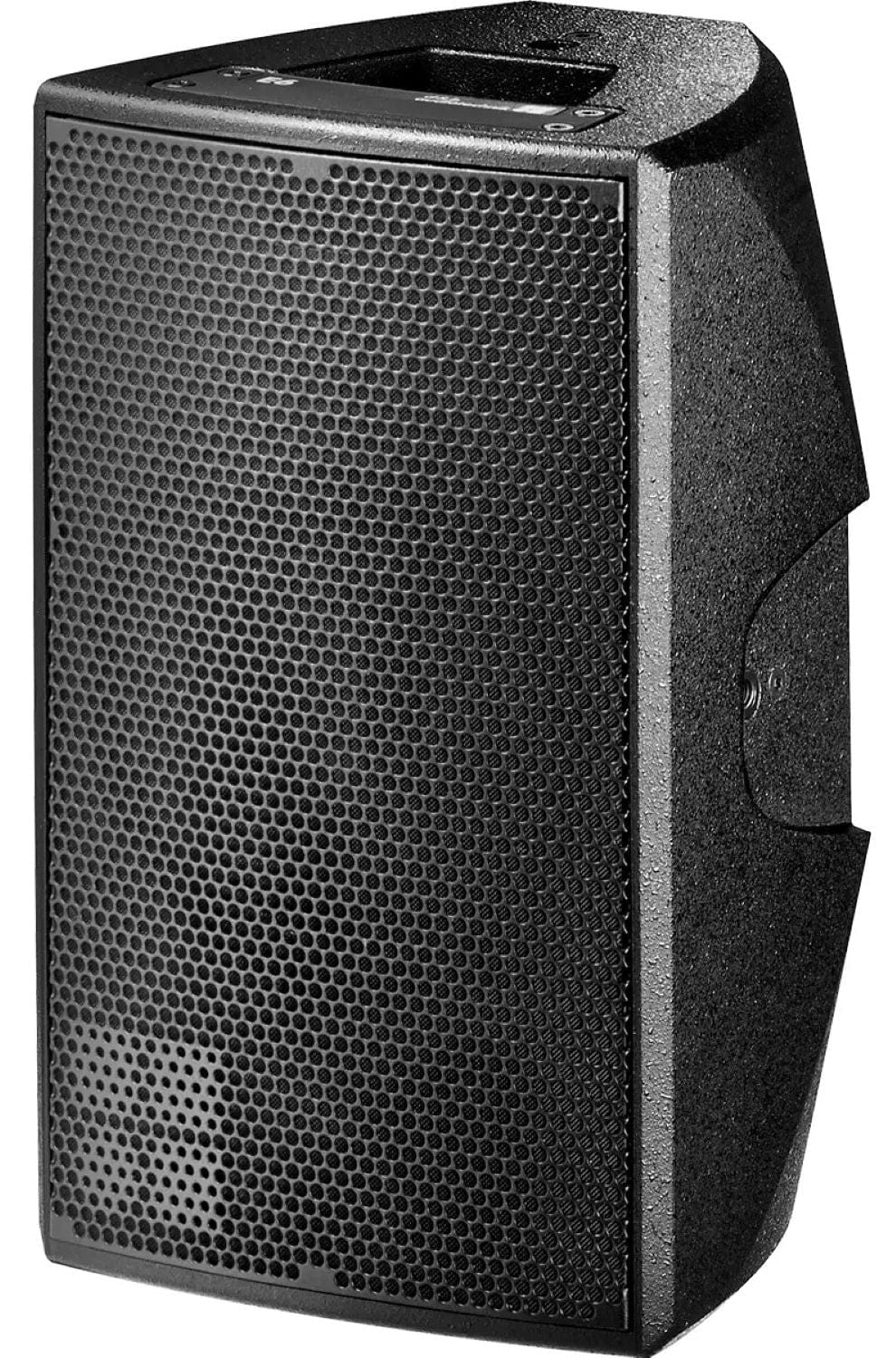

d&b audiotechnik E6 6.5-Inch Passive Loudspeaker - Weather-Resistant

The E6 is a relatively small high performance multipurpose loudspeaker, employing an integrated coaxial driver. The horn with its 100° x 55° dispersion pattern can easily be rotated through 90° providing a 55° x 100° pattern without the use of tools. This enables deployment of the loudspeaker either vertically or horizontally. Its distinctive cabinet design and extensive range of accessories allow easy deployment in almost any situation, including stage monitoring. It provides a very compact reinforcement solution that inspires through its sound quality and is also perfectly compatible with the larger E8 and E12 loudspeakers. With the addition of an E12X subwoofer or any other E-Series subwoofer it can also reproduce high level music program. The E6 cabinet has an impact resistant paint finish incorporating a handle. The loudspeaker cabinet is also available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP54 rating, and enables operation of loudspeakers in changing ambient conditions. Both options are supplied with metal plates in the specified colour covering the handle recesses and loudspeaker stand socket.

Why this product

Key Benefits

  • Components 6.5″/1″

  • Dispersion 100° x 55° rotatable

  • SPLmax 123 dB

  • Weight 5 kg / 11 lb

Technical details

Technical Specifications

Frequency

Frequency response (–5 dB standard)
85 Hz – 20 kHz
Frequency response (–5 dB CUT mode)
120 Hz – 20 kHz

Performance & Coverage

Input level (100 dB-SPL/1 m)
–11 dBu
Nominal dispersion angle (hor. x vert.)
.100° x 55°

Power

Nominal impedance
20 ohms

Physical

Weight
5.0 kg (11 lb)

More details

Additional Information

Specifications:

  • System data:
    • Max. sound pressure (1 m, free field) E6 with D12: 123 dB
    • Max. sound pressure (1 m, free field) E6 with D6 or E-PAC: 120 dB (SPLmax peak, pink noise test signal with crest factor of 4)
  • Loudspeaker data:
    • Power handling capacity (RMS / peak 10 ms): .150/800 W
    • Components:
      • 6.5“ driver with neodymium magnet
      • coaxial 1” exit compression driver with 1.75“ coil and rotatable CD horn
      • Passive crossover network
    • Connections:
      • Faston connector type 2
