Product details
Overview

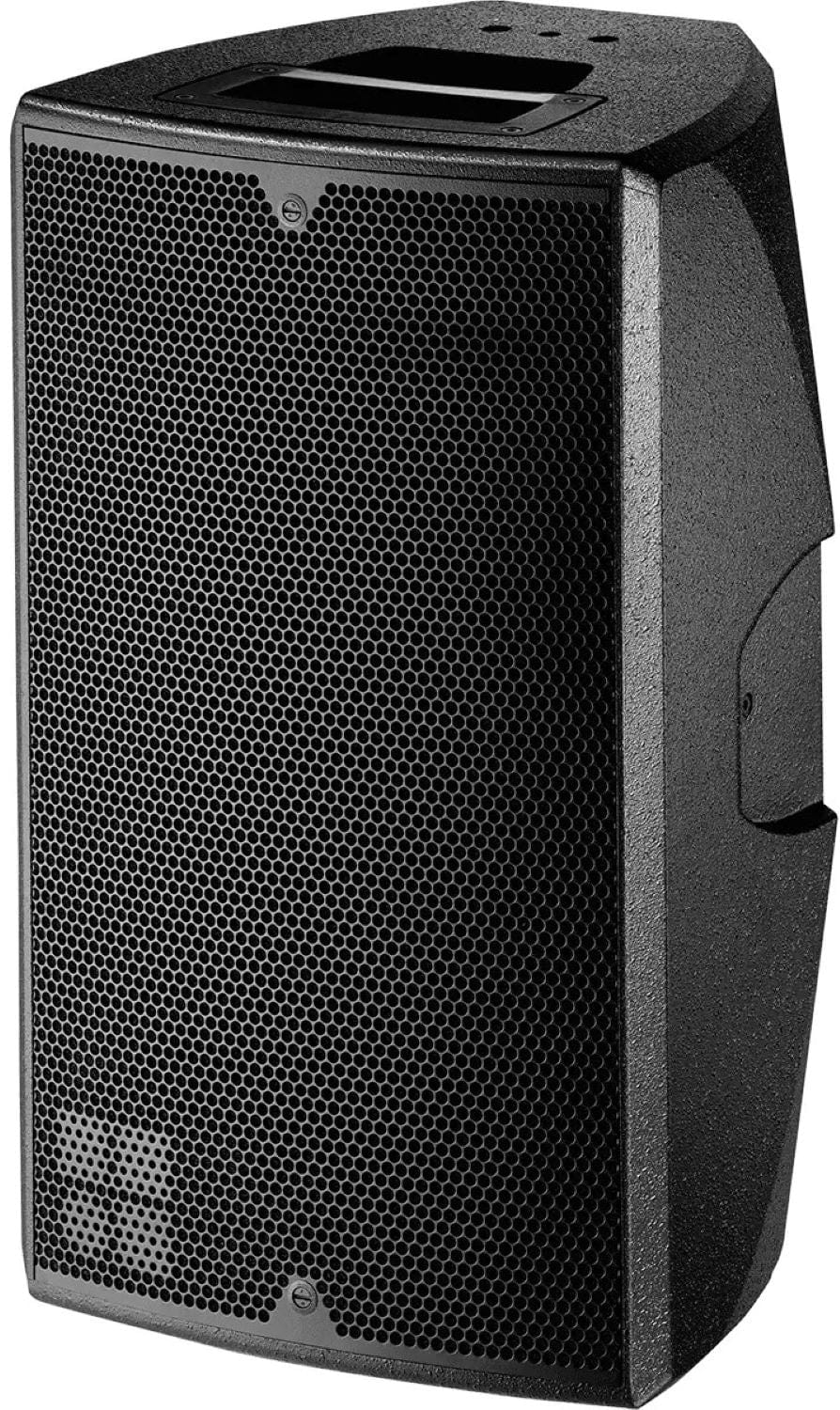

d&b audiotechnik E12-D 12-Inch Passive Loudspeaker - Weather-Resistant
E12-D is high performance multipurpose loudspeakers employing an integrated 12"/1.3" exit coaxial driver design with neodymium magnet and constant directivity horn loading. It is available in two different dispersion versions, the E12 providing a 80° x 50° dispersion pattern (hor. x vert.), the E12-D a wider 110° x 50° pattern. Both horns can easily be rotated through 90° without the use of tools, providing 50° x 80° or 50° x 110° dispersion patterns.
Weather resistant (WR): This option is suitable for outdoor use. The cabinets have an impact and weather protected black PCP (Polyurea Cabinet Protection) finish.
WR cabinets are equipped with a recessed connector panel including a Faston type connector (2 x 6.3 mm, female). A cover plate which accepts single or dual PG cable glands (Type PG13.5 for cable diameters from 6 - 12 mm) is enclosed.
Technical details
Technical Specifications
System
- Components
- 12“ driver with neodymium magnet coaxial 1.3” exit compression driver with 3“ coil and rotatable CD horn Passive crossover network
Frequency
- Frequency response (–5 dB standard)
- 50 Hz – 18 kHz
- Frequency response (–5 dB CUT mode)
- 100 Hz – 18 kHz
Performance & Coverage
- Input level (100 dB-SPL/1 m)
- –17 dBu
- Nominal dispersion angle (hor. x vert.)
- 80° x 50°, 110° x 50°
Power
- Nominal impedance
- 8 ohms
- Power handling capacity (RMS/peak 10 ms)
- 300/1600 W
Physical
- Weight
- 16 kg (35 lb)
General
- E12/E12-D with D6
- 131/130 dB
- E12/E12-D with D12
- 134/133 dB
More details
Additional Information
Specifications:
- System data:
- Max. sound pressure (1 m, free field):
- Max. sound pressure (1 m, free field):
- Loudspeaker data:
-
Connections:
- Faston connector type 2
