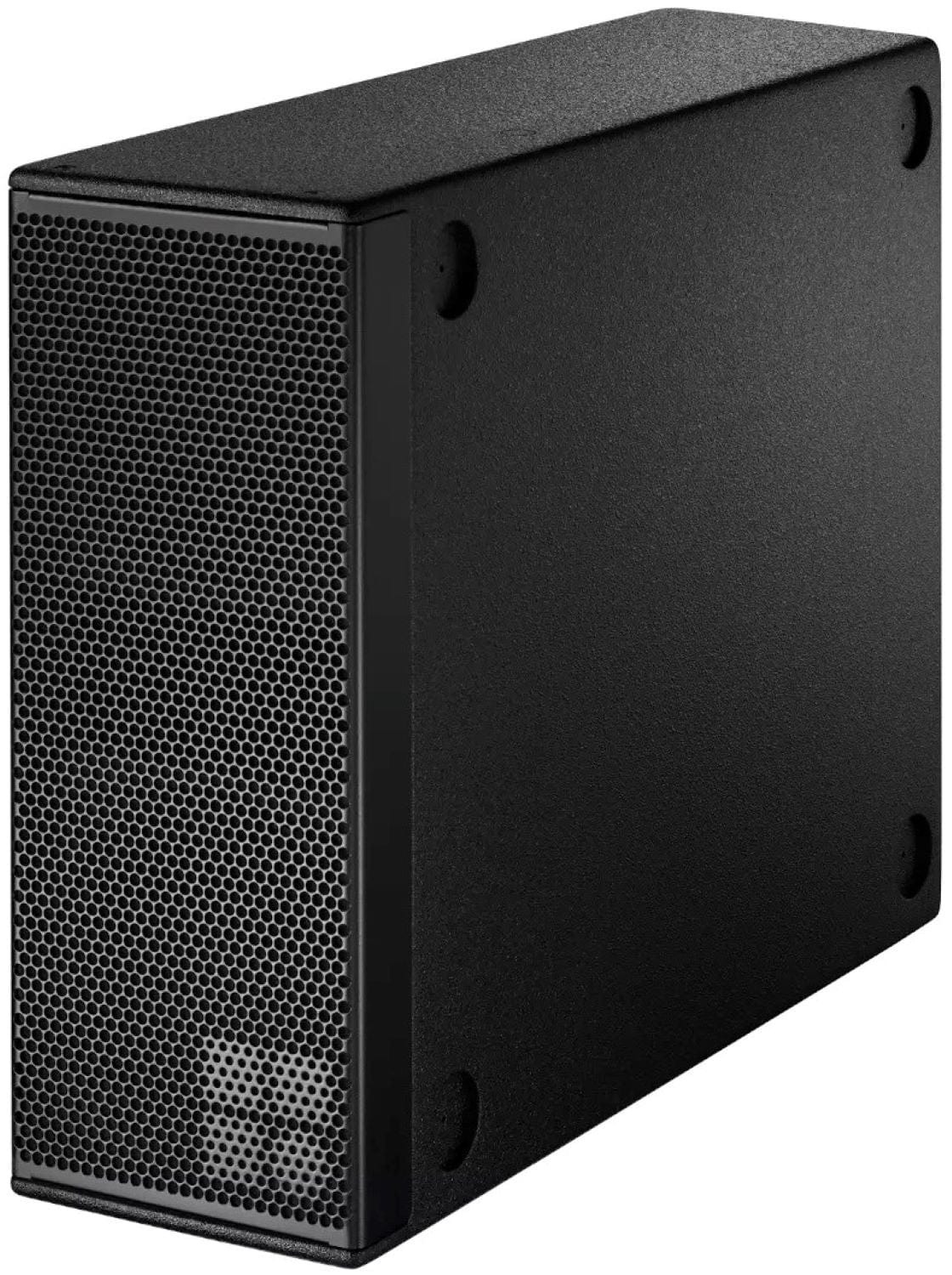

d&b audiotechnik Bi8-SUB 2x 6.5-Inch Passive Subwoofer - Weather-Resistant

d&b audiotechnik Bi8-SUB 2x 6.5-Inch Passive Subwoofer - Weather-Resistant

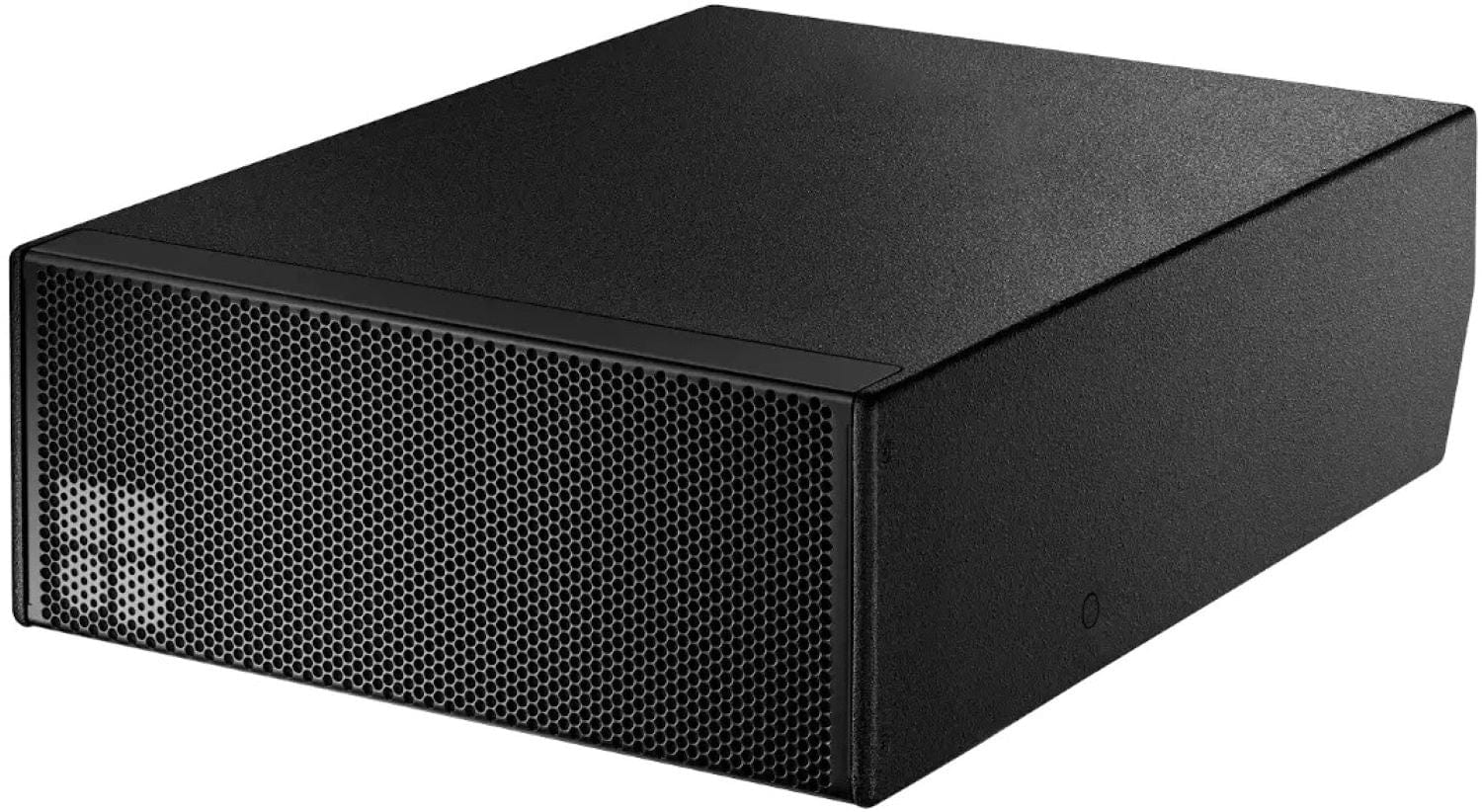

The Bi8-SUB is an ultra compact subwoofer that pairs with the established d&b xC, xS and E-Series loudspeakers. The Bi8-SUB is the installation version of the B8 subwoofer and differs only in cabinet construction and mounting hardware. The Bi8-SUB features two 6.5” drivers housed within a bass-reflex cabinet design. Its low height (170 mm) makes it an ideal solution for small scale applications that require an extended low frequency response while still achieving high Sound Pressure Levels. The frequency response extends from 43 Hz to 170 Hz. When operating in 100 Hz mode, the upper operating frequency of the subwoofer is reduced from 170 Hz to 125 Hz.

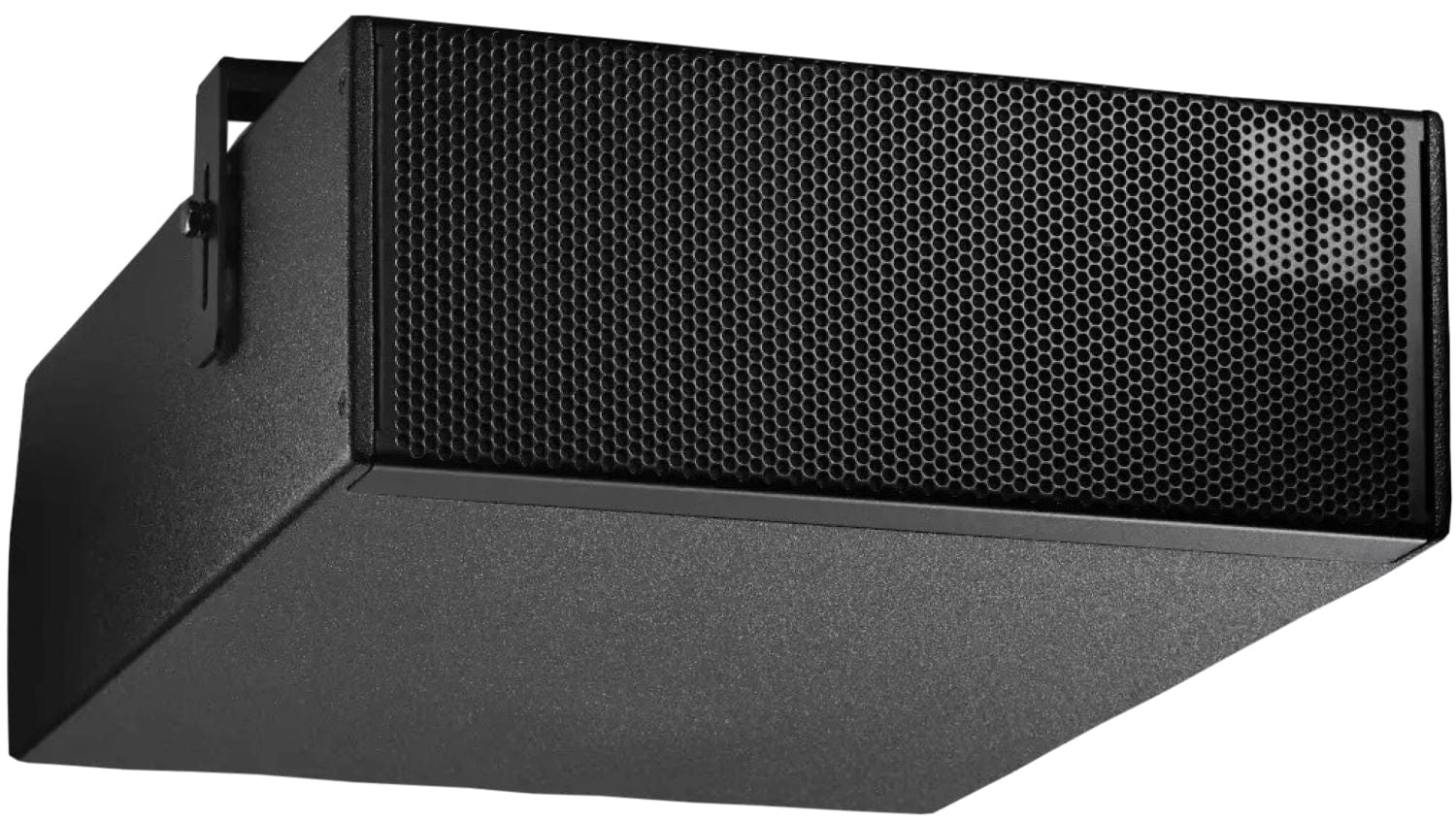

The Bi8-SUB can be flown either horizontally or vertically. Two M8 threaded inserts are incorporated, one on each side panel to allow the attachment of a dedicated flying bracket.

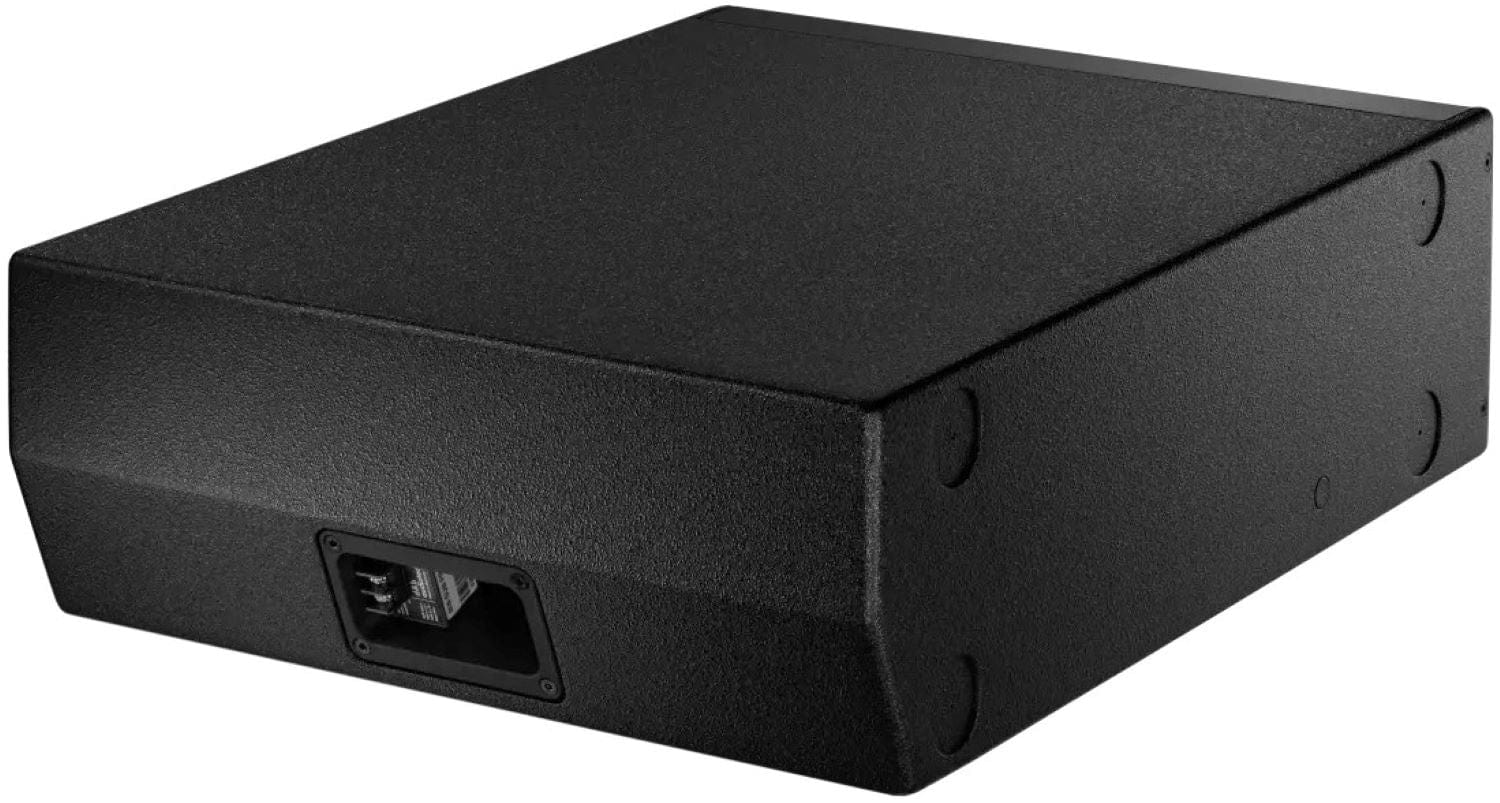

The enclosure is constructed from marine plywood with an impact resistant black paint finish. The front of the cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The rear panel incorporates two NL4 connectors and a two pole screw terminal block. The Bi8-SUB is also available in Special Colour (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP55 rating and enables operation of loudspeakers in changing ambient conditions.

Weather resistant (WR): This option is suitable for outdoor use. The cabinets have an impact and weather protected black PCP (Polyurea Cabinet Protection) finish. WR cabinets are equipped with a recessed connector panel including a Faston type connector (2 x 6.3 mm, female). A cover plate which accepts single or dual PG cable glands (Type PG13.5 for cable diameters from 6 - 12 mm) is enclosed, as shown in the graphic opposite.
