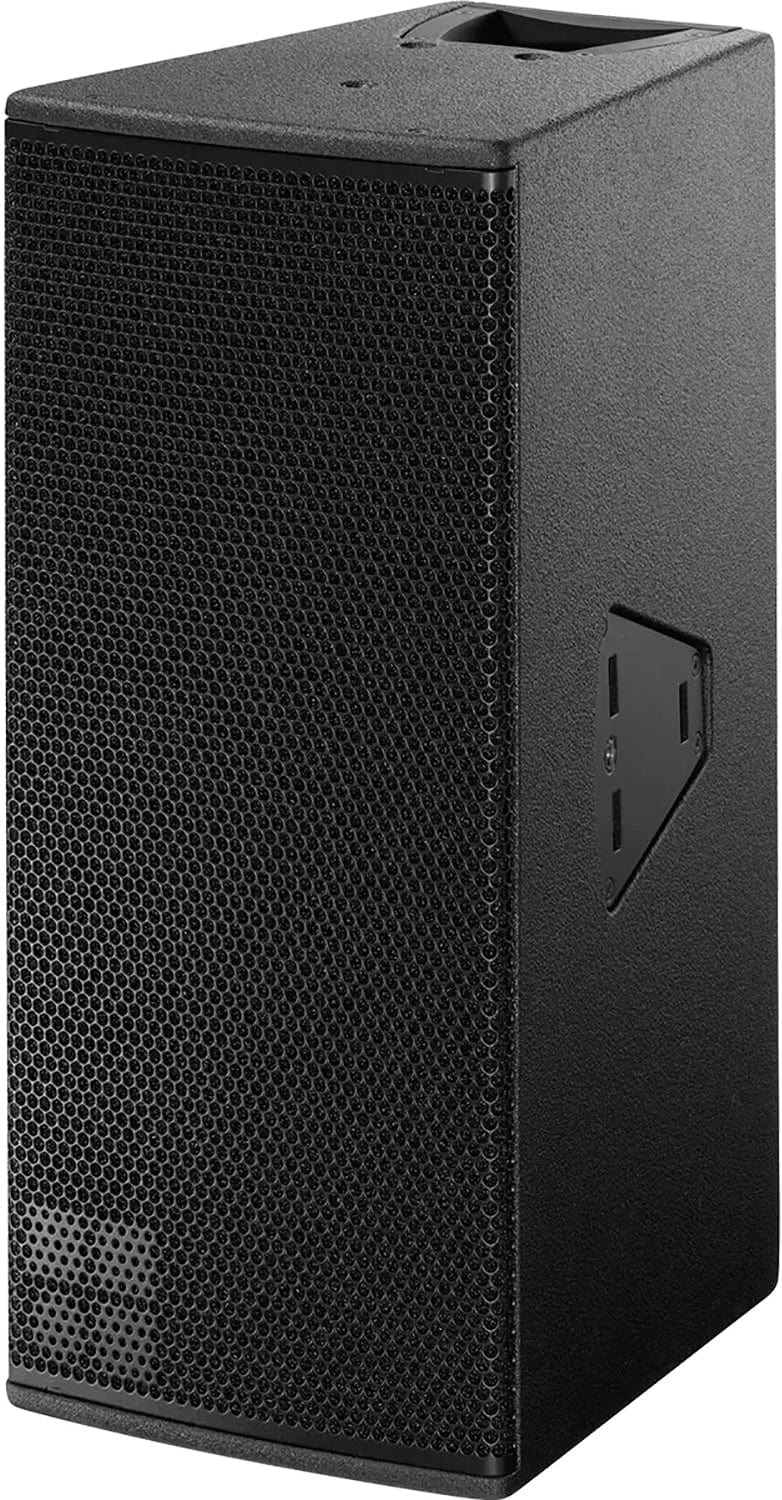

d&b audiotechnik Y10P Loudspeaker with NLT4 F/M Connections

d&b audiotechnik Y10P Loudspeaker with NLT4 F/M Connections

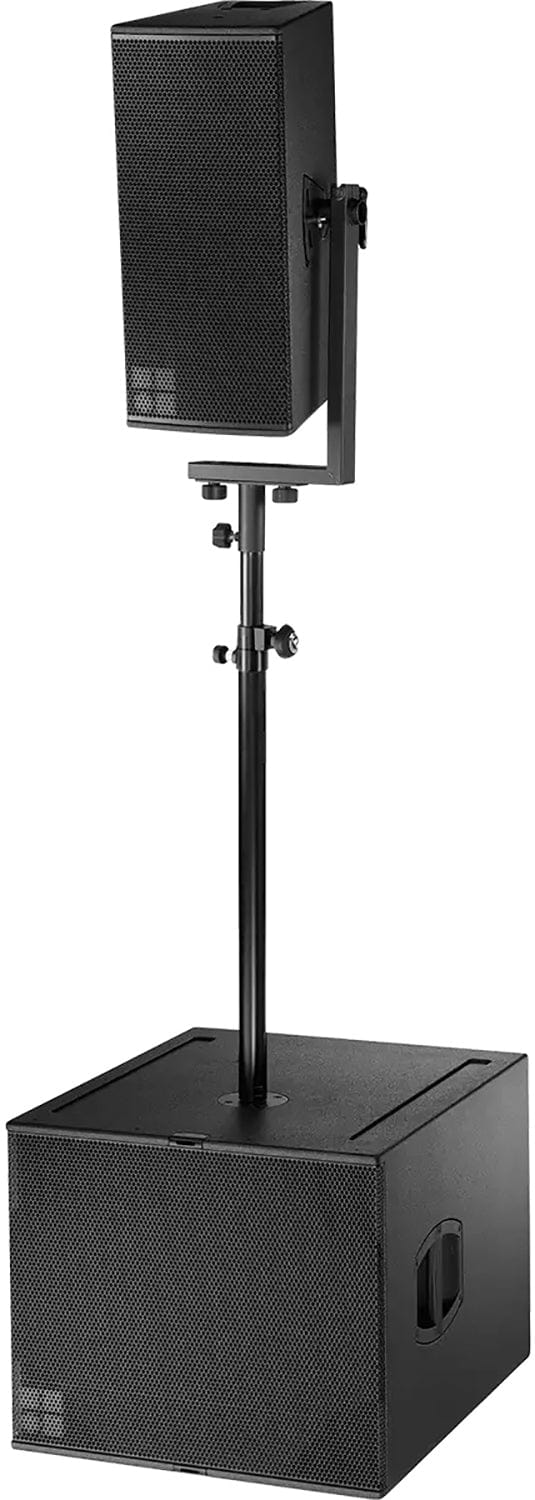

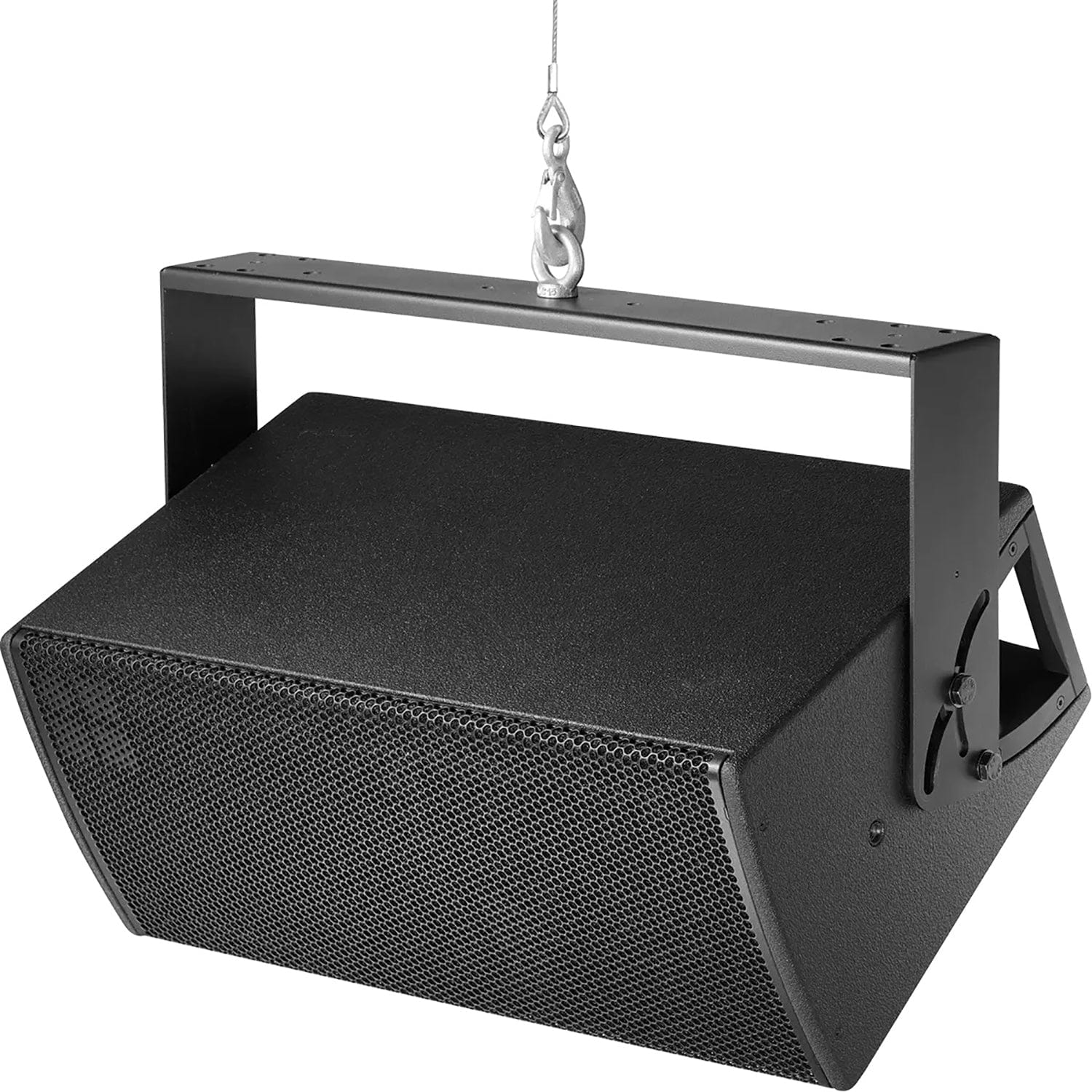

The compact, 2-way passive Y10P loudspeaker features two 8” drivers in a dipole arrangement with a 1.4” compression driver mounted onto a rotatable CD horn. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These point source, high performance cabinets offer 110° horizontal directivity controlled down to 500 Hz, matched with a vertical dispersion of 40°. The horn can be rotated by 90° to enable horizontal orientation. The Y10P provides a broad variety of deployment possibilities, especially when used as a stand-alone full range system, or combined with other elements from the Y-Series, either ground stacked or flown. The loudspeaker cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The cabinet incorporates a pair of handles whilst M10 threaded inserts are provided for attaching d&b rigging hardware. Additionally, two further M10 sockets accept the 8mm load pin to expand the mounting options.
