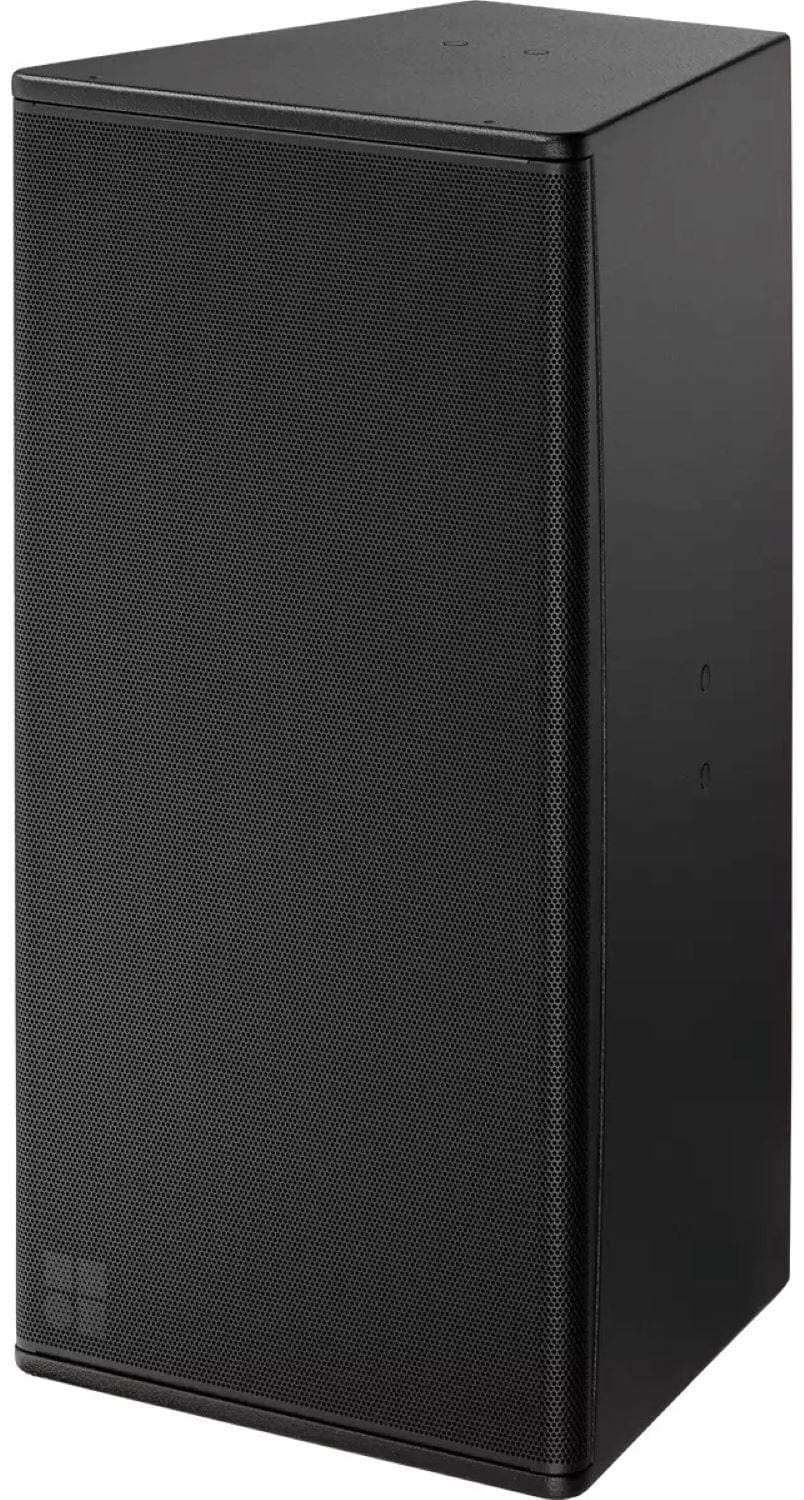

d&b audiotechnik 24S 2x 12-Inch Passive Loudspeaker - Weather-Resistant

d&b audiotechnik 24S 2x 12-Inch Passive Loudspeaker - Weather-Resistant

The 24S is a high performance full range 2-way passive loudspeaker housing two 12” drivers in a bass-reflex enclosure with a 1.4” exit compression driver mounted onto a large rotatable CD horn, intended for a wide range of permanently installed applications. The dipolar arrangement of the 12” drivers results in directivity control down to approximately 500 Hz in the same plane as the dipole. The specially designed ports with optimized flow characteristics and a large cabinet volume provide a significant low frequency reproduction. With a frequency response extending from 55 Hz to 18 kHz, the 24S can be used as a stand-alone, full range system, or supplemented with d&b subwoofers. It can be ground stacked or flown individually. The rotatable HF horn can be rotated by 90° to enable horizontal orientation. The loudspeaker cabinet is constructed from marine plywood, and has an impact resistant paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill. The top, bottom and both side panels each incorporate a pair of M10 threaded inserts for attaching d&b rigging hardware. The loudspeakers are Ball Impact Resistant according to DIN 18032-3 for sports and multipurpose halls. The Weather Resistant (WR) option provides an IP55 rating that enables the operation of loudspeakers in changing ambient conditions, and features a fixed cable.

WR cabinets are equipped with a recessed connector panel including a Faston type connector (2 x 6.3 mm, female). A cover plate which accepts single or dual PG cable glands (Type PG13.5 for cable diameters from 6 - 12 mm) is enclosed, as shown in the graphic opposite.
