d&b audiotechnik 12S 12-Inch Passive Loudspeaker - Weather-Resistant

d&b audiotechnik 12S 12-Inch Passive Loudspeaker - Weather-Resistant

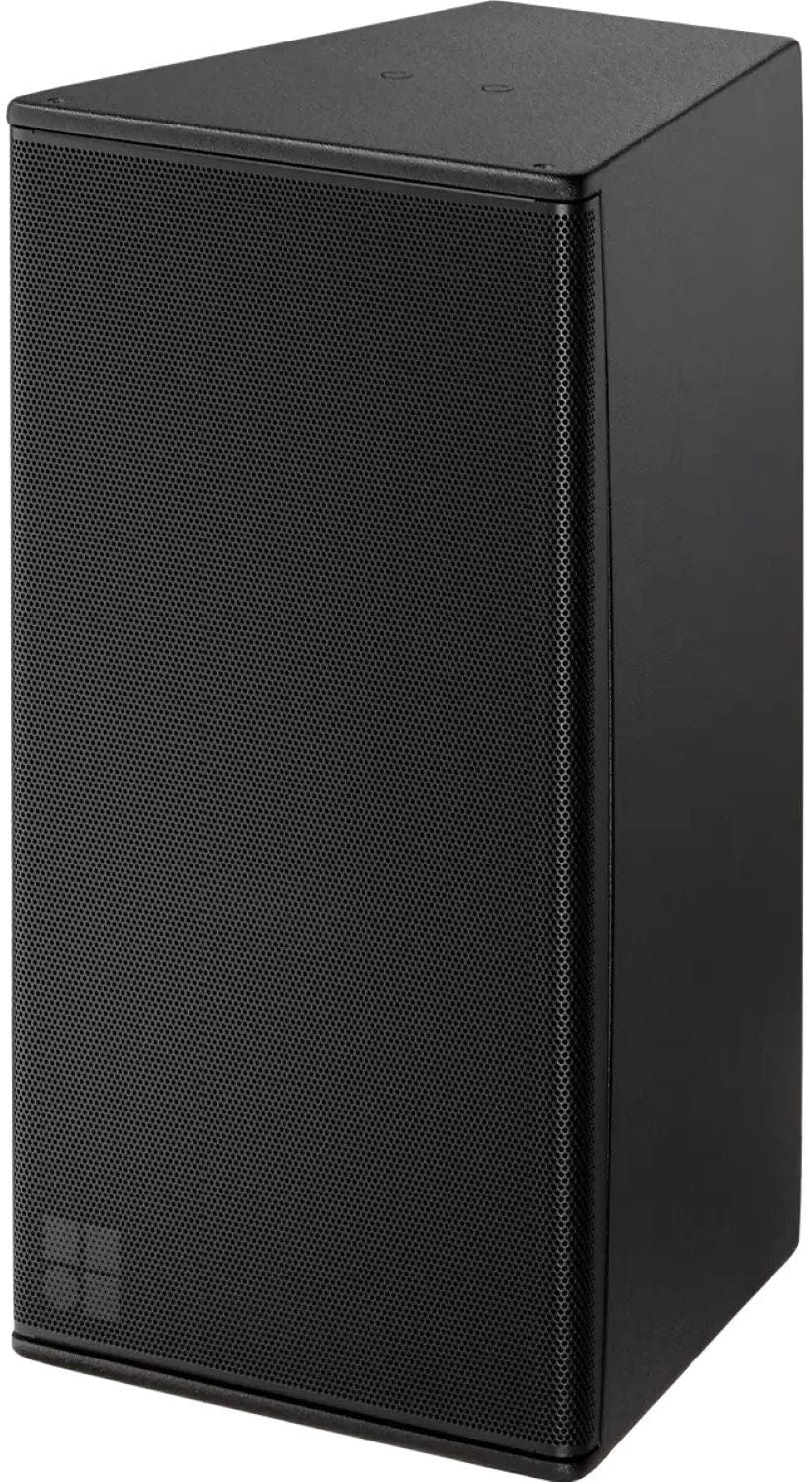

The biaxial 12S/12S-D are high performance 2-way loudspeakers that house a single 12” driver in a bass-reflex enclosure and different HF sections for a wide range of installed sound applications. Both versions are lightweight passive designs using neodymium drivers and large horns for accurate pattern control with rotatable dispersion characteristics of 75° x 50° and 110° x 55° respectively. Both loudspeakers are equipped with a 1.4” exit compression driver. With their extended frequency response from 48 Hz to 18 kHz both versions can be used as full range systems and can also be supplemented by different subwoofers of the xS-Series. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The top and bottom panels incorporate a pair of M10 threaded inserts and the rear panel incorporates two M8 threaded inserts. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.

Weather resistant (WR): This option is suitable for outdoor use. The cabinets have an impact and weather protected black PCP (Polyurea Cabinet Protection) finish. WR cabinets are equipped with a recessed connector panel including a Faston type connector (2 x 6.3 mm, female). A cover plate which accepts single or dual PG cable glands (Type PG13.5 for cable diameters from 6 - 12 mm) is enclosed, as shown in the graphic opposite.
