d&b audiotechnik 18S-SUB 18-Inch Passive Subwoofer

Model Z1626-000

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Authorized d&b audiotechnik Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

d&b audiotechnik 18S-SUB 18-Inch Passive Subwoofer

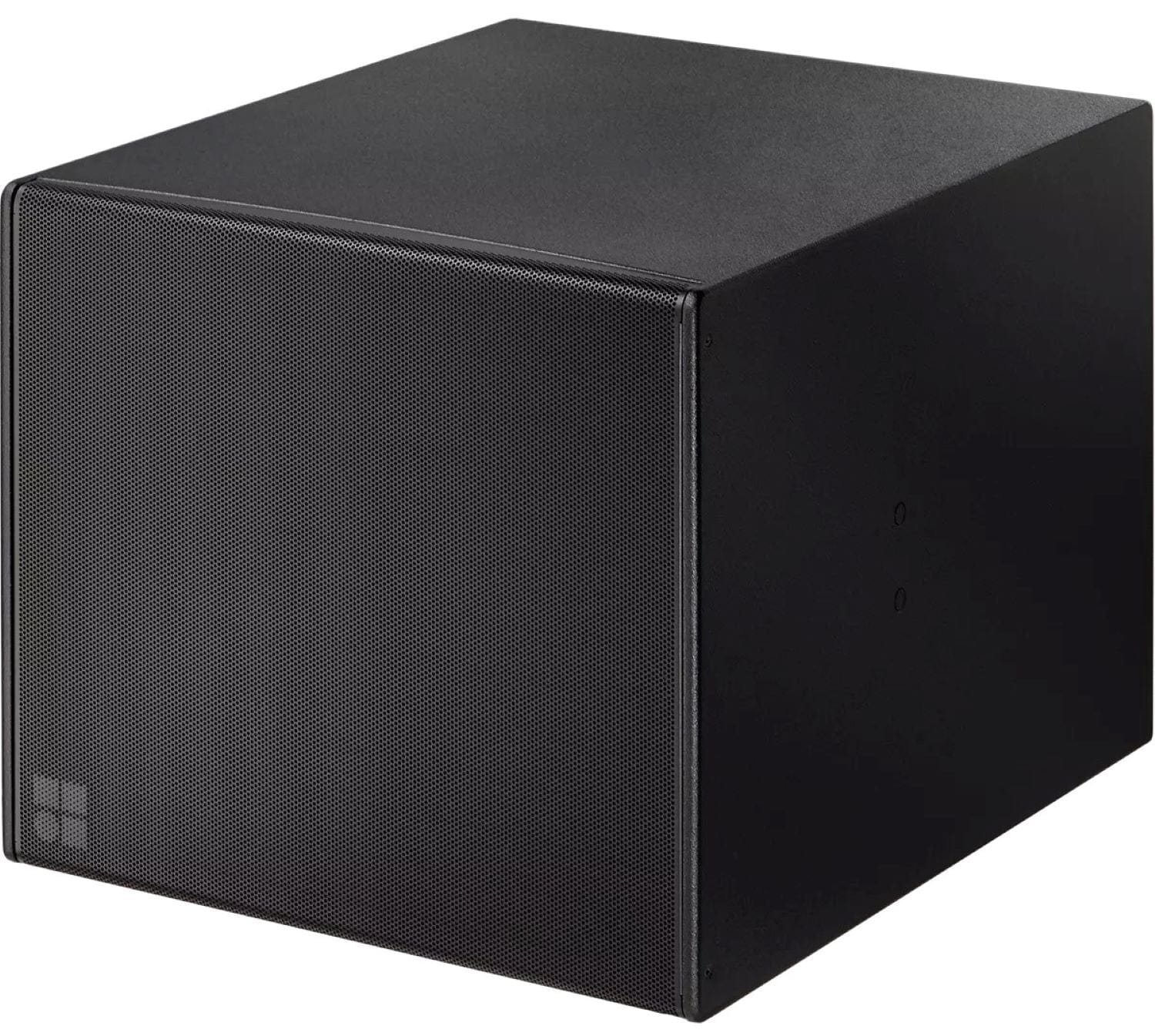

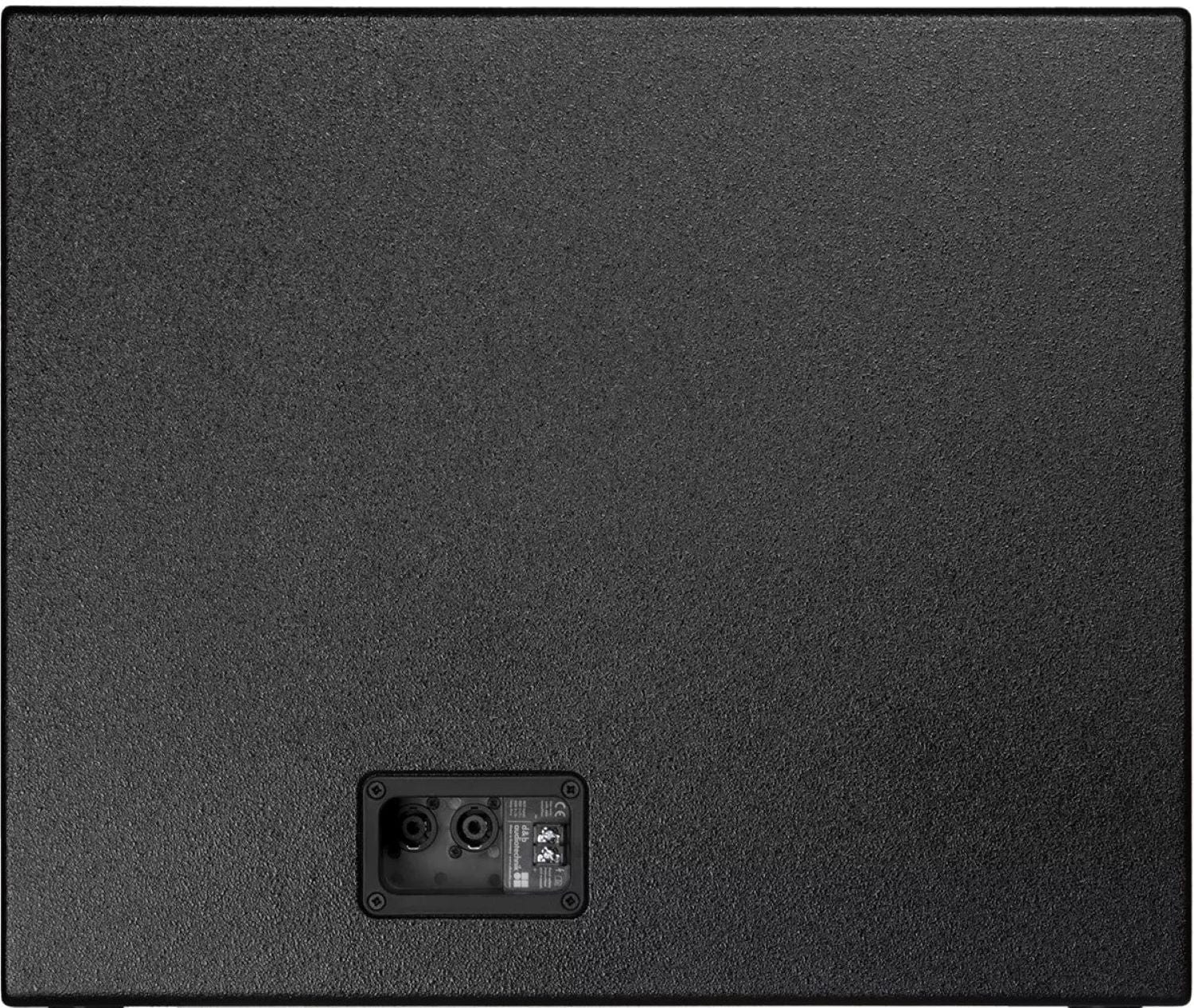

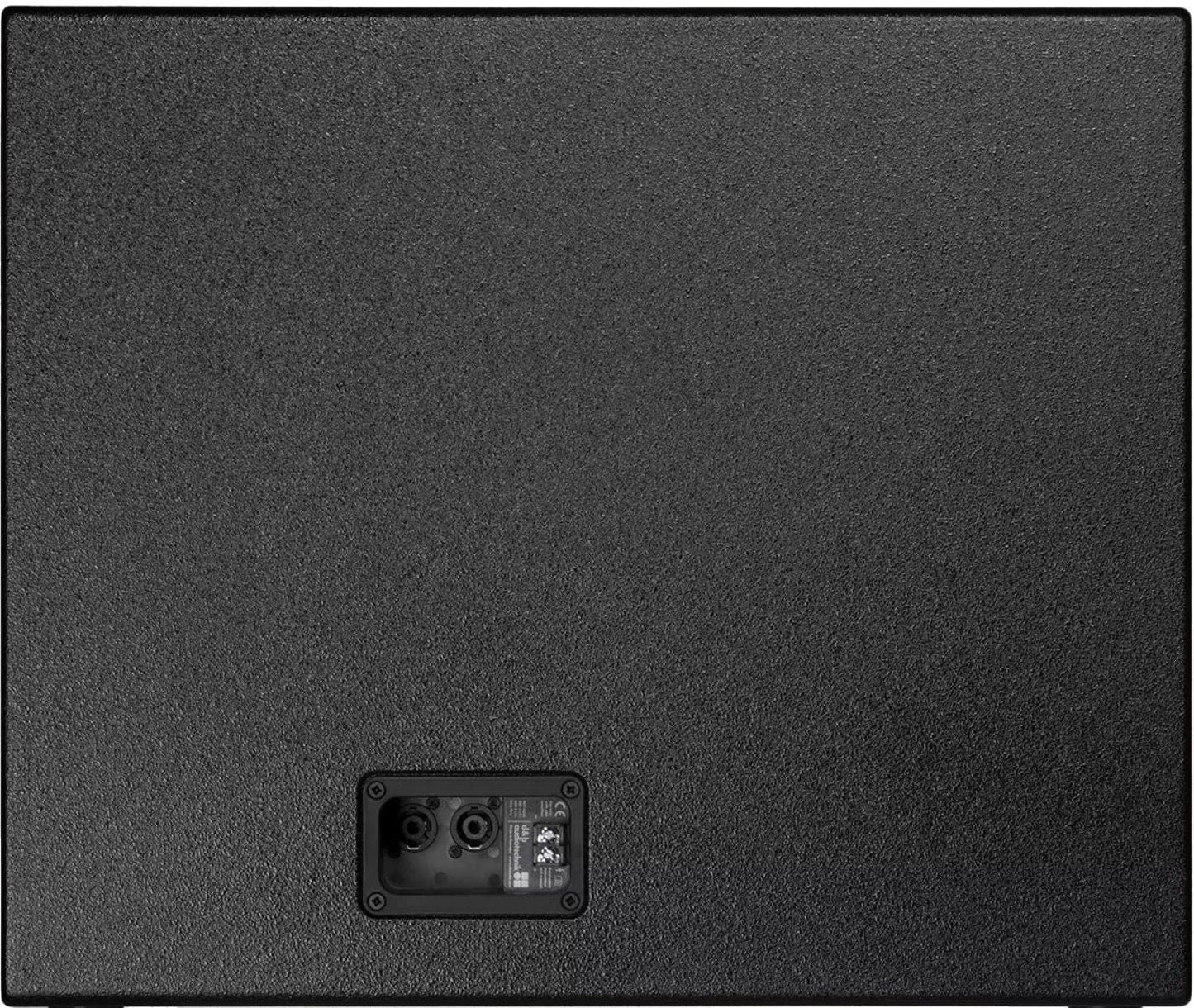

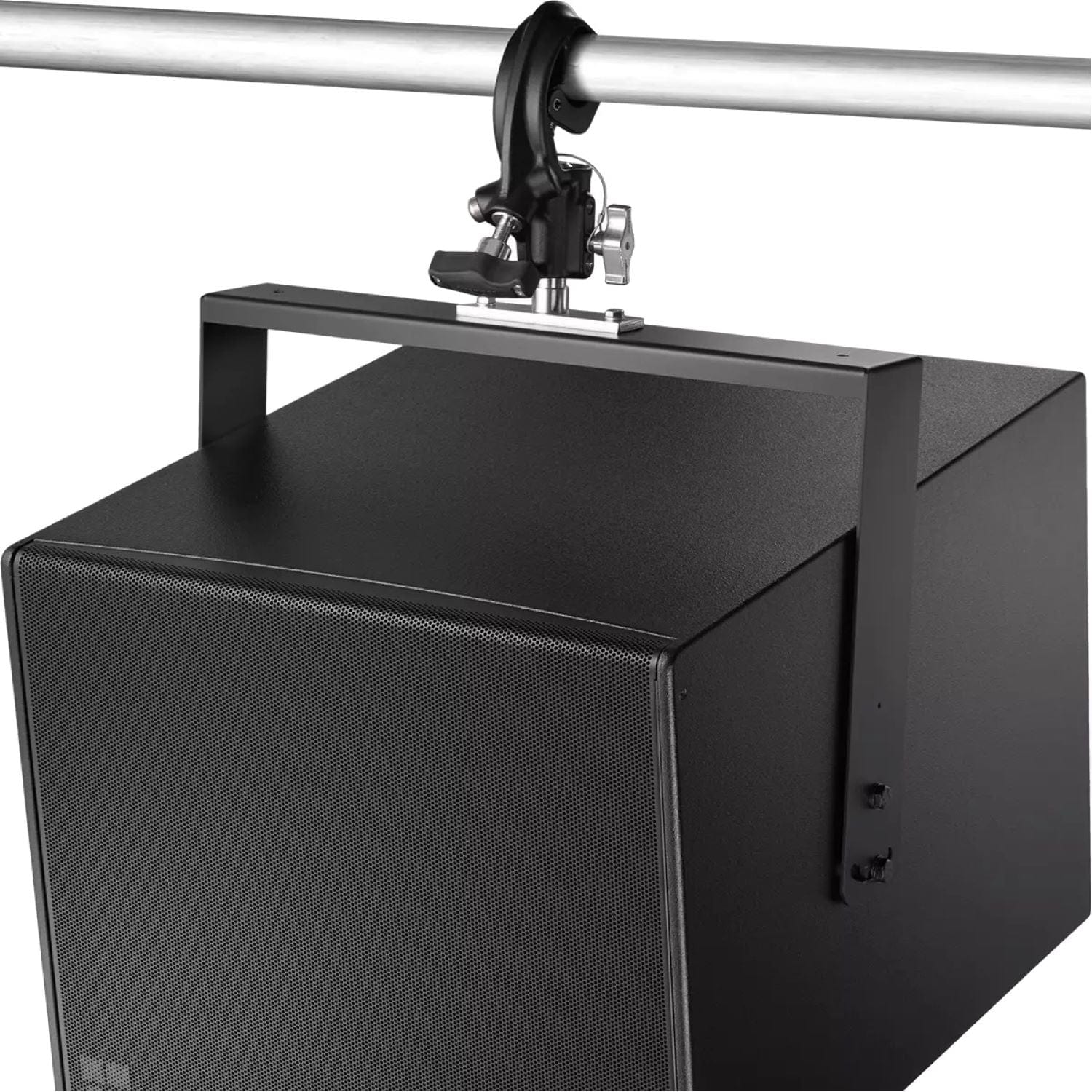

The 18S-SUB is a compact high performance subwoofer for use with the xS-Series and xA-Series loudspeakers. The cabinet houses a long excursion 18" neodymium driver in a bass-reflex design and it can be used stand-alone, stacked or individually flown. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Incorporated into the side panels are a pair of M10 threaded inserts and into the rear panel are two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.

Why this product

Key Benefits

  • Components 18"

  • Dispersion Omni directional

  • SPLmax 132 dB

Technical details

Technical Specifications

System

Configuration
Installation specific compact subwoofer
Components
18" driver with neodymium magnet

Frequency

Frequency response (-5 dB standard)
37 - 140 Hz
Frequency response (-5 dB CUT mode)
37 - 100 Hz

Performance & Coverage

Nominal dispersion angle (h x v)
110° x 55° rotatable

Power

Cabinets per amplifier channel
2
Nominal impedance
8 Ω
Power handling capacity (RMS/peak 10 ms)
400/1600 W

Physical

Dimensions (H x W x D)
490 x 580 x 700 mm / 19.3 x 22.8 x 27.6"
Weight
32 kg / 71 lb

General

with 10D
129 dB
with D20/5D/30D
132 dB
with D40/D80/40D
132 dB

More details

Additional Information

Specifications:

  • System data:
    • Max. sound pressure:
  • Loudspeaker data:
    • Connections:
      • 2 x NL4
      • screw terminal block
  • Dimensions / Weight:
