d&b audiotechnik 44S 2x 4.5-Inch Passive Loudspeaker
Model Z1650-000
Price on Request
Availability: In Stock
- Authorized d&b audiotechnik Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

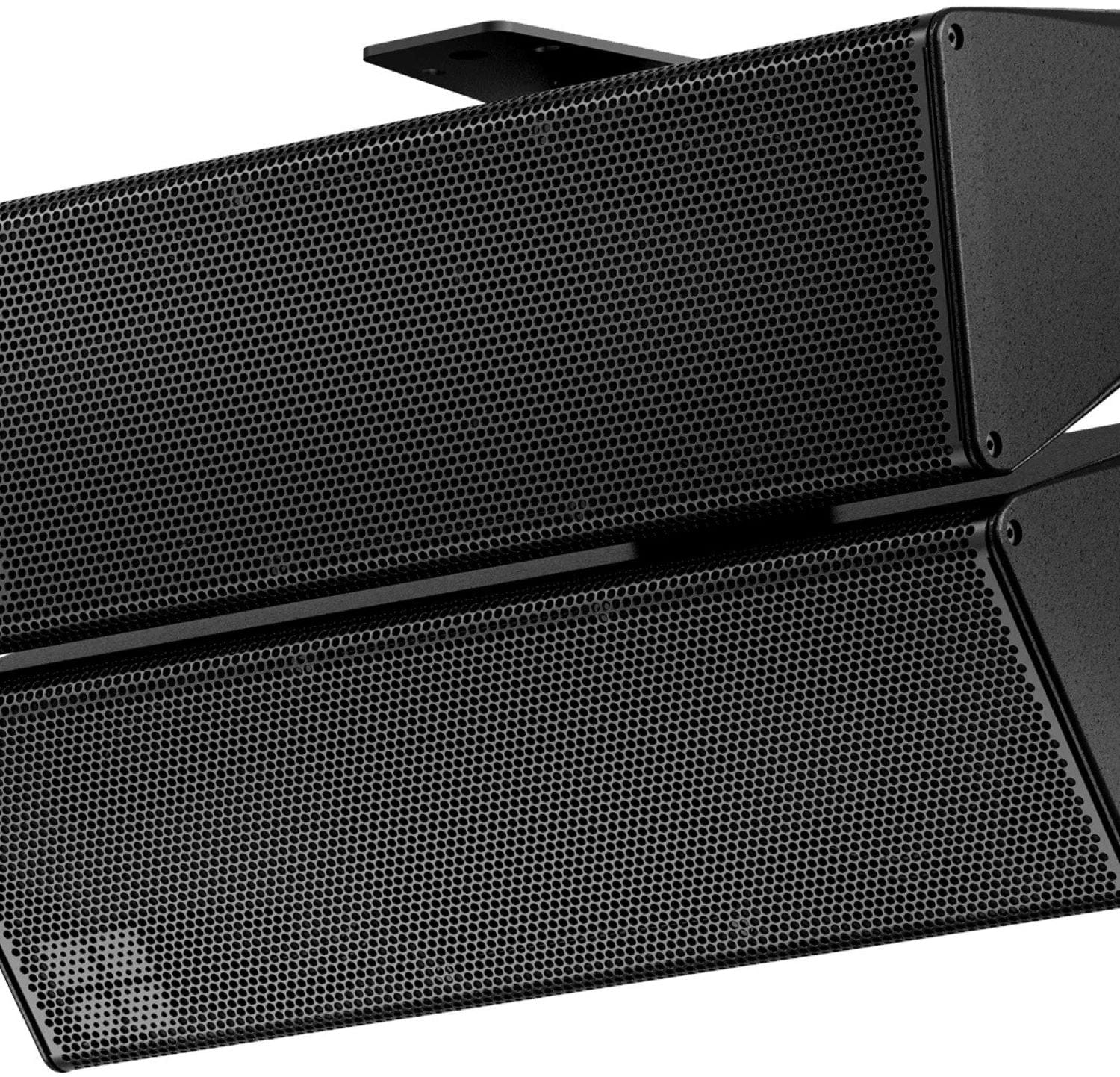

d&b audiotechnik 44S 2x 4.5-Inch Passive Loudspeaker

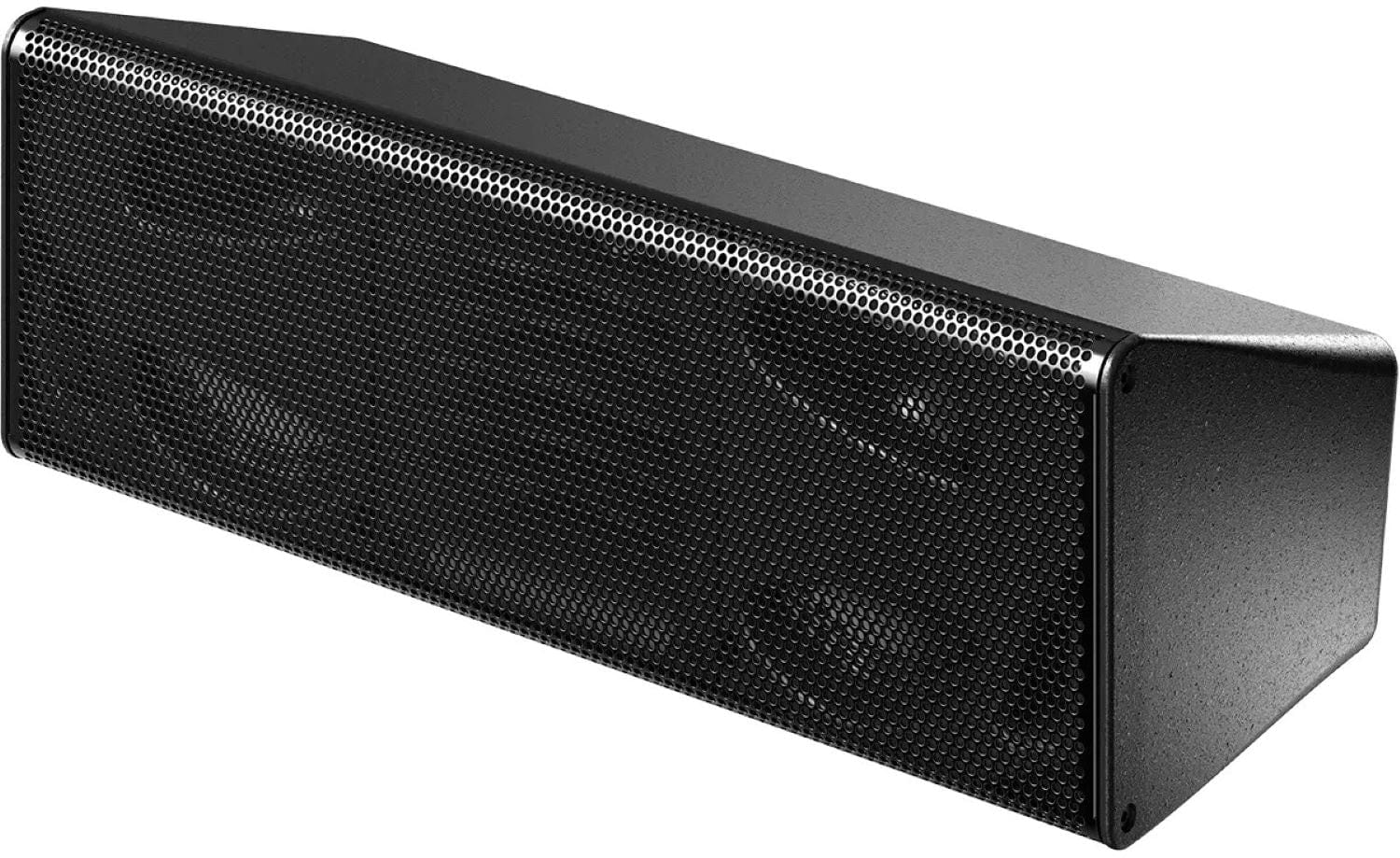

The 44S is a passive 2-way design housing two 4.5” neodymium LF drivers and two 1.25" HF dome tweeters mounted on a rotatable CD horn thus providing a rotatable dispersion characteristic of 90° x 30°.

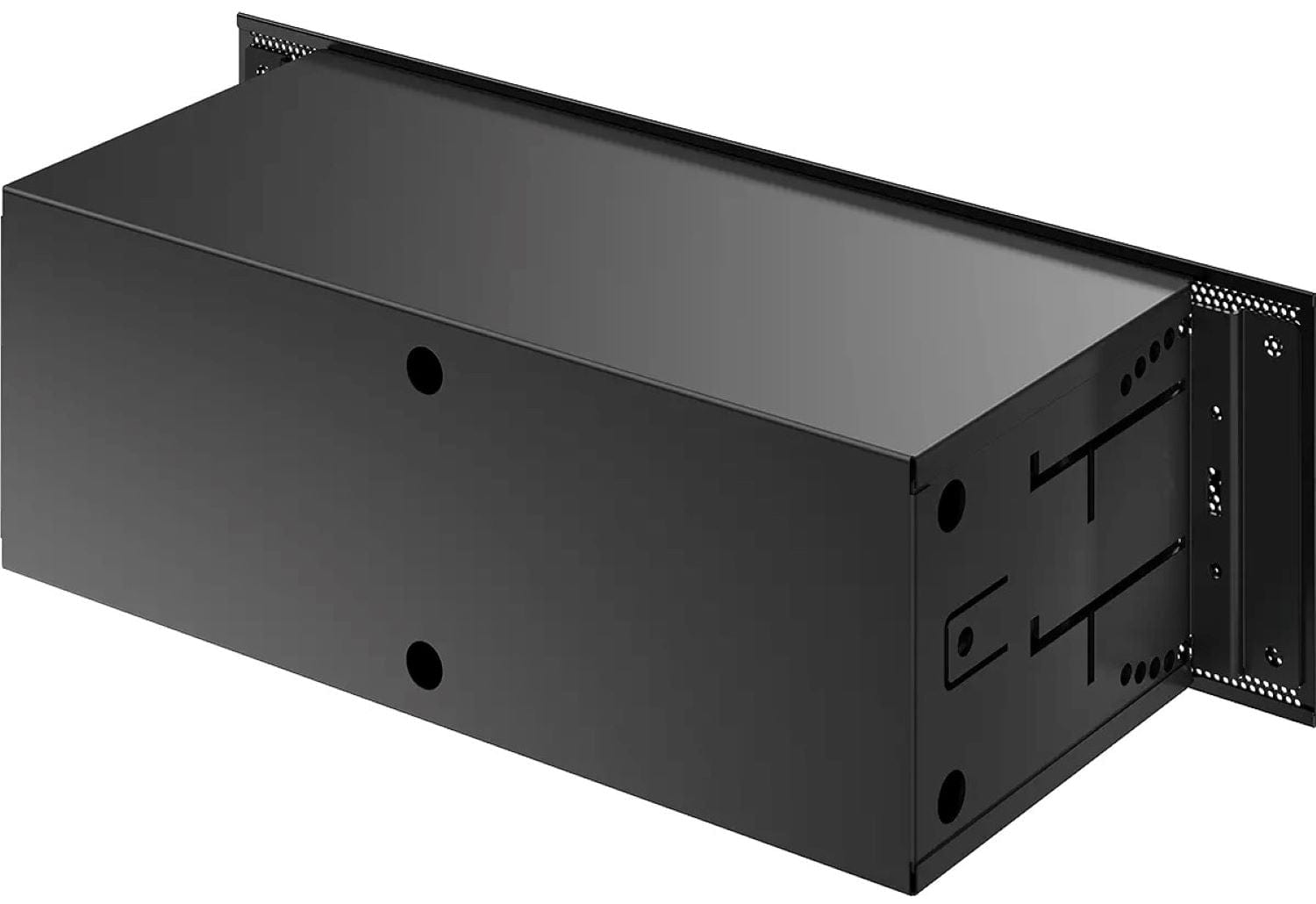

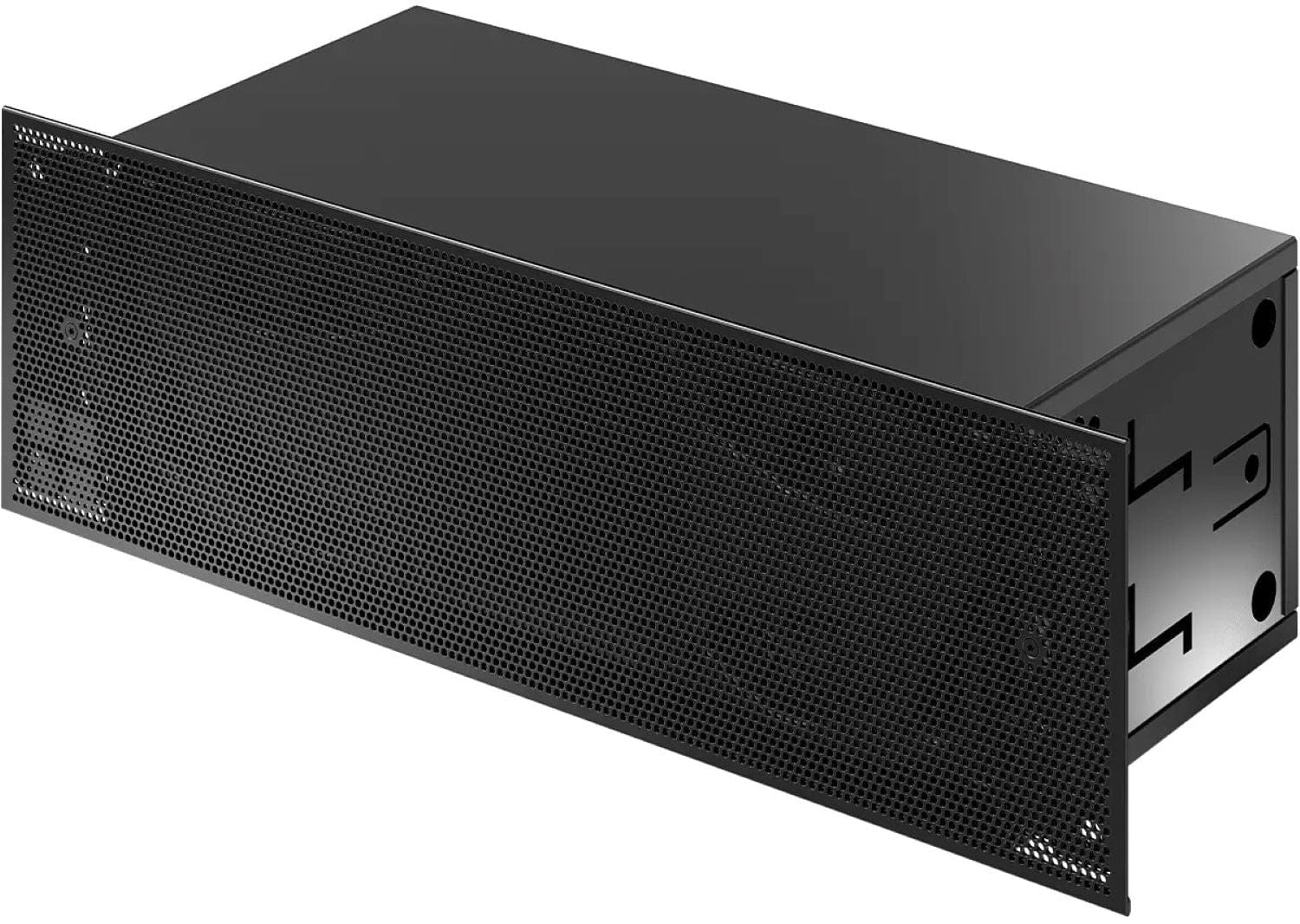

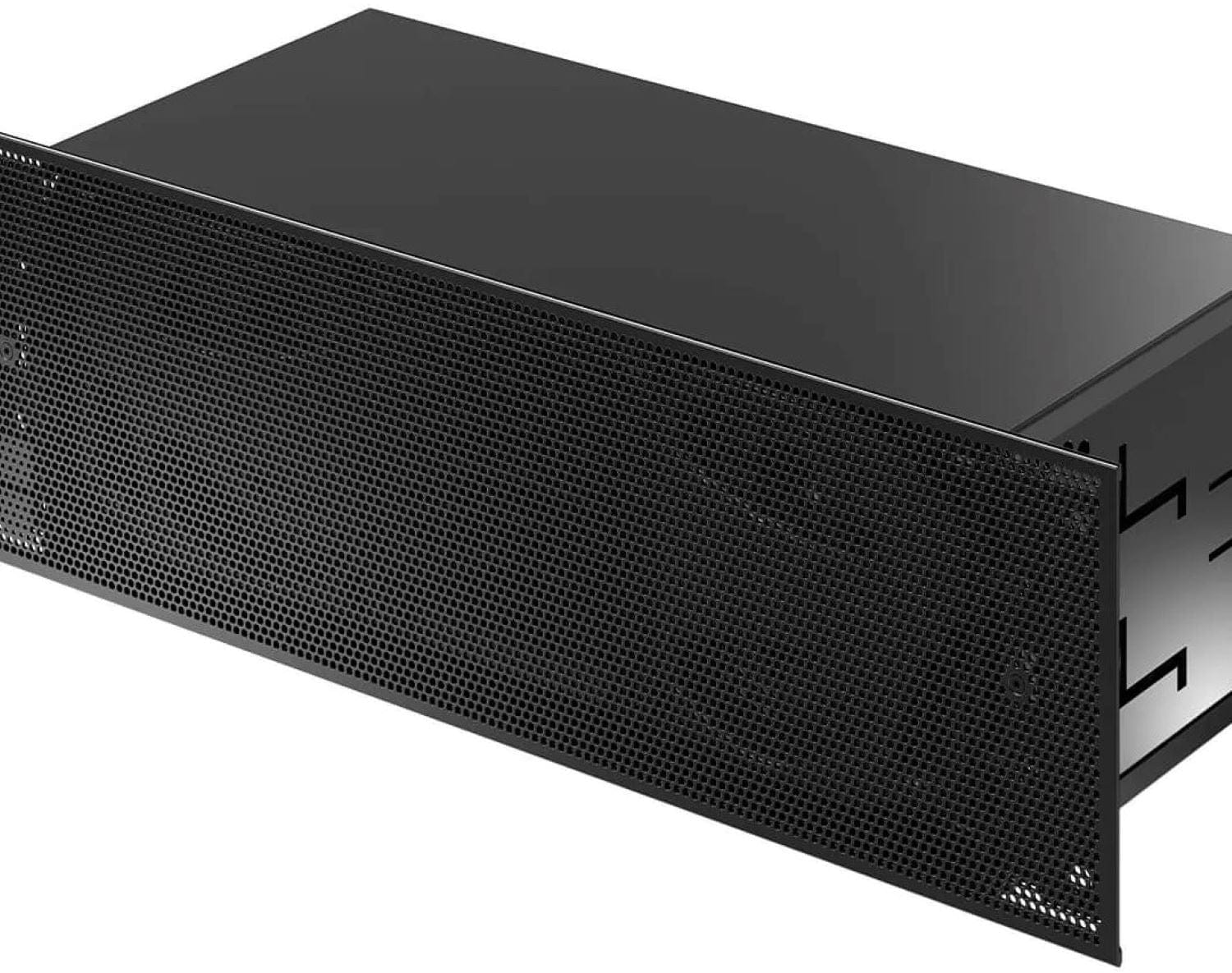

The optional d&b Z5427.000 44S back box can be used for flush mounting the loudspeaker into ceilings or walls, either in horizontal or vertical position. The asymmetric cabinet shape of the 44S allows the dispersion to be adjusted +/- 20° in five-degree increments within the back box.
The loudspeaker can be used as a stand-alone system or supplemented by actively driven d&b subwoofers.

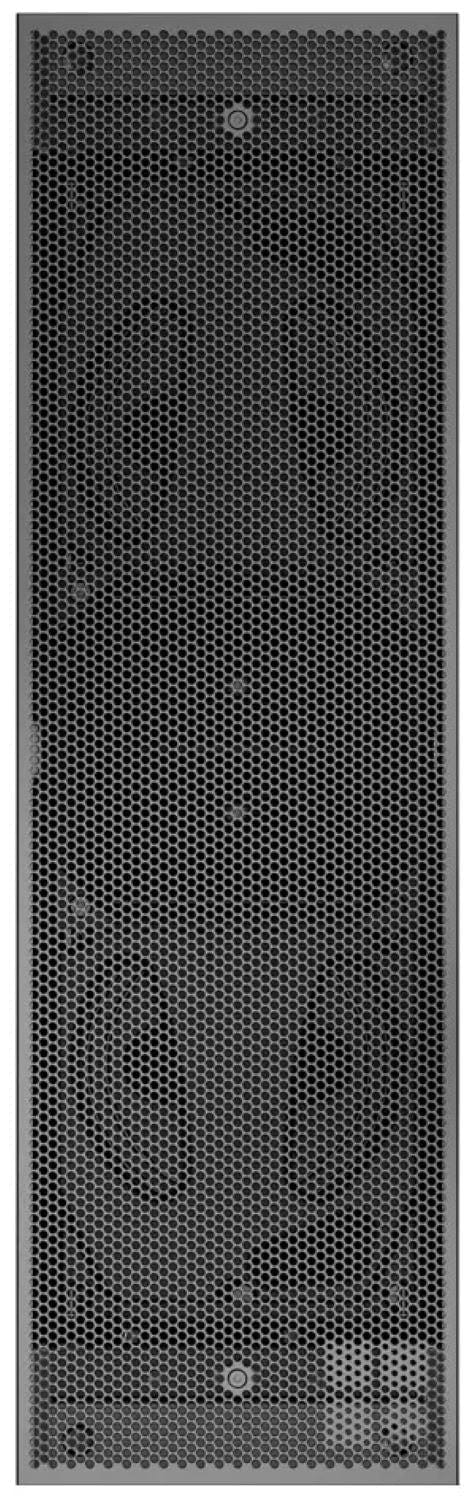

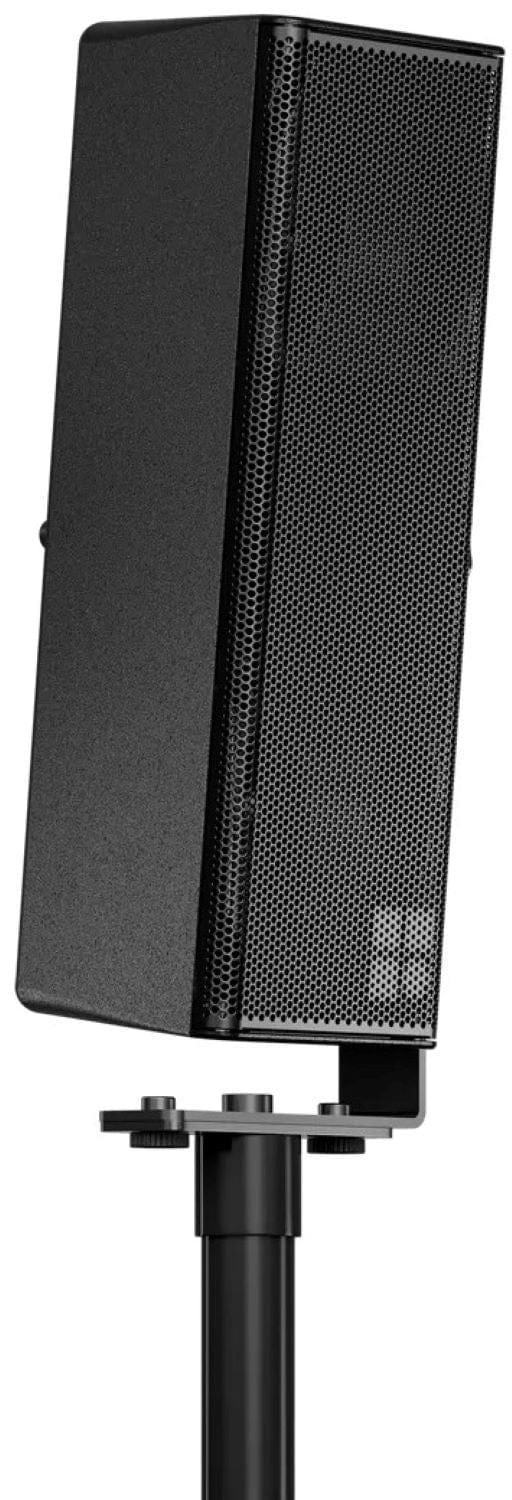

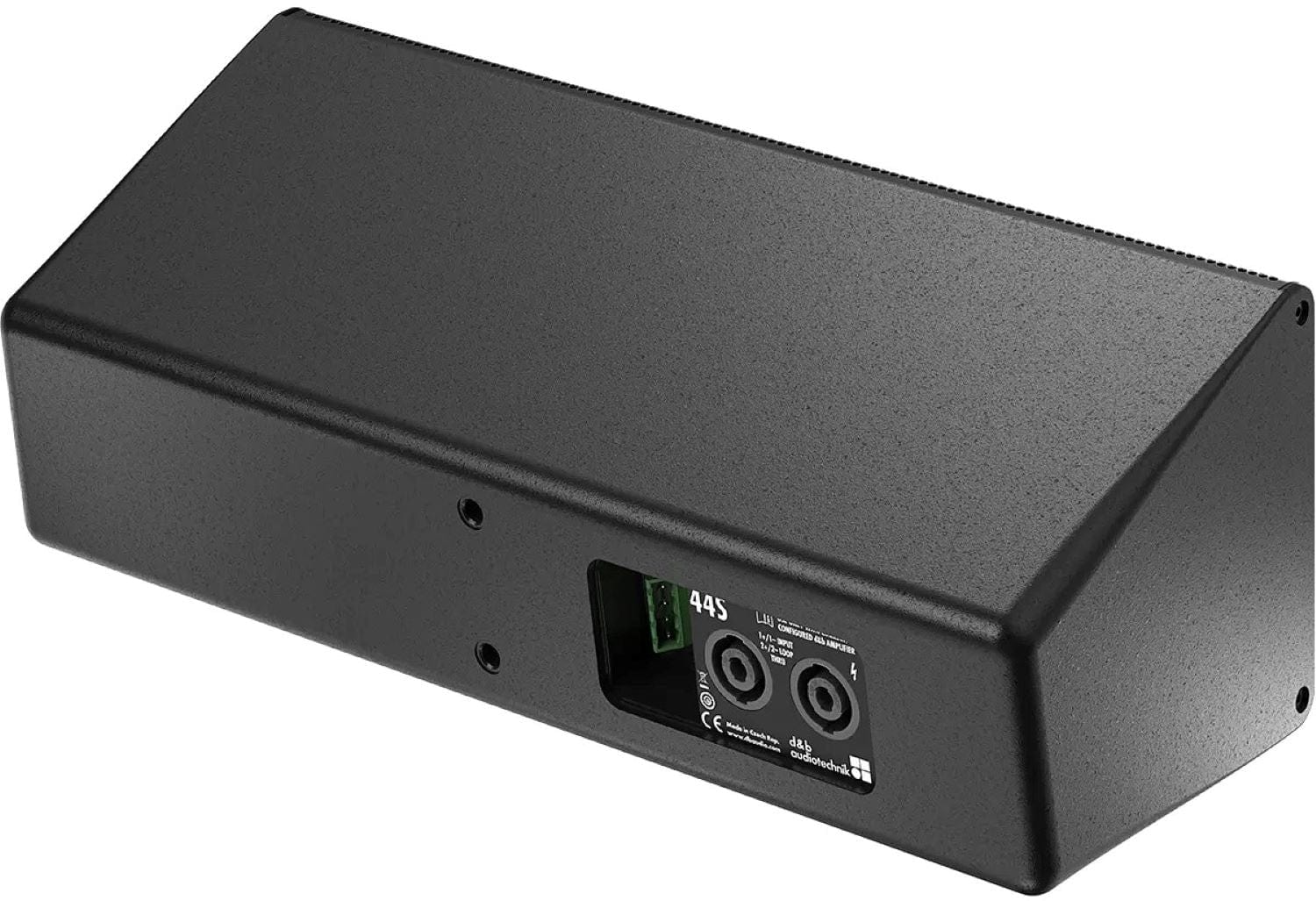

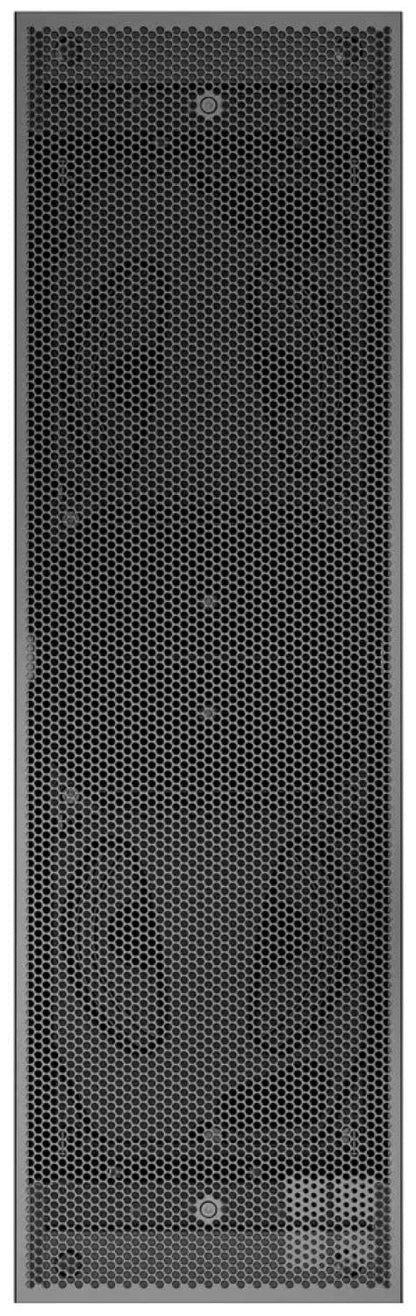

The enclosure is injection moulded with an impact resistant paint finish. The front of the cabinet is protected by a rigid metal grill. Two M8 threaded inserts are incorporated in the back panel to connect to different rigging accessories. The loudspeaker cabinet and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours.
Why this product
Key Benefits
-
Components 2 x 4.5″, 2 x 1.25″
-
Dispersion 90° x 30° rotatable
-
SPLmax 123 dB
-
Weight 3.6 kg (8 lb)
Technical details
Technical Specifications
System
- Configuration
- Compact universal high performance 2-way loudspeaker with an asymmetric cabinet shape
Frequency
- Frequency response (-5 dB standard)
- 90 Hz - 17 kHz
- Frequency response (-5 dB CUT mode)
- 150 Hz - 17 kHz
Performance & Coverage
- Nominal dispersion angle (h x v)
- 90° x 30°
Power
- Cabinets per amplifier channel
- 4
- Nominal impedance
- 16 ohms
- Power handling capacity (RMS/peak 10 ms)
- 150/500 W
Connectivity
- Connections
- 4-pin Phoenix Euroblock and 2 x NL4 M
General
- with 10D
- 121 dB
- with D20/5D/30D
- 123 dB
- with D40/D80/40D
- 123 dB
More details
Additional Information
Specifications:
- System data:
- Max. sound pressure:
- Max. sound pressure:
- Loudspeaker data:
- Components:
- 2 x 4.5″ driver with neodymium magnet
- 2 x 1.25″ dome tweeter mounted on CD horn
- Components:
- Dimensions / Weight:
- Dimensions (H x W x D):
- 390 x 128 x 150 mm
- 480 x 140 x 180 mm with Backbox
- 15.3 x 5 x 5.9″
- 18.9 x 5.5 x 7.1″ with Backbox
- Weight:
- 3.6 kg
- 6.2 kg with Backbox
- 8 lb
- 13.7 lb with Backbox
