d&b audiotechnik Z5563.000 DS10 Rack Upgrade Kit
Model Z5563-000
Price on Request
Availability: In Stock
- Authorized d&b audiotechnik Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
d&b audiotechnik Z5563.000 DS10 Rack Upgrade Kit
The d&b audiotechnik Z5563.000 DS10 Rack Upgrade Kit provides all necessary components for upgrading your DS10 rack. It enhances functionality and performance, ensuring your audio system meets the demands of modern professional environments.
Why this product
Key Benefits
-
Interface between the Dante audio transport protocol via Ethernet and the AES3 inputs of the d&b amplifiers
-
Integrated 5-port Ethernet switch provides extended connectivity and advanced functions such as redundancy, VLANs and multicast filtering
-
Four AES3 input channels for extended flexibility
-
In bypass mode, the DS10 acts as an AES3 distribution device
-
Dante meta data including channel label information sent through AES3 stream to the four channel d&b amplifiers
Technical details
Technical Specifications
System
- Sampling
- 32 - 192 kHz
- Sampling
- 48 / 96 kHz
Power
- Mains connector
- powerCON1
- Rated mains voltage
- 100 - 240 V, 50 - 60 Hz
Connectivity
- BYPASS/NETWORK
- Toggle switch
- Switch port modes/Audio loss
- LED indicators
Physical
- Height x width x depth
- 1 RU x 19"" x 232 mm
- Weight
- 3.75 kg (8.26 lb)
General
- SYNC ERROR
- Red LED indicator
- SUBSCRIBED (RX Subscription)
- Green LED indicator
- Synchronization
- Sample Rate Converter (SRC)
- Synchronization
- Dante network
More details
Additional Information

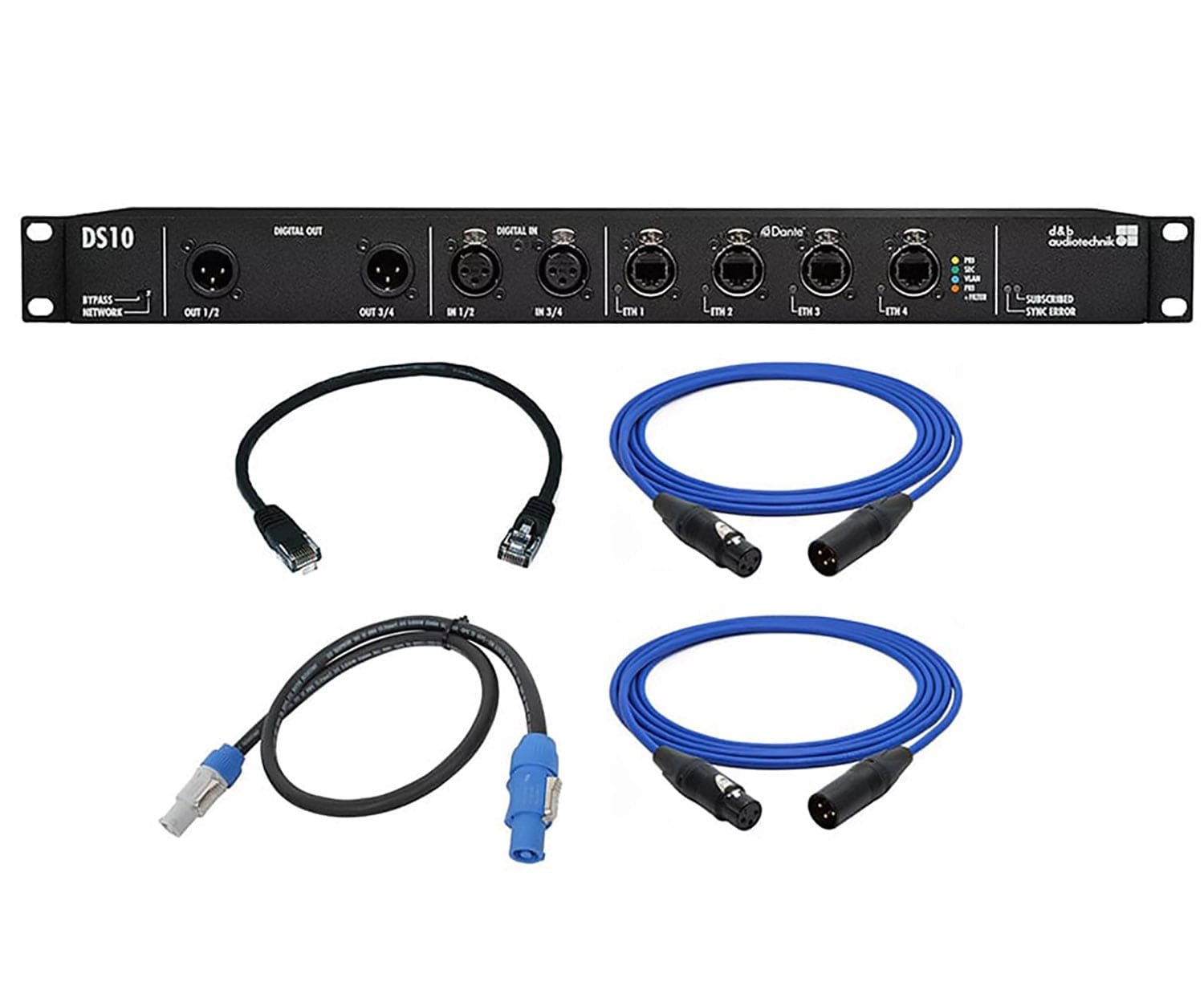

*1x d&b audiotechnik Z4010.000 DS10 Audio Network Bridge Unit

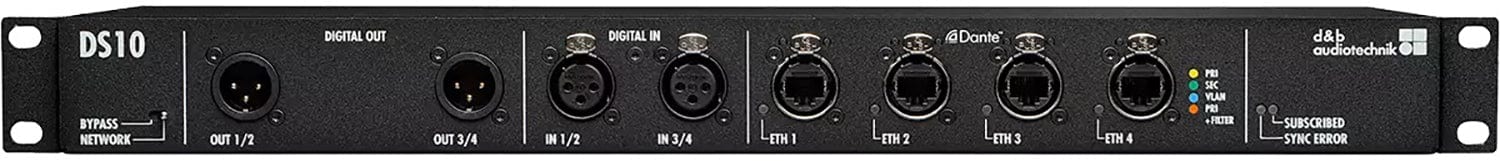

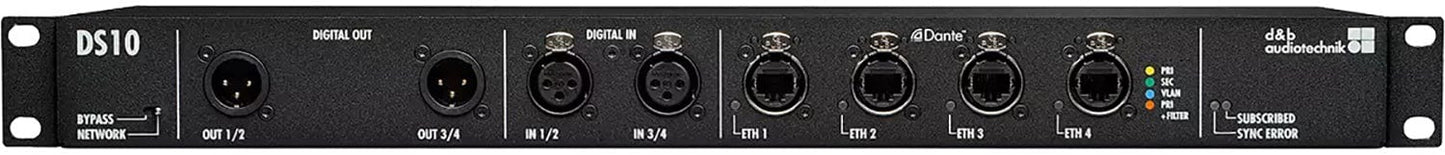

The DS10 Audio network bridge interfaces between Dante networks and AES3 digital audio signals, while also providing distribution of Ethernet control data. Positioned within the signal chain in front of the amplifiers, this 1 RU device expands the d&b system approach in both mobile and installation environments. Each unit can deliver up to sixteen Dante network channels via AES3 digital signal outputs. The AES3 channel streams from the DS10 carry meta data with Dante channel labels and cabling information to the four channel d&b amplifiers. Additionally, four AES3 input channels provide access to the Dante audio network for applications such as a break-in from a Front of House console.
&The DS10 incorporates an integrated 5-port switch, offering a primary and redundant network for the Dante protocol, as well as advanced functions such as Multicast Filtering and VLAN modes. This extensive switch flexibility provides extended connectivity for a laptop to control the d&b amplifiers using the R1 Remote control software via the OCA/AES70 (Open Control Architecture) protocol. Using the DS10 Audio network bridge, audio signals and remote control data can be combined using a single Ethernet cable. The front panel of the DS10 is designed to match the I/O panel of the D80 Touring rack assembly. This ensures a simple integration within existing system configurations. The DS10 features a power supply suitable for mains voltages 100 V – 240 V, 50 – 60 Hz, with Overvoltage protection of up to 400 V.
Specifications:
- Control and indicators:
- Digital inputs:
- DIGITAL IN:
- 4 channels (2 x AES3)
- 3 pin XLR female
- DIGITAL IN:
- Digital outputs:
- DIGITAL OUT:
- 16 channels (8 x AES3)
- 3 pin XLR male
- DIGITAL OUT:
- Network:
- Connectors:
- etherCON1
- built-in 5-port Ethernet switch
- 100/1000 Mbit
- Connectors:
- Power supply:
- Dimensions, weight:

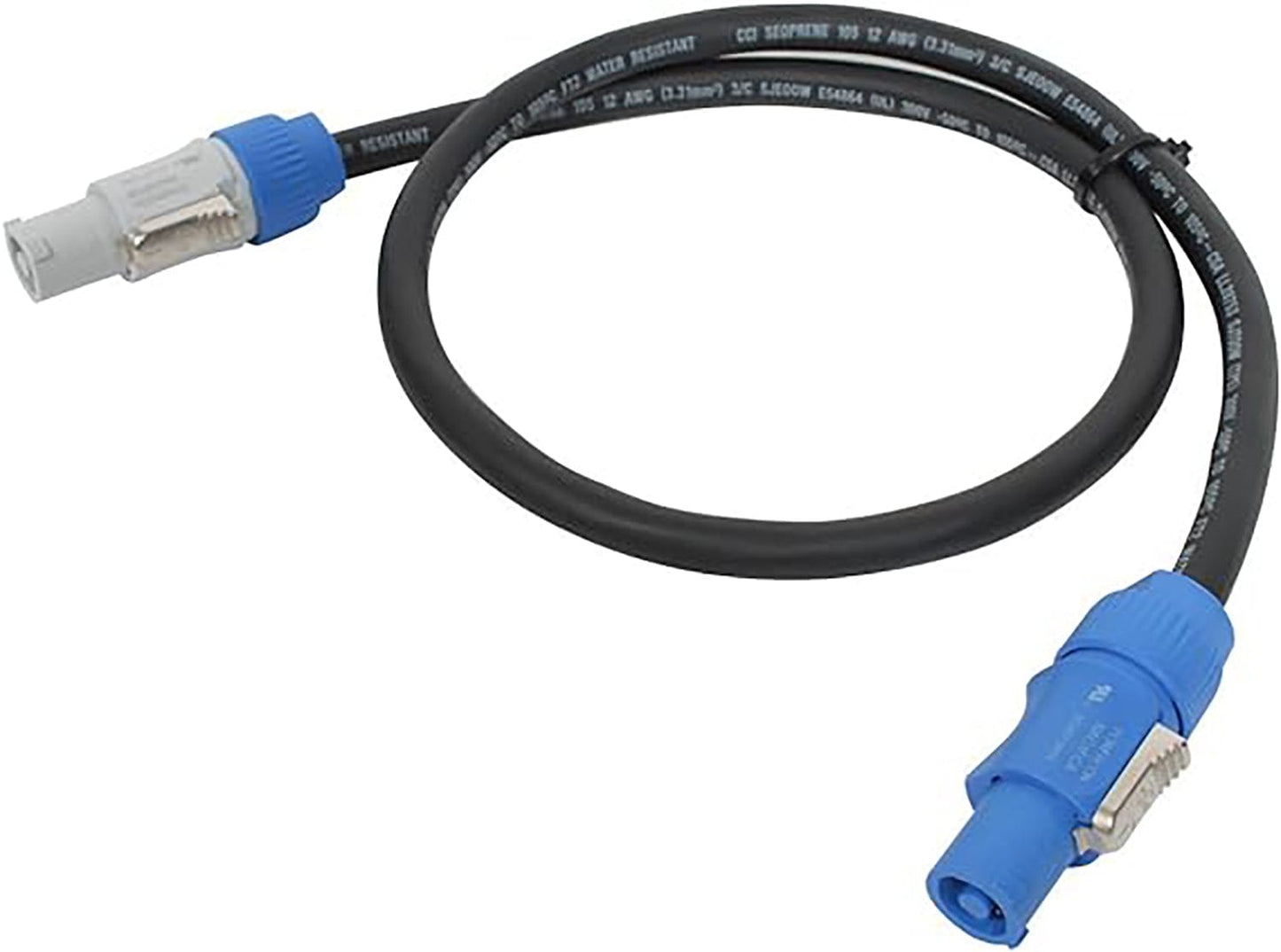

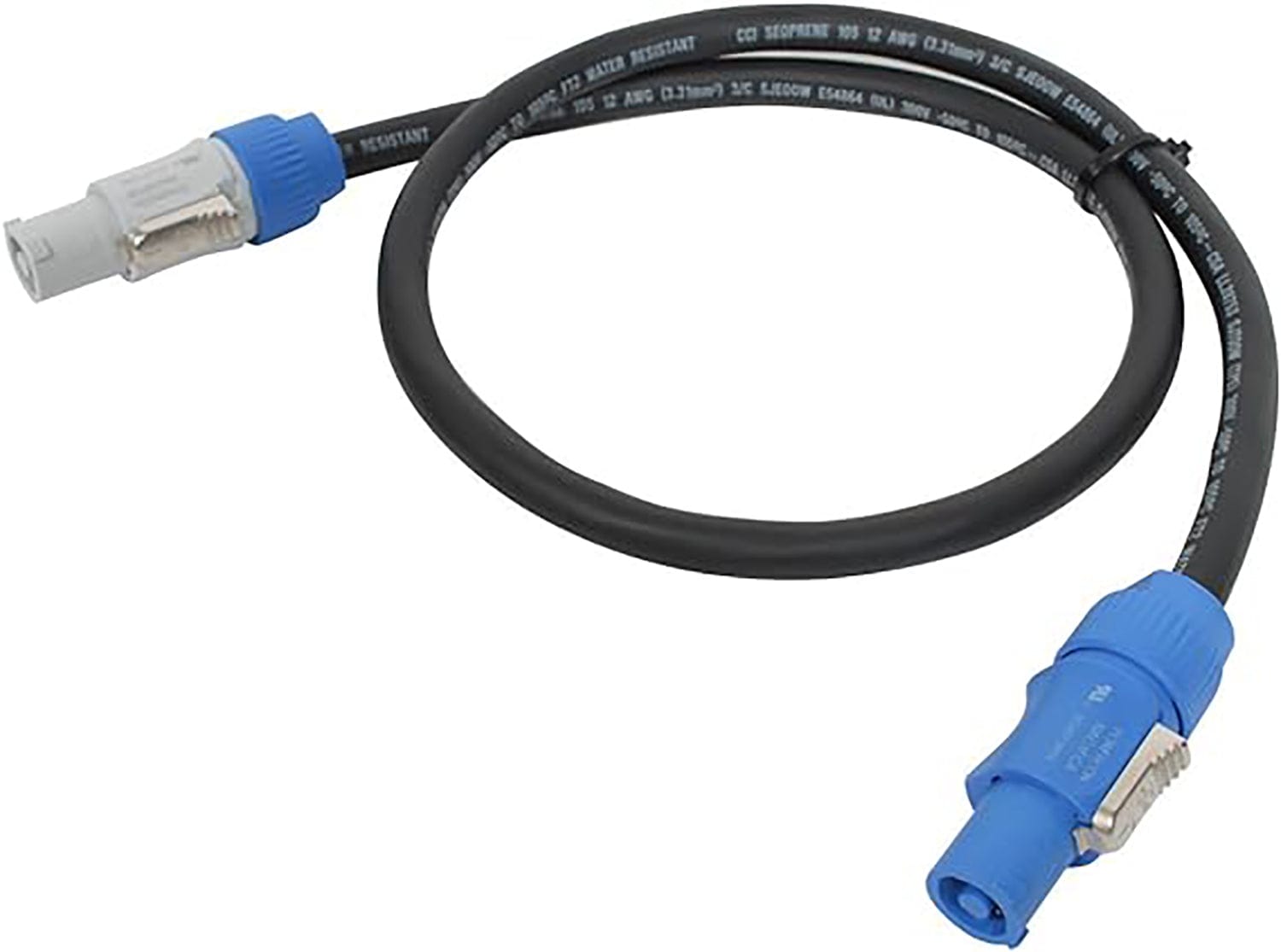

*1x Z2610.130 Power Cord (PowerCON/PowerCON)
Used to connect the device to auxiliary powerCON socket at the rear of the mains distributor.

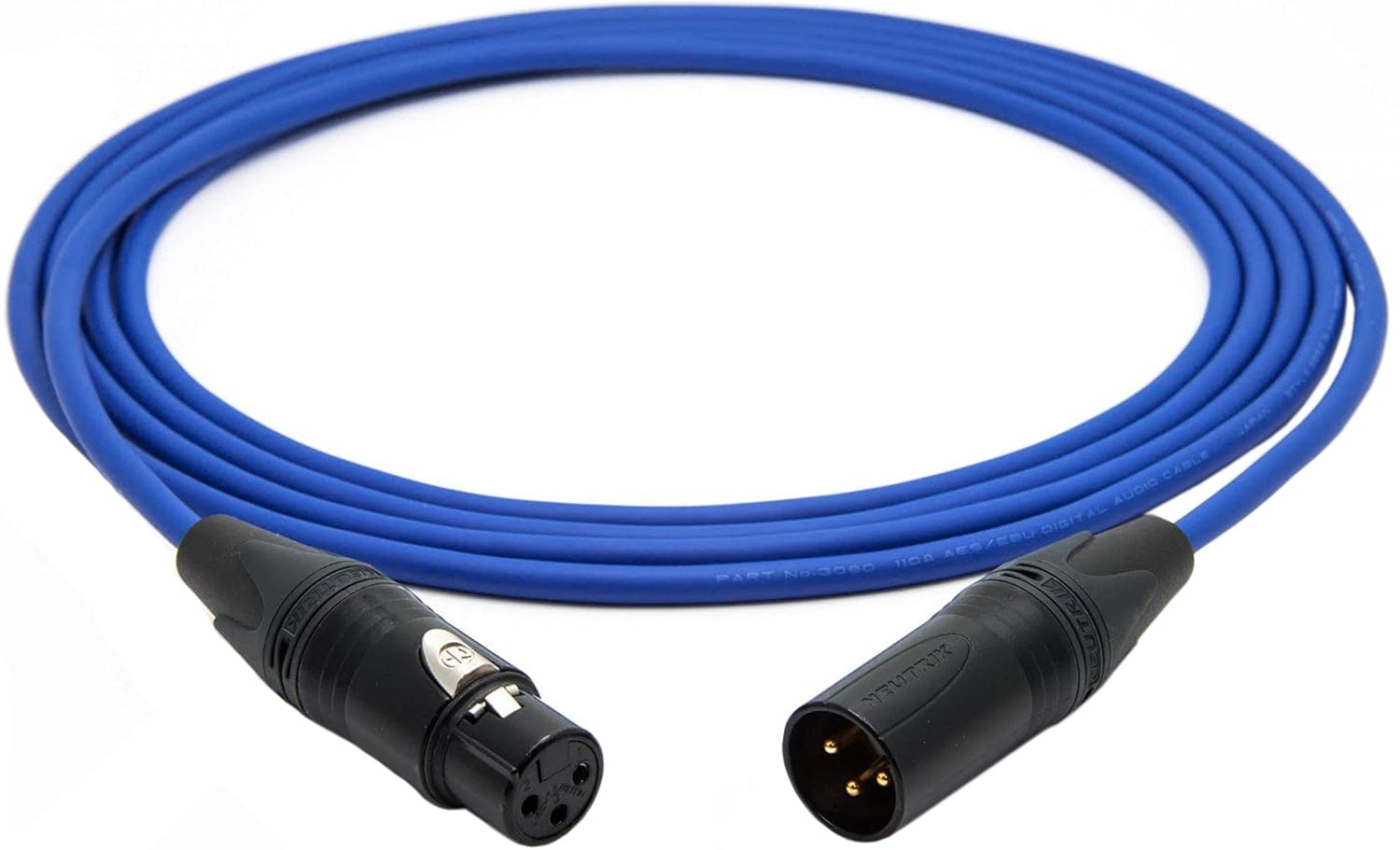

*2x E7500.024 AES/EBU XLR Cable
Used to connect the digital outputs 1/2 and 3/4 to the digital inputs D1/2 and D3/4 of the I/O panel.

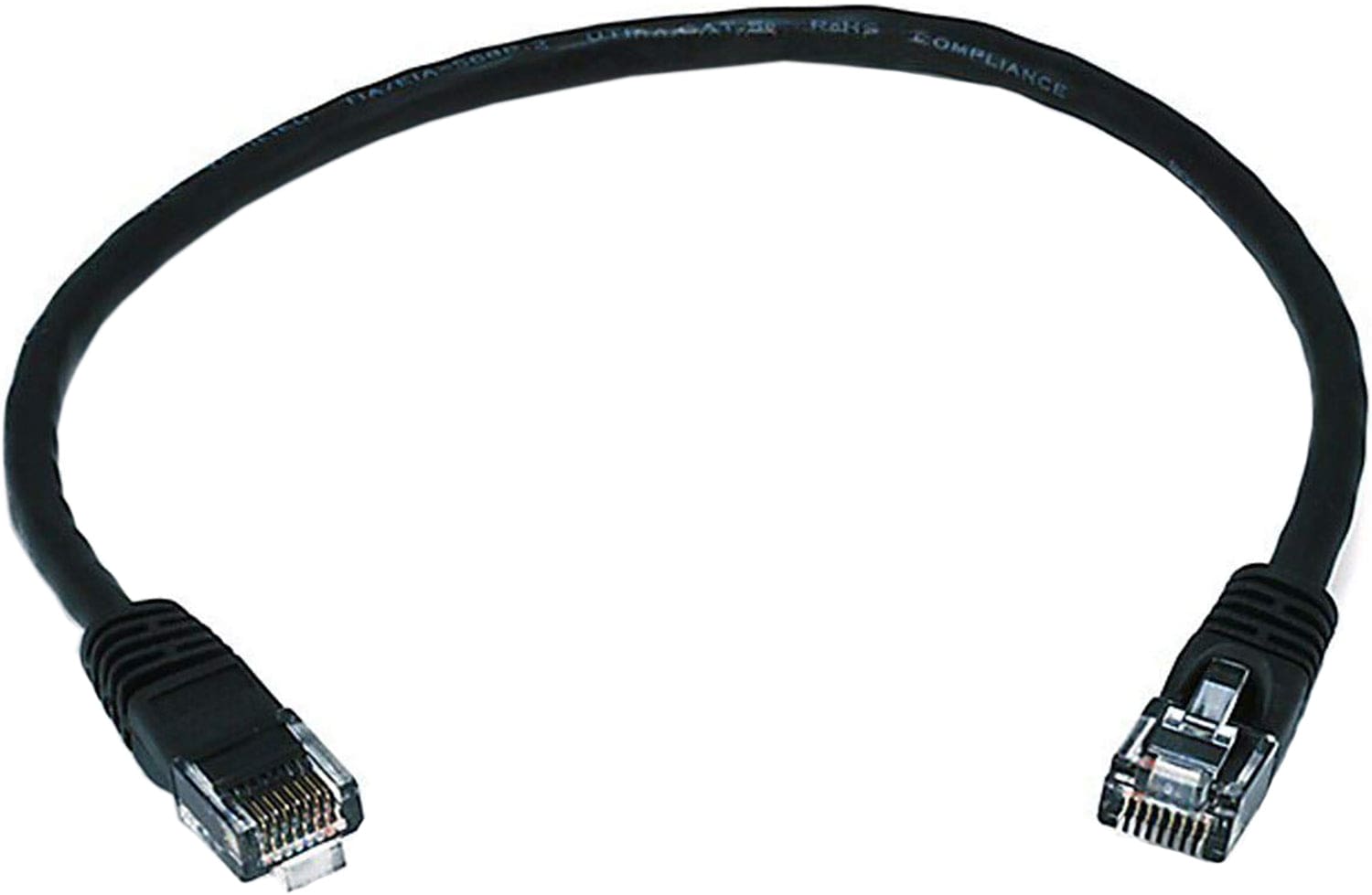

*1x K6018.025 CAT5e Patch Cable
Used to connect the ETH 3 connector of the device to the ETH 1 connector of the I/O panel.
