d&b audiotechnik Z5571.050 3x D80 Touring Rack - NEMA Mains Panel / Audio Network Bridge
Model Z5571-050
Price on Request
Availability: In Stock
- Authorized d&b audiotechnik Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

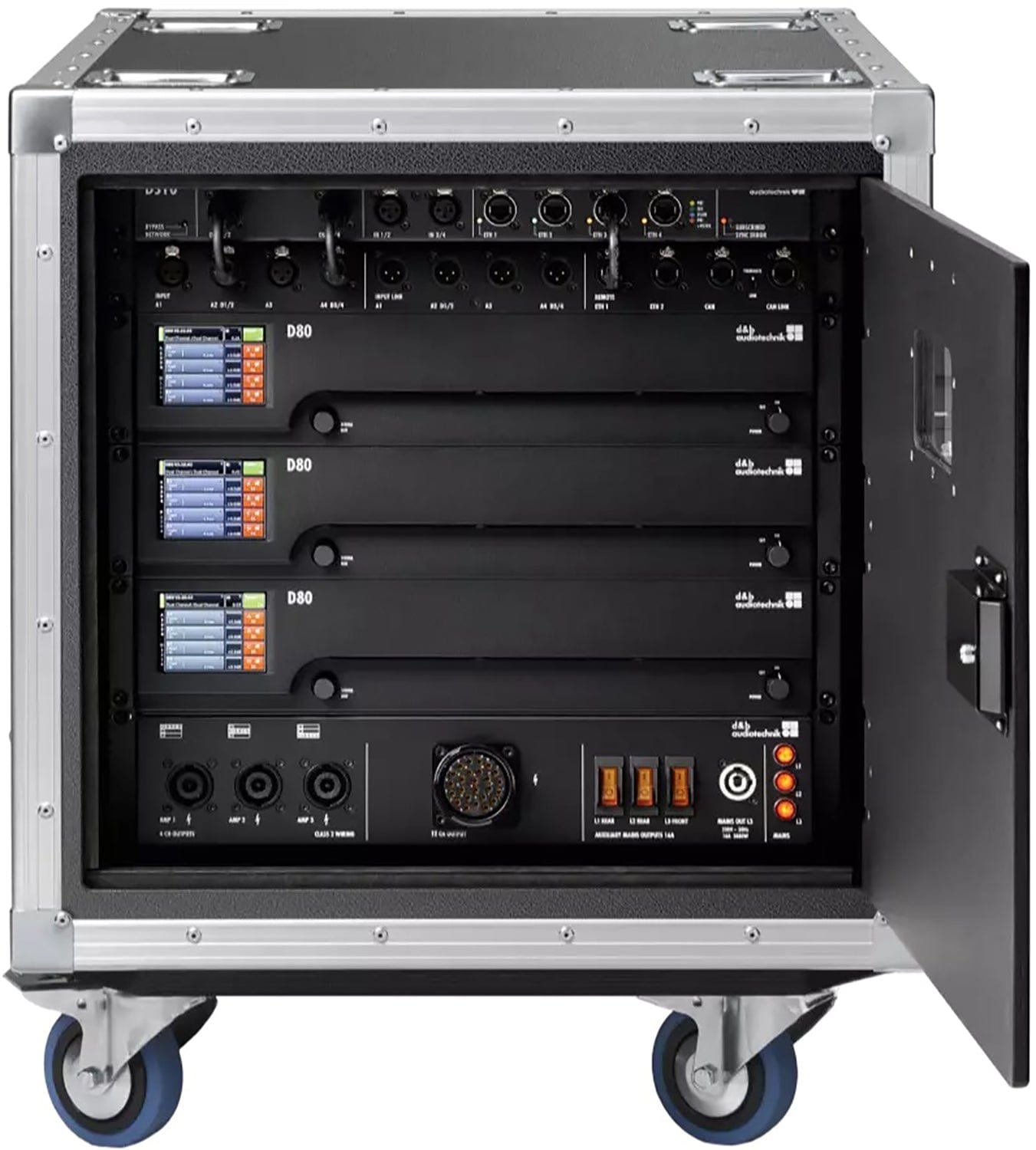

d&b audiotechnik Z5571.050 3x D80 Touring Rack - NEMA Mains Panel / Audio Network Bridge
The Z5570/71.00x D80 Touring Rack Assemblies CEE are designed as closed system racks providing mains power distribution and connector interfaces for 3 x D80 amplifiers each. For this purpose, the Touring Racks are equipped with a mains power distribution device (Z5566.000), which also serves as a loudspeaker connector panel.
Also incorporated is an I/O panel (Z5338), which serves as a connector interface for both analog and digital audio signals as well as four network connectors for either Ethernet or CAN-Bus remote capabilities.
Optionally, a d&b DS10 Audio Network Bridge (Z4010) is included to allow direct connection to the Dante audio network.
Technical details
Technical Specifications
Physical
- Height x width x depth
- 710 x 600 x 715 mm (28 x 23.6 x 28.2")
- Net weight (without D80)
- 71 kg / 156.5 lb
- Total weight (with D80)
- 128 kg / 282.2 lb
More details
Additional Information
Specifications:
- Dimensions and weight:
