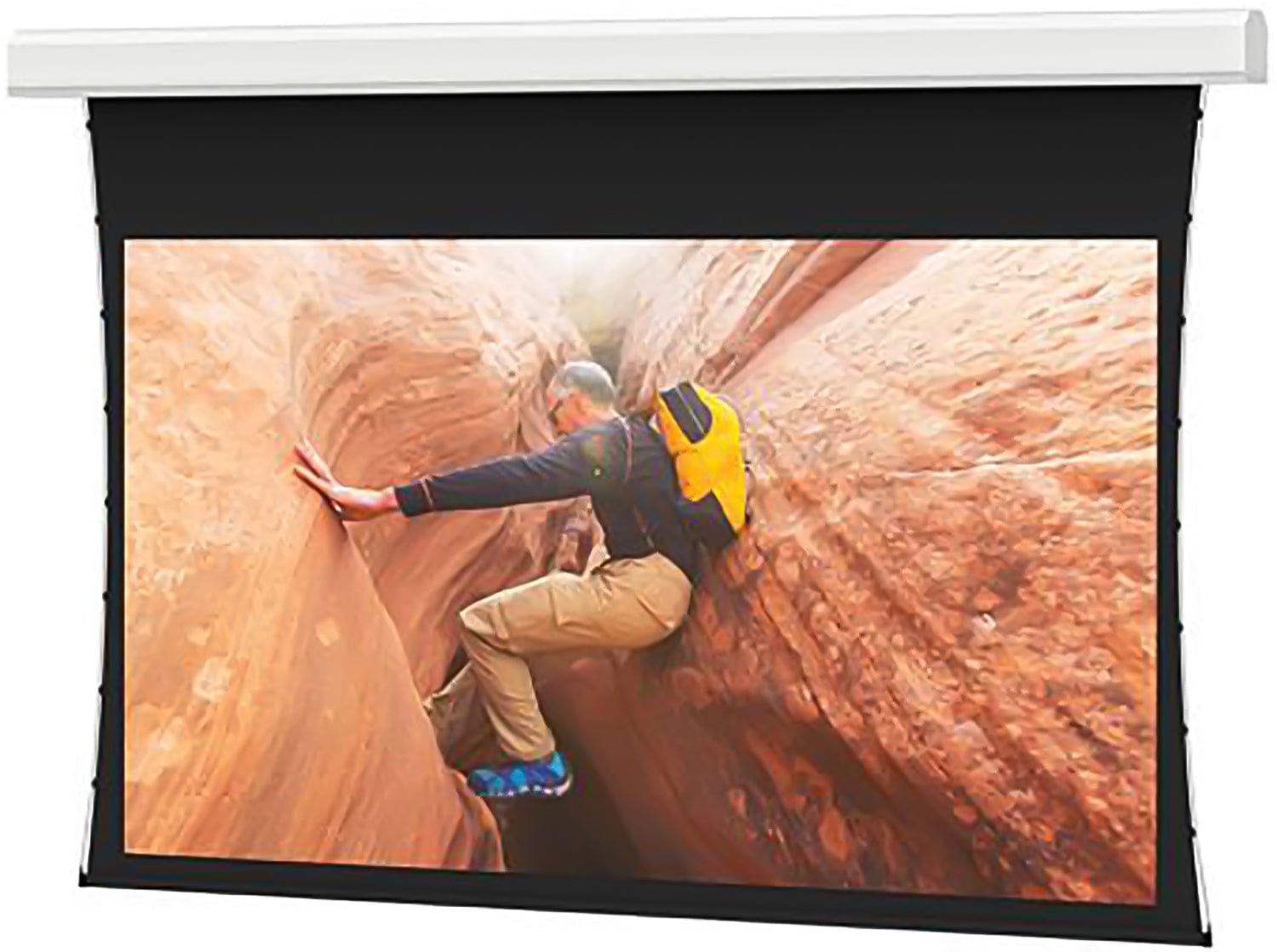

Da-Lite 14117L Tensioned Advantage Series Complete 135x216 Ceiling Recessed Electric Screen
Model 14117L
Price on Request
Availability: In Stock
- Authorized Da-Lite Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Da-Lite 14117L Tensioned Advantage Series Complete 135x216 Ceiling Recessed Electric Screen
The Da-Lite Tensioned Advantage ceiling recessed electric screen series is designed with integrated ceiling trim, concealing the rough opening and eliminating the need for additional trim work post-installation. Its two-stage installation process allows the screen case to be installed during rough-in construction, with the screen surface assembled during the finishing stage. Featuring the SightLine cable drop system, the screen creates a floating effect with a suspension system of 3 or 4 thin cables. This system enables variable drop distances up to 70", offering flexibility for screen positioning and maintaining a clean, professional appearance while providing space for speaker or camera placement.
Why this product
Key Benefits
-
Standard Low Voltage Control (LVC) with optional control systems
-
UL Plenum rated case
-
White powder-coated case for a clean aesthetic
-
Decora-style three-button wall switch included
-
Standard 12" black drop (2" for Parallax Pure)
-
Smooth Roll Technology for a perfectly flat screen
-
TruGuide Electric Screen Tensioning System for optimal surface smoothness
-
Black backing standard for brightness retention on front projection surfaces
-
Seamless surfaces available on all models
Technical details
Technical Specifications
Display
- Screen Size
- 135" x 216" (Wide 16:10), or 255" diagonal
- Surface
- HD Progressive ReView 0.9 (formerly Dual Vision)
Control & Management
- Control
- Standard Low Voltage Control (LVC)
Installation & Mounting
- Installation
- Ceiling Recessed with Slot
Power
- Voltage
- Standard 120V (60Hz)
General
- Drop
- Standard Black Drop
