Product details
Overview

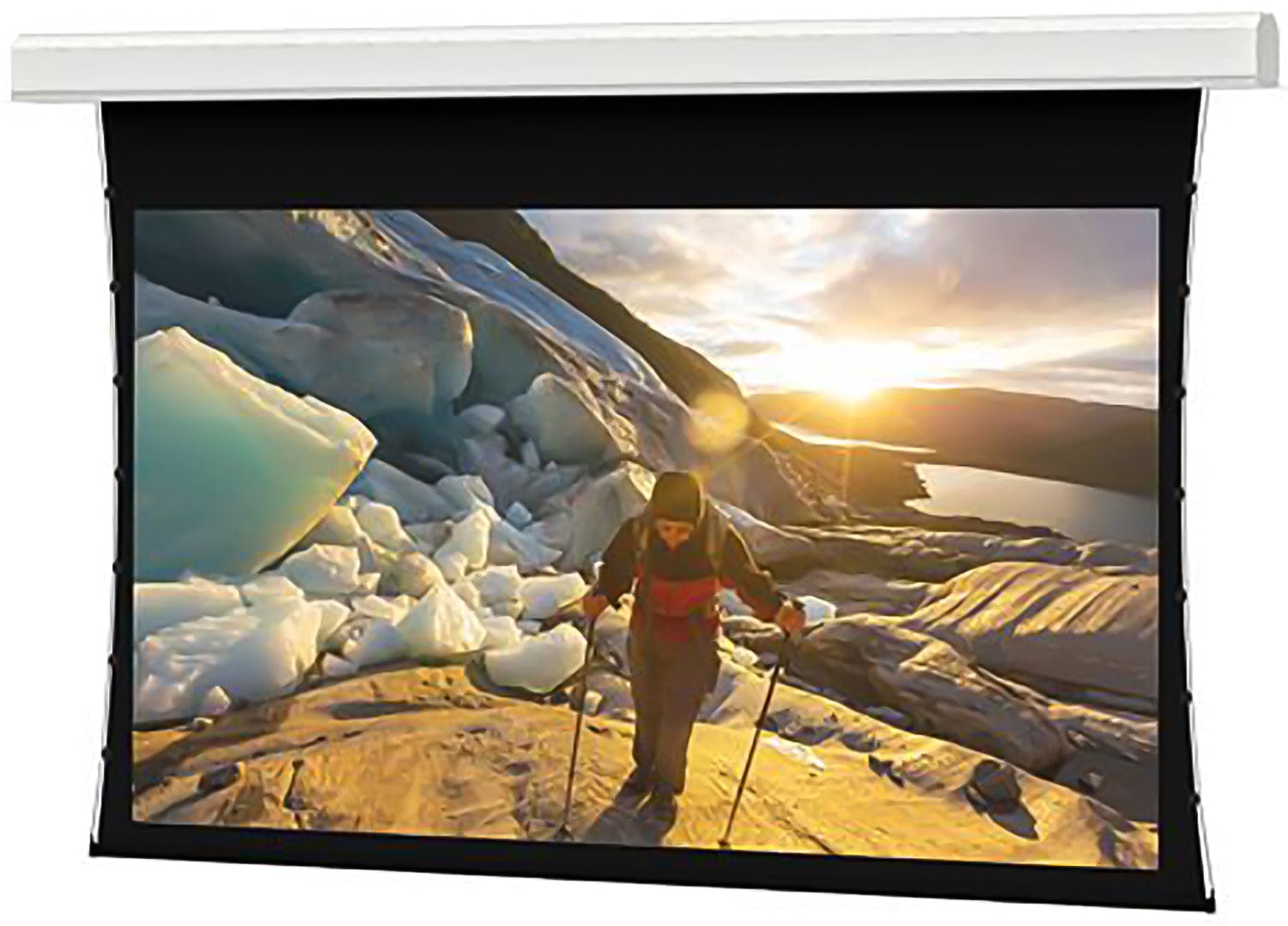

Da-Lite 70230 Tensioned Advantage Series Complete 110x176 Ceiling Recessed Electric Screen
The Tensioned Advantage ceiling recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the screen housing to the structure above the drop ceiling.
Why this product
Key Benefits
-
Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexiblity
-
UL Plenum rated case
-
White powder-coated case for a clean aesthetic
-
Decora-style, three-button wall switch
-
All sizes standard with 12" of black drop except for Parallax Pure which is standard with 2"
-
Smooth Roll Technology to keep your screen perfectly flat
-
TruGuide Electric Screen Tensioning System provides optimal viewing surface smoothness
-
Standard black backing retains projected brightness on front projection surfaces
-
Seamless surfaces in all models
Technical details
Technical Specifications
Display
- Screen Type
- Electric
- Surface
- HD Progressive 1.1 Contrast
- Format
- Wide (16:10)
- Viewable Diagonal
- 208"
- Viewable Width
- 176"
- Viewable Height
- 110"
Installation & Mounting
- Mount Type
- Ceiling Recessed
- Motor
- Standard 120V (60Hz)
Shipping & Packaging
- Ship Length
- 216"
- Ship Width
- 18"
- Ship Height
- 23"
- Ship Weight
- 653 lbs
- Freight Class
- 125
Model & Identification
- Projection Series
- Tensioned Large Advantage Deluxe Electrol
- Product Selection
- Complete Screen
