d&b audiotechnik 10S 10-Inch Passive Loudspeaker - Weather-Resistant
Model Z1618-100
Price on Request
Availability: In Stock
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Max SPL: 130 dB
- Weather Rating: IP55 (Dust, humidity, and maritime coastal protection)
- Application: Premium Fixed Installations (Outdoor & Indoor)
- Enclosure: Marine Plywood with rotatable CD Horn
- Authorized d&b audiotechnik Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Uncompromised German Engineering, Built for the UAE Climate

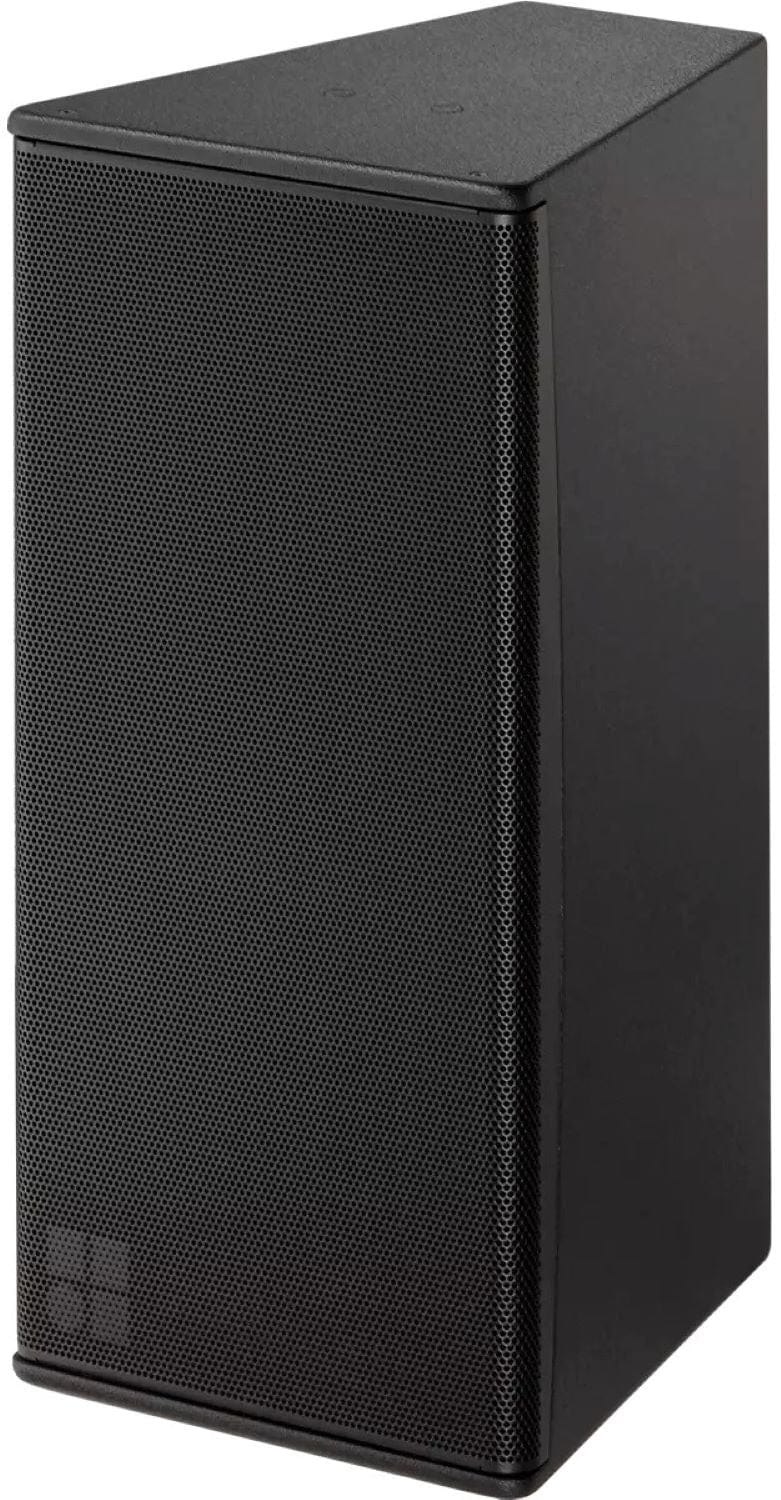

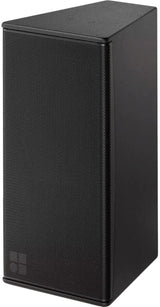

d&b audiotechnik 10S 10-Inch Passive Loudspeaker (Weather-Resistant WR Option)
Elevate your venue’s acoustic landscape with the d&b audiotechnik 10S Weather-Resistant (WR) loudspeaker, available at CorporateAV.ae. Hailing from d&b’s esteemed xS-Series, the 10S is an installation-specific, high-performance 2-way passive point source speaker designed to deliver pristine, high-fidelity sound under challenging environmental conditions.
Equipped with the Weather Resistant (WR) option, this model features an IP55 rating, making it perfectly sealed against heavy dust, humidity, and outdoor elements. It is the ultimate premium audio choice for luxury resort beach clubs, high-end outdoor restaurant terraces, open-air corporate amphitheatres, and prestigious theme parks across Dubai, Abu Dhabi, and the wider UAE.
The d&b 10S incorporates a powerful 10-inch neodymium low-frequency driver alongside a 1.4-inch exit compression driver mounted to a large, rotatable constant directivity (CD) horn. This intelligent design allows for ultra-precise pattern control, ensuring your acoustic energy is thrown exactly where the audience is, while minimizing unwanted reflections off structural glass and hard architecture.
Technical details
Technical Specifications
System
- System Configuration
- Installation-specific 2-way passive point source
- Drivers
- 10" LF with Neodymium magnet / 1.4" HF compression driver
Frequency
- Frequency Response (-5 dB)
- 60 Hz – 18 kHz (Full Range)
Performance & Coverage
- Max. Sound Pressure (SPL)
- 130 dB (with D40 / D80 / 40D amplifiers)
- Nominal Dispersion (H x V)
- 75° x 50° (Rotatable CD Horn)
Power
- Nominal Impedance
- 12 Ohms (Allows up to 3 cabinets chained per amp channel)
- Power Handling (RMS / Peak)
- 200W / 1200W
Connectivity
- Connectors
- 2 x NL4 and a recessed 2-pole screw terminal block
Physical
- Enclosure Material & Rating
- Marine Plywood, Impact-Resistant Paint, IP55 Rating
- Dimensions (H x W x D)
- 580 mm x 283 mm x 350 mm
- Weight
- 13 kg (29 lbs)
More details
Additional Information
Key Performance Benefits for Systems Integrators:
-
IP55 Weather Protection: Engineered with a specialized marine plywood enclosure, impact-resistant finishes, and an acoustically transparent, hydrophobic fabric backing behind the rigid metal grill to withstand intense humidity and coastal environments.
-
Rotatable 75° x 50° Dispersion: The internal HF horn can be easily rotated by 90 degrees, granting complete architectural flexibility for either seamless vertical or low-profile horizontal mounting orientations.
-
Extreme SPL-to-Size Ratio: Weighing just 13 kg, this compact box delivers a staggering 130 dB Max SPL when paired with d&b installation amplifiers, providing massive, undistorted headroom for speech and live audio.
-
Aesthetic Customization: Built to blend flawlessly into premium architectural concepts. Beyond its standard weather-proofing, it supports Special Colour (SC) options executable in any RAL color palette to match your interior design.
Architectural Integration & Solution Engineering
The rear panel of the 10S cabinet features integrated M8 threaded inserts, while the top and bottom panels incorporate a pair of M10 threaded inserts. This enables integration with a wide array of d&b structural rigging accessories, including wall mounts, flying brackets, and horizontal pipe clamps.
At CorporateAV.ae, we provide more than just elite hardware. Our certified engineering team handles full ecosystem integration—from predictive acoustic mapping using d&b ArrayCalc and venue lighting calculations, to custom rack topology featuring d&b 5D, 10D, or 40D smart DSP amplifiers.
Contact our commercial AV integration desk today to request a custom quote, arrange a site survey, or specify the d&b audiotechnik 10S for your upcoming premium commercial development in the Middle East.
