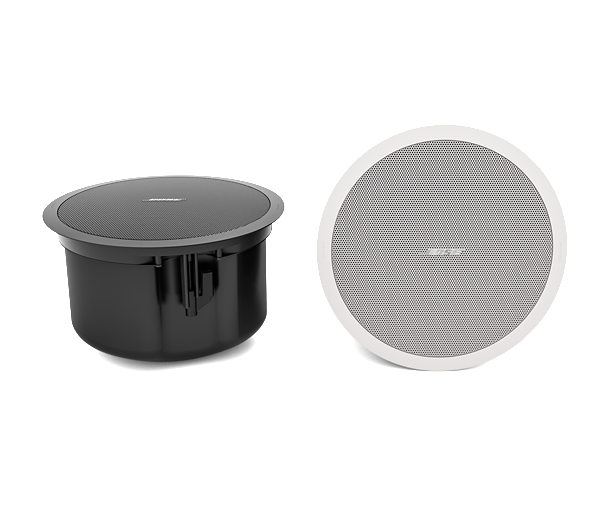

Bose FreeSpace FS4CE Black Pair
Model 841156-0320
Price on Request
Availability: Contact Us
Call an Expert: +971 56 498 8088 info@corporateav.ae
- Driver: 4.5-inch full-range
- Frequency range (-10 dB): 70 Hz–17 kHz
- Continuous power handling: 40 W, current model specification
- Coverage: 145° conical
- Connection: 70/100 V transformer or 8 Ω bypass
- Authorized Bose Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
What is the Bose FreeSpace FS4CE Black Pair?
The black Bose FreeSpace FS4CE pair provides passive ceiling-mounted sound for background music and announcements. Its 4.5-inch driver and selectable 70/100 V transformer or 8-ohm bypass suit a planned commercial audio circuit. Corporate AV can help specify the equipment and setup for projects in Dubai, Abu Dhabi and across the UAE.
FS4CE is a passive installation speaker, so it needs an external amplifier and speaker cable. Choose the circuit type and tap setting before calculating the amplifier load.
- Frequency range (-10 dB): 70 Hz–17 kHz.
Use cases
Applications
-
Retail background music
-
Hospitality paging and music
-
Commercial meeting and circulation spaces
Technical details
Technical Specifications
System
- Driver
- 4.5-inch full-range
- Driver
- 4.5-inch full-range.
Frequency
- Frequency range (-10 dB)
- 70 Hz–17 kHz
Performance & Coverage
- Coverage
- 145° conical
- Coverage
- 145° conical.
Power
- Continuous power handling
- 40 W, current model specification
- 100 V taps
- 5, 10, 20, 40 W
- 70 V taps
- 2.5, 5, 10, 20, 40 W
- Continuous power handling
- 40 W, current model specification.
Connectivity
- Connection
- 70/100 V transformer or 8 Ω bypass
- Connection
- 70/100 V transformer or 8 Ω bypass.
Physical
- Cutout diameter
- 249 mm
- Speaker diameter × depth
- 272 × 172 mm
- Colour
- Black
General
- Model
- FreeSpace FS4CE Black Pair
- Manufacturer part number
- 841156-0320
- Environment
- IP55; follow installation and input-cover requirements
In the box
What's Included
-
Two black FreeSpace FS4CE loudspeakers
-
Cutout template
-
Two weather-resistant input covers
Installation
Installation & Mounting
Recommended Compatible Equipment
Bose FreeSpace IZA 190-HZ 1-Channel DSP Amplifier. FreeSpace IZA 190-HZ is an option for a correctly sized 70/100 V circuit. Match tap totals and headroom to its 90 W output; use a suitable low-impedance amplifier instead for 8-ohm bypass operation.
Installation
Check ceiling cutout, depth, structure and any required tile bridges. Provide the specified safety attachment and configure 70 Hz high-pass protection at at least 24 dB/octave.
Ownership and support
Ownership & Support
Warranty
Confirm the applicable UAE warranty, regional SKU and service arrangements on the quotation.
Support
Share your FreeSpace FS4CE Black Pair quantity, connected equipment and UAE project location with Corporate AV for a quotation covering the required accessories and setup.
