Bose

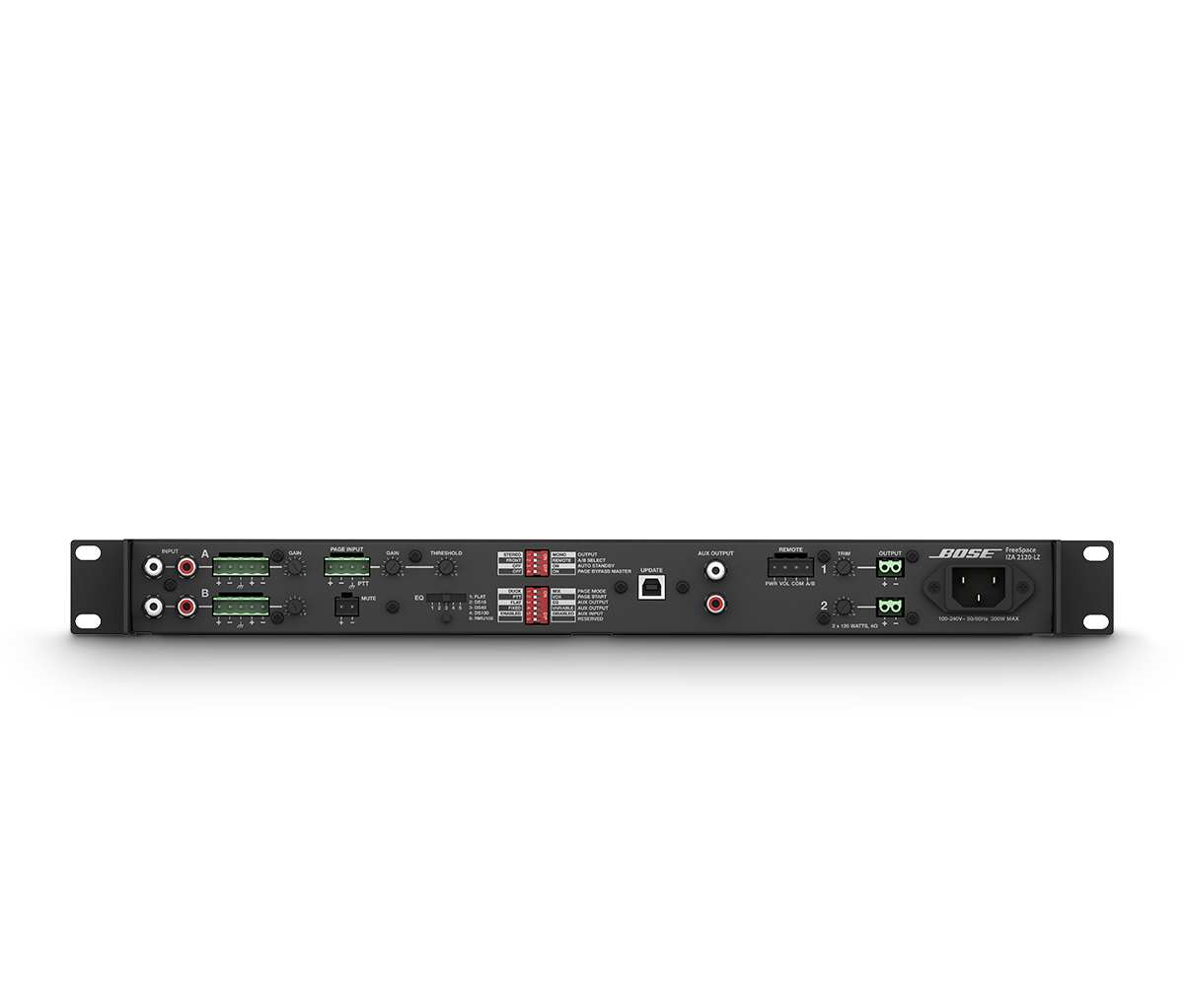

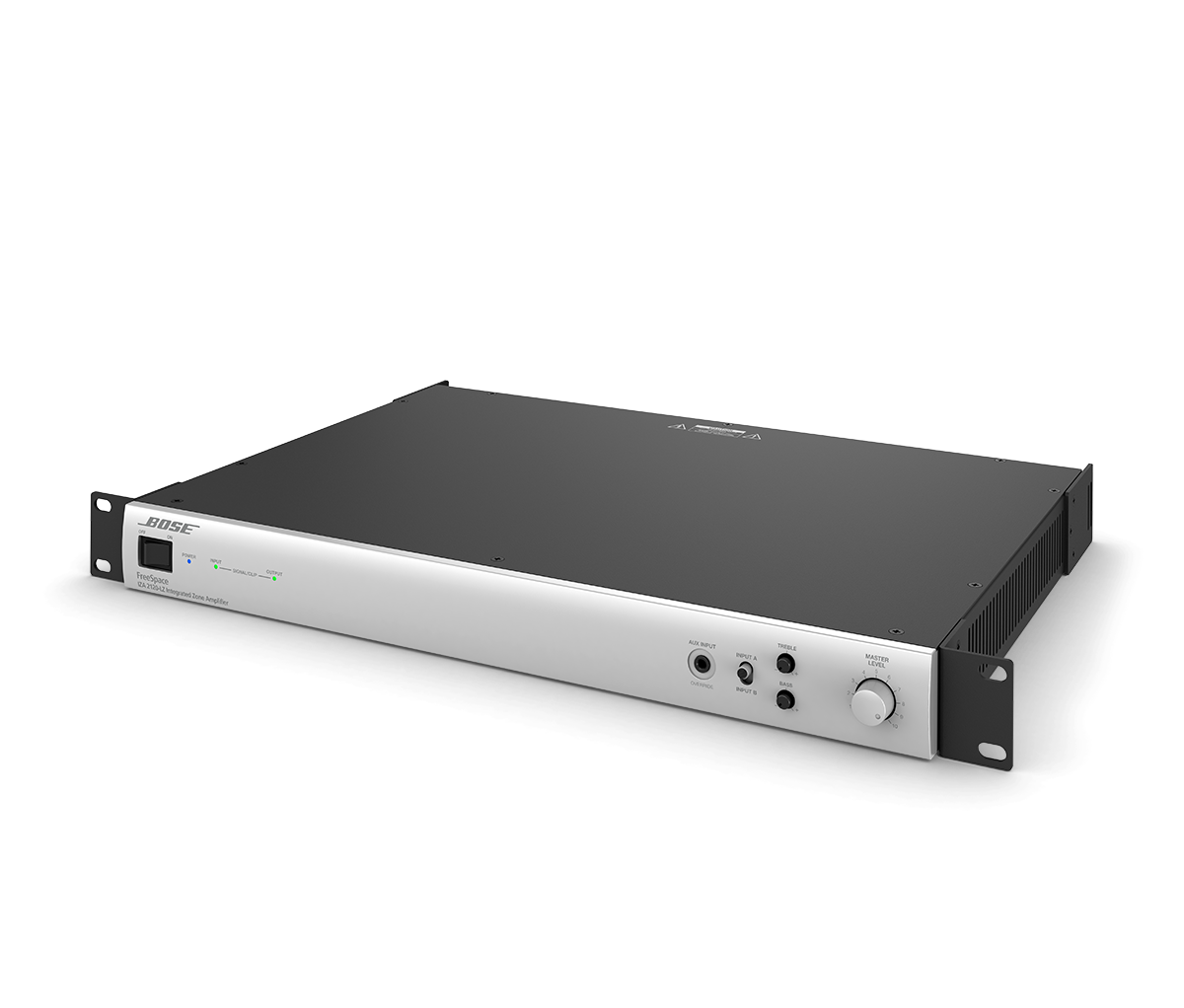

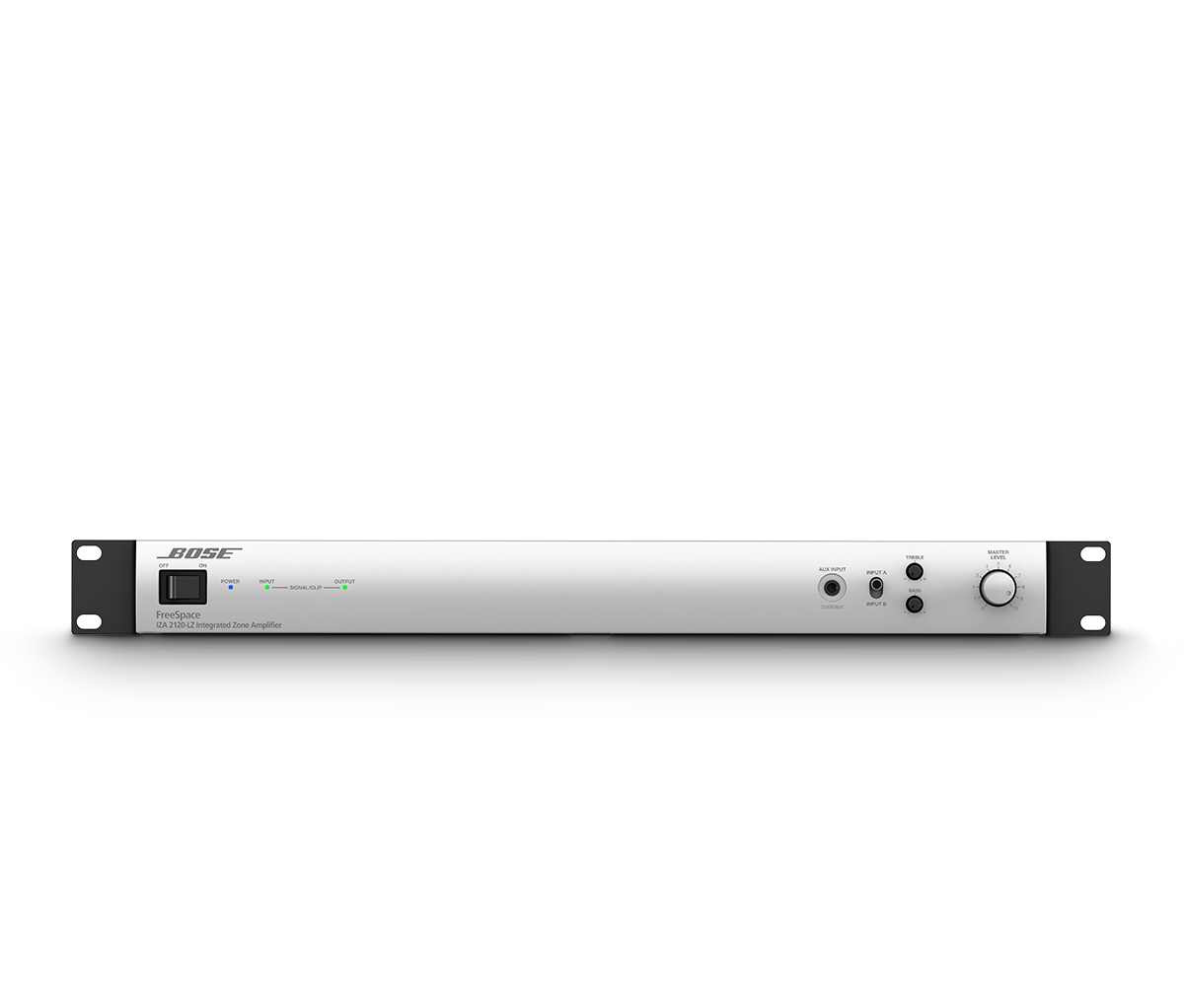

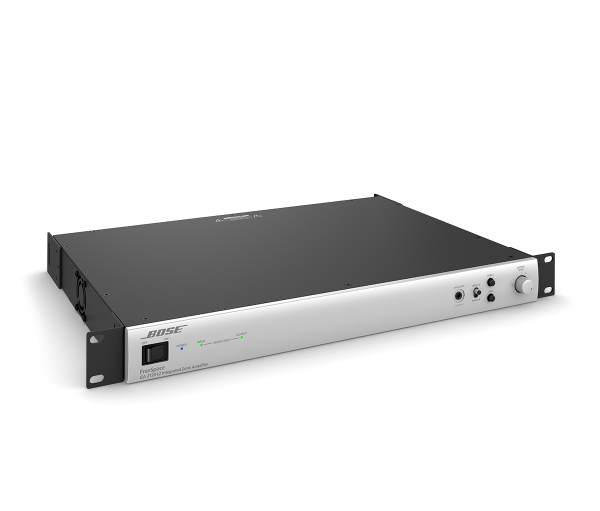

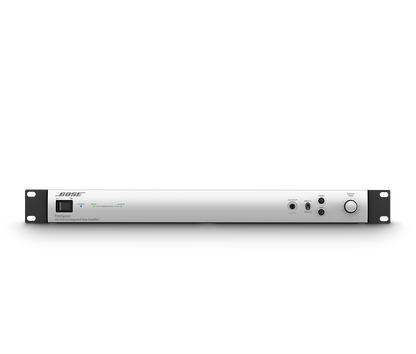

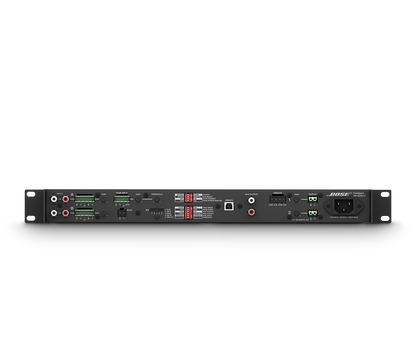

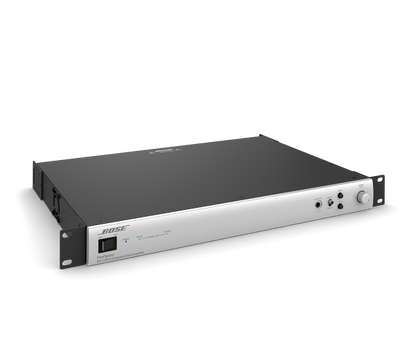

Bose FreeSpace IZA 2120-LZ 2-Channel DSP Amplifier

Model 719782-2440

Price on Request

Availability: Contact Us

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • 2 amplified output channels; 4/8 Ω low-impedance
  • 120 W per channel at 4 Ω / 60 W per channel at 8 Ω
  • Onboard processing; configure the speaker protection
  • 100–240 VAC (±10%), 50/60 Hz
Boardrooms & Meeting Rooms Part of our complete AV solutions Explore Solutions
Bose FreeSpace IZA 2120-LZ 2-Channel DSP Amplifier
  • Authorized Bose Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

What is the Bose FreeSpace IZA 2120-LZ?

The Bose FreeSpace IZA 2120-LZ is an integrated zone amplifier for background music and paging, with local operating controls and model-specific speaker outputs. The published output rating is 120 W per channel at 4 Ω / 60 W per channel at 8 Ω. Corporate AV can specify the speaker circuits, source equipment and installation scope for your UAE project.

This amplifier drives compatible passive loudspeakers as part of an installed sound system. It does not include the speakers, source devices or complete site wiring. Set the input, loudspeaker EQ and paging controls using the amplifier's front and rear panels. Match the HZ or LZ output type to the loudspeaker wiring; they are different amplifier versions.

Why this product

Key Benefits

  • Loudspeaker connection

    4/8 Ω low-impedance; calculate each speaker circuit before connection.

  • System setup

    Set the input, loudspeaker EQ and paging controls using the amplifier's front and rear panels. Match the HZ or LZ output type to the loudspeaker wiring; they are different amplifier versions.

  • System integration

    Specify the source, amplification, speaker load and room controls as one complete system.

Use cases

Applications

  • Commercial music and paging

    Plan speaker loads and operating levels around the required zones.

  • Corporate and hospitality spaces

    Specify sources, room controls and cabling alongside the amplifier.

  • Installed audio upgrades

    Check the existing speaker type, line voltage and processing before substituting an amplifier.

Technical details

Technical Specifications

System

Output Configuration
4/8 Ω low-impedance
DSP / Processing
Onboard processing; configure for the connected speakers

Connectivity

Amplified Output Channels
2
Rated Output
120 W per channel at 4 Ω / 60 W per channel at 8 Ω
Analogue Input Channels
2 unbalanced, line + 2 balanced, line + 1 balanced, mic/line (page) + 1 unbalanced, line (auxiliary)
Mains Input
100–240 VAC (±10%), 50/60 Hz
Output design
120 W per channel at 4 Ω / 60 W per channel at 8 Ω

Physical

Dimensions (H × W × D)
1.7 in × 19.0 in × 12.8 in (44 mm × 483 mm × 324 mm)
Net Weight
9.0 lb (4.1 kg)

General

Model
FreeSpace IZA 2120-LZ
Manufacturer Part Number
719782-2440

In the box

What's Included

  • (1) owner's guide

  • (4) feet with locking pins

  • (2) 5-pin Euroblock connectors

  • (3) 2-pin Euroblock connectors

  • (1) FreeSpace IZA 2120-LZ amplifier

  • (2) 4-pin Euroblock connectors

  • (1) AC power cord

Installation

Installation & Mounting

Recommended Compatible Loudspeaker

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair) is a compatible passive-speaker option in the supported low-impedance configuration. Calculate the combined circuit impedance, required power and speaker protection for the actual quantity.

Installation

Check speaker type, output mode, load, signal routing, protection settings, ventilation and the available electrical supply before commissioning. Set the input, loudspeaker EQ and paging controls using the amplifier's front and rear panels. Match the HZ or LZ output type to the loudspeaker wiring; they are different amplifier versions.

Ownership and support

Ownership & Support

Warranty

Confirm the applicable UAE warranty and service arrangements for the supplied SKU. Identify any optional support plan separately.

Support

Provide the FreeSpace IZA 2120-LZ quantity, speaker schedule, source equipment and site location for an itemised Corporate AV proposal in Dubai, Abu Dhabi or another UAE emirate.

Complete your solution

Recommended Accessories

Expert FAQs

What output power does the Bose IZA 2120-LZ provide?

120 W per channel at 4 Ω / 60 W per channel at 8 Ω. Output depends on the documented load and operating mode; do not treat a shared total as the power available independently on every channel.

What type of loudspeaker wiring can I use with IZA 2120-LZ?

4/8 Ω low-impedance. Match the amplifier setting to the speaker circuit, calculate the complete load and apply the manufacturer's protection settings. Do not assume HZ and LZ models are interchangeable.

Does IZA 2120-LZ include DSP or require separate processing?

Set the input, loudspeaker EQ and paging controls using the amplifier's front and rear panels. Match the HZ or LZ output type to the loudspeaker wiring; they are different amplifier versions.

Does IZA 2120-LZ include network or wireless audio?

Use the published wired input interfaces. A Bluetooth or Dante connection should not be assumed unless it is explicitly specified or supplied.

Which speakers can I consider with IZA 2120-LZ?

Bose DesignMax DM3C In-Ceiling Loudspeaker - White (Pair). is a compatible passive-speaker option in the supported low-impedance configuration. Calculate the combined circuit impedance, required power and speaker protection for the actual quantity.

How many speakers can IZA 2120-LZ support?

For 70/100 V systems, total each speaker's selected transformer tap per channel and allow the required headroom. For low-impedance systems, calculate the combined impedance and power requirements. Quantity depends on the complete design rather than the number of output terminals.

What is included with IZA 2120-LZ?

The supplied pack lists (1) owner's guide; (4) feet with locking pins; (2) 5-pin Euroblock connectors; (3) 2-pin Euroblock connectors; (1) FreeSpace IZA 2120-LZ amplifier; (2) 4-pin Euroblock connectors; (1) AC power cord. Confirm the exact regional cord and connectors. Other system equipment is separate unless itemised on the quotation.

How can I request a Bose FreeSpace IZA 2120-LZ quotation in the UAE?

Ask Corporate AV for FreeSpace IZA 2120-LZ, the quantity and your speaker-circuit requirements. Call +971 56 498 8088, WhatsApp our team or email info@corporateav.ae. Confirm availability, warranty, lead time and installation scope on the quotation.
