JBL Professional

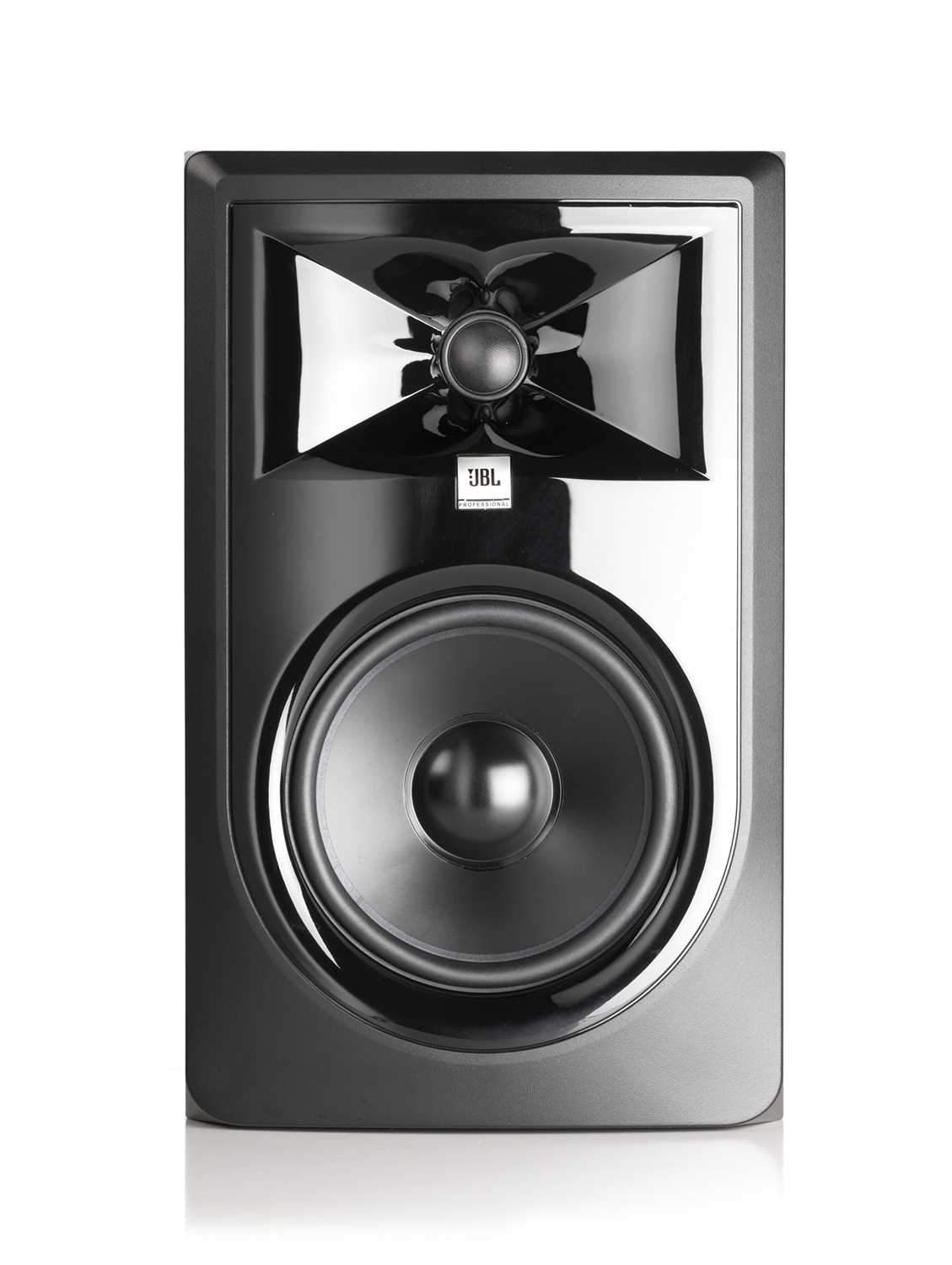

JBL 306P MkII Studio Monitor

Model 306P-MKII

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

  • Authorized JBL Professional Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

JBL 306P MkII Powered 6" Two-Way Studio Monitor

The next-generation JBL 306P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

JBL 306P MkII has been equipped with acclaimed 3 Series transducers that now perform even better. Hear deep, accurate and tightly controlled bass, thanks to a long-throw 6.5" woofer and the patented JBL Slip Stream™ low-frequency port. Enjoy soaring, immaculately detailed highs, via its woven-composite 1" Neodymium tweeter. JBL engineers took things to the next level with faster HF transient response through fine-tuned ferrofluid damping, and greater low-frequency linearity and reduced harmonic distortion courtesy of an enhanced woofer design. The result is a studio monitor you can trust—with unmatched performance, stunning imaging and neutral frequency response that’s unbeatable in its class.

The dimensions and acoustics of a room can have a major effect on sonic accuracy, and that’s why JBL 306P MkII lets you adjust the response to fit your studio. The new Boundary EQ attenuates the low-end boost that can occur when you place monitors directly on the desktop or near walls. The 3-position HF Trim switch allows you to adjust the high-frequency response of the 306P MkII to tailor it to room acoustics or personal tastes.

Reveal impressive detail, ambience and depth in your mixes with JBL 3 Series’ groundbreaking Image Control Waveguide. Originally developed for JBL’s flagship M2 Master Reference Monitor, this patented innovation ensures an acoustically seamless transition between the low- and high-frequency transducers and provides an immersive soundstage, with precise imaging. Offering a wide sweet spot and neutral frequency response, JBL 306P MkII delivers a crystal clear representation of your mix, revealing subtle details, even when listening off-axis.

JBL 306P MkII is ready for the most demanding production styles right out of the box. With 112 watts of total power, the dual, integrated Class-D power amplifiers, custom designed by JBL for each transducer, give you generous dynamic range for any project. From music production and podcasting to cinematic sound design or daily vlogging, enjoy the output and power you need to hear exceptional detail at any volume— even at peak SPL. Simply plug in, power on, and start creating.

See it in detail

Product Video

Why this product

Key Benefits

  • Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot

  • Next-generation JBL transducers for optimized transient response and improved linearity

  • Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels

  • Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range

  • New Boundary EQ settings compensate for low-frequency variants introduced by the environment

  • HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

  • Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control

  • Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space

  • Strenuous JBL 100-hour full-power test ensures years of reliability

  • Sleek, modern design provides a visual upgrade to any studio

Technical details

Technical Specifications

System

LF Driver Size
165mm (6.5")
HF Driver Size
25mm (1")
HF Driver Type
Soft Dome
Crossover
1425hz 4th Order Acoustic Linkwitz-riley
Power Configuration
Bi-amplified
HF Driver Power Amp
56w, Class-d
LF Driver Power Amp
56w, Class-d
HF Trim Control
-2db, 0db, +2db

Frequency

Frequency Response (±3db)
47hz – 20khz
Frequency Range (-10db)
39hz – 22khz
Low Frequency Extension (-10db)
39hz

Performance & Coverage

Input Sensitivity (-10dbv Input)
92db / 1m
Maximum Continuous Spl*
92db
Maximum Peak Spl**
110db
System Distortion Criteria
<10% Thd At Maximum Output With Full Compressor / Limiter Engagement
Signal To Noise Ratio
75dba (a-weighted), 70dbr (unweighted), Relative To 2.83vrms Output
Coverage Horizontal X Vertical
120° X 90°

Connectivity

Analog Input Types
1 X Xlr Female, 1 X Trs Female, Balanced
Input Voltage
100 – 240vac (±10%), 50 / 60hz

Physical

Enclosure Type
Ported
Enclosure Construction
15mm Mdf
Enclosure Finish
Matte Black PVC
Baffle Construction
Injection-molded Structural Abs
Cabinet Dimensions (h X W X D***)
361 X 224 X 282mm (14.2" X 8.8" X 11.1")
Net Weight
6.1 Kg (13.42 Lbs)

Shipping & Packaging

Display Carton (h X W X D)
408 X 285 X 328mm (16.1" X 11.2" X 12.9")
Shipping Carton (h X W X D)
418 X 292 X 338mm (16.5" X 11.5" X 13.3")
Shipping Gross Weight
7.25 Kg (15.95 Lbs)

More details

Additional Information

Specifications:

  • OK For Use Near Magnetically Sensitive Equipment
  • Maximum Peak Input Level (-10dbv / +4dbu): +6dbv / +20.3dbu
  • Electrical Distortion Criteria: 0.2% Thd @ 1khz / 2.83vrms Output; <1% thd @ 1khz, Full Rated Output
  • Boundary Eq: Lf Shelf @ 50hz: -3db, -1.5db, 0db Ac
