JBL 705P Monitor
Model 705P
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

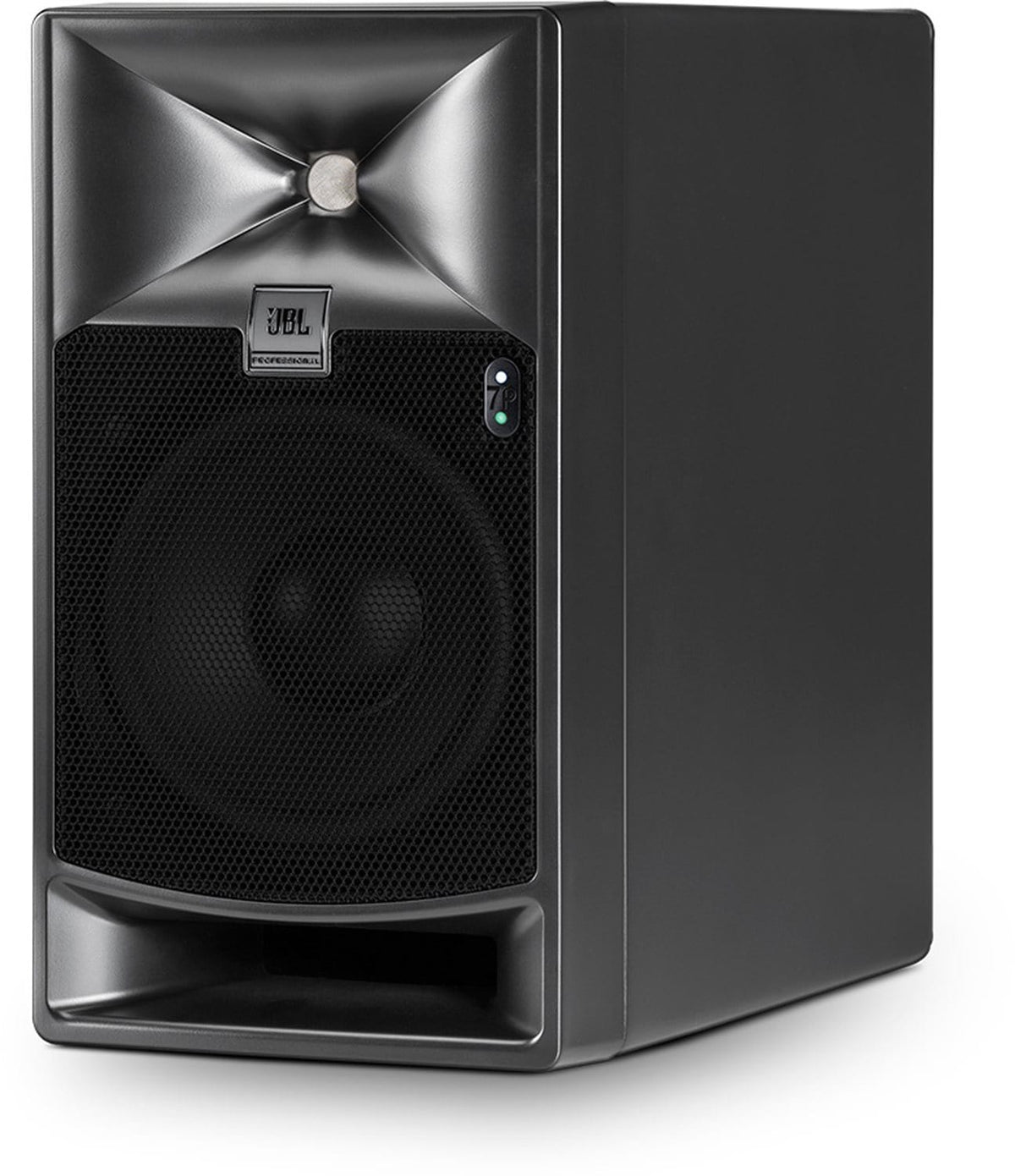

JBL 705P Self-powered Reference Monitor
The JBL 705P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The JBL 705P leverages the same patent-pending driver technologies and JBL’s renowned Image Control Waveguide found in the 708P and the flagship M2, but with a smaller footprint. Despite its compact size, JBL 705P delivers an eye-opening level of output, well beyond that of existing, comparably-sized studio monitors, for greater dynamic range and greater working distances. The speakers deliver an expansive soundstage and pristine accuracy in a broad range of rooms.
See it in detail
Product Video
Why this product
Key Benefits
-
Next-generation JBL driver technology
-
Patent-pending JBL Image Control Waveguide
-
Integrated dual amplification system with internal floating-point DSP
-
Comprehensive room EQ and delay controls
-
Compact enclosures for easy placement and installation
-
JBL 725G low-frequency transducer delivers low-distortion and high SPL
-
JBL 2409H high-frequency transducer with low-mass annular diaphragm
-
JBL-designed patent-pending Image Control Waveguide
-
2-channel Class-D amplifier HF 250W / LF 250W
-
192 kHz, 32-bit floating point processing
-
12 bands of Room EQ, 8 bands of User EQ
-
6 factory presets, 6 user-defined presets
-
18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
-
1 x XLR-1/4" balanced combination analog audio input
-
1 x XLR AES3 format digital input with 1 x XLR pass-through output
-
Digital input accepts sample rates of up to 192 kHz
-
User-enabled sample rate converters
-
RJ-45 network connection for Harman HiQnet connectivity
-
Rear-panel multi-function controls and LCD display allow selection of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
-
Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
-
Protective steel grilles
Technical details
Technical Specifications
System
- HF Driver
- 2409H
- LF Driver
- 725G
Frequency
- Frequency Range
- 39Hz – 36 kHz
- Dividing Network Transition Frequency
- 1.9 kHz
Performance & Coverage
- Max SPL
- (80 Hz - 20 kHz) >101 dB SPL / 1m
- Maximum Peak SPL
- (80 Hz - 20 kHz) >107 dB SPL / 1m
Connectivity
- Input Types
- 1 x XLR-1/4" balanced combination analog audio input 1 x XLR AES3 format digital input with 1 x XLR pass-through output Digital input will accept sample rates up to 192 kHz
Physical
- Dimensions (HxWxD)
- 10.5 x 5.875 x 8.125 in (267 x 149 x 206 mm)
- Weight Each
- 9.0 lb (4.08 kg)
- Enclosure
- Birch plywood reinforced for mounting
- Mounting
- Top, bottom and rear mounting points. 2-hole mounting pattern
More details
Additional Information
Specifications:
- Frequency Response: -1.5 dB @ 48Hz – 23kHz
