Product details
Overview

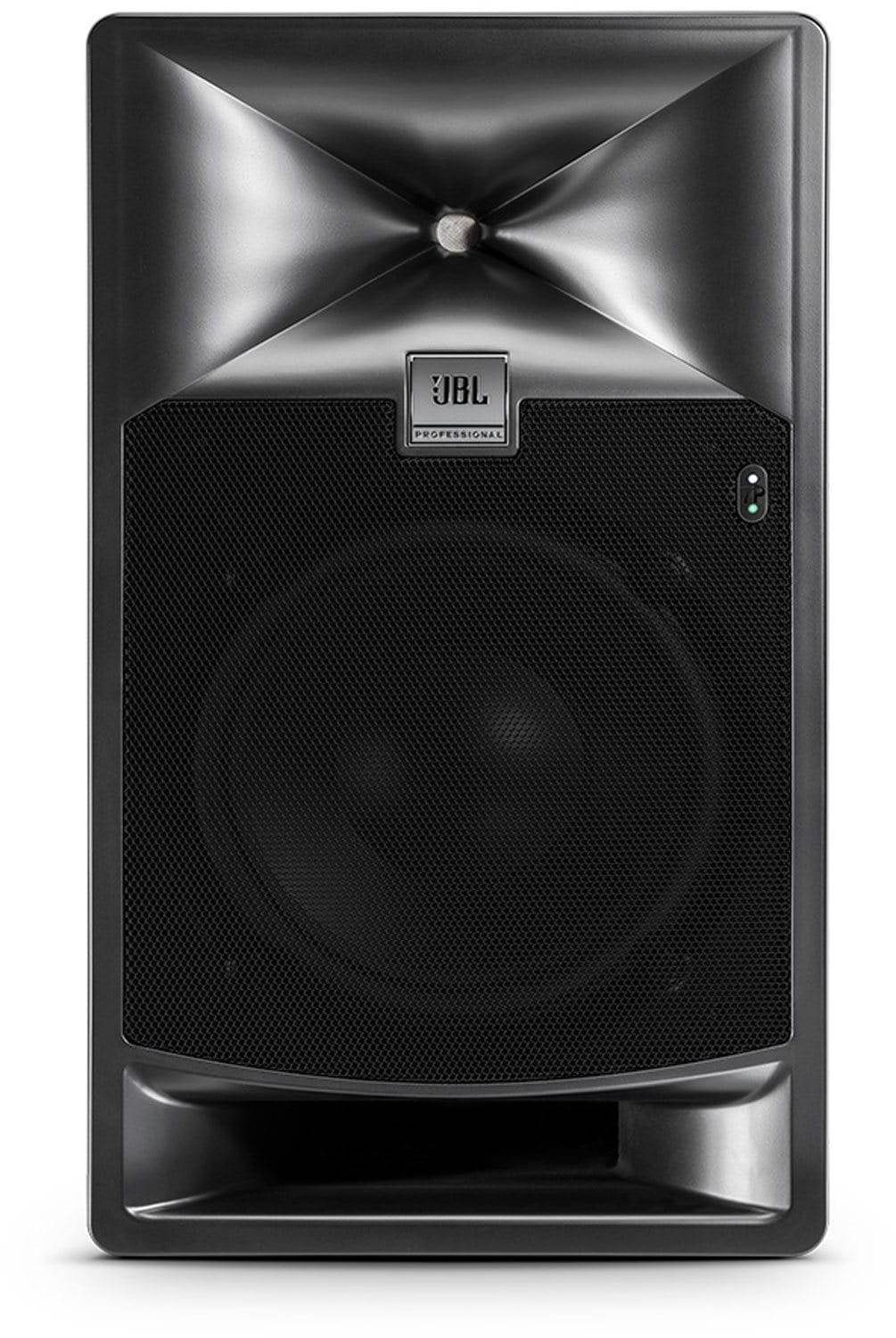

JBL 708P Self-powered Reference Monitor
JBL 708P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The 708P leverages new patent-pending driver technologies and JBL’s renowned Image Control Waveguide to deliver extraordinary output, stunning detail, an expansive soundstage, and greater accuracy in a broad range of rooms. 708P delivers several times the output of other comparably-sized studio monitors, providing significantly greater dynamic range and greater working distances.
See it in detail
Product Video
Why this product
Key Benefits
-
Next-generation JBL driver technology
-
Patent-pending Image Control Waveguide
-
Integrated dual amplification system with internal floating-point DSP
-
Comprehensive room EQ and delay controls
-
Compact enclosures for easy placement and installation
-
JBL 728G low-frequency transducer with patented Differential Drive® allows extended low frequency with low distortion and high SPL
-
JBL 2409H high-frequency transducer with low-mass annular diaphragm
-
JBL-designed patent-pending Image Control Waveguide
-
2-channel Class-D amplifier HF 250W / LF 250W
-
192 kHz 32-bit floating point processing
-
12 bands of Room EQ, 8 Bands of User EQ
-
6 factory presets, 6 user-defined presets
-
18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
-
1 x XLR-1/4" balanced combination analog audio input
-
1 x XLR AES3 format digital input with 1 x XLR pass-through output
-
Digital input will accept sample rates of up to 192 kHz
-
User enabled sample rate converters
-
RJ-45 network connection for Harman HiQnet connectivity
-
Rear-panel multi-function controls and LCD display allow selection of ofinput sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
-
Integrated handles
-
Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
-
Protective steel grilles
Technical details
Technical Specifications
System
- HF Driver
- 2409H
- LF Driver
- 728G
Frequency
- Frequency Range
- 35Hz – 36 kHz
- Dividing Network Transition Frequency
- 1.7 kHz
Performance & Coverage
- Max SPL
- (80 Hz - 20 kHz) >108 dB SPL / 1m
- Maximum Peak SPL
- (80 Hz - 20 kHz) >114 dB SPL / 1m
Connectivity
- Input Types
- 1 x XLR-1/4"" balanced combination analog audio input
Physical
- Dimensions (HxWxD)
- 17.25 x 9.75 x 11.5 in (438 x 248 x 292 mm)
- Weight Each
- 25.2 lb (11.5 kg)
- Enclosure
- Birch plywood reinforced for mounting
- Mounting
- Top, bottom and rear mounting points. 4-hole mounting pattern
More details
Additional Information
Specifications:
- Frequency Response: -1.5 dB @ 45Hz – 23kHz
