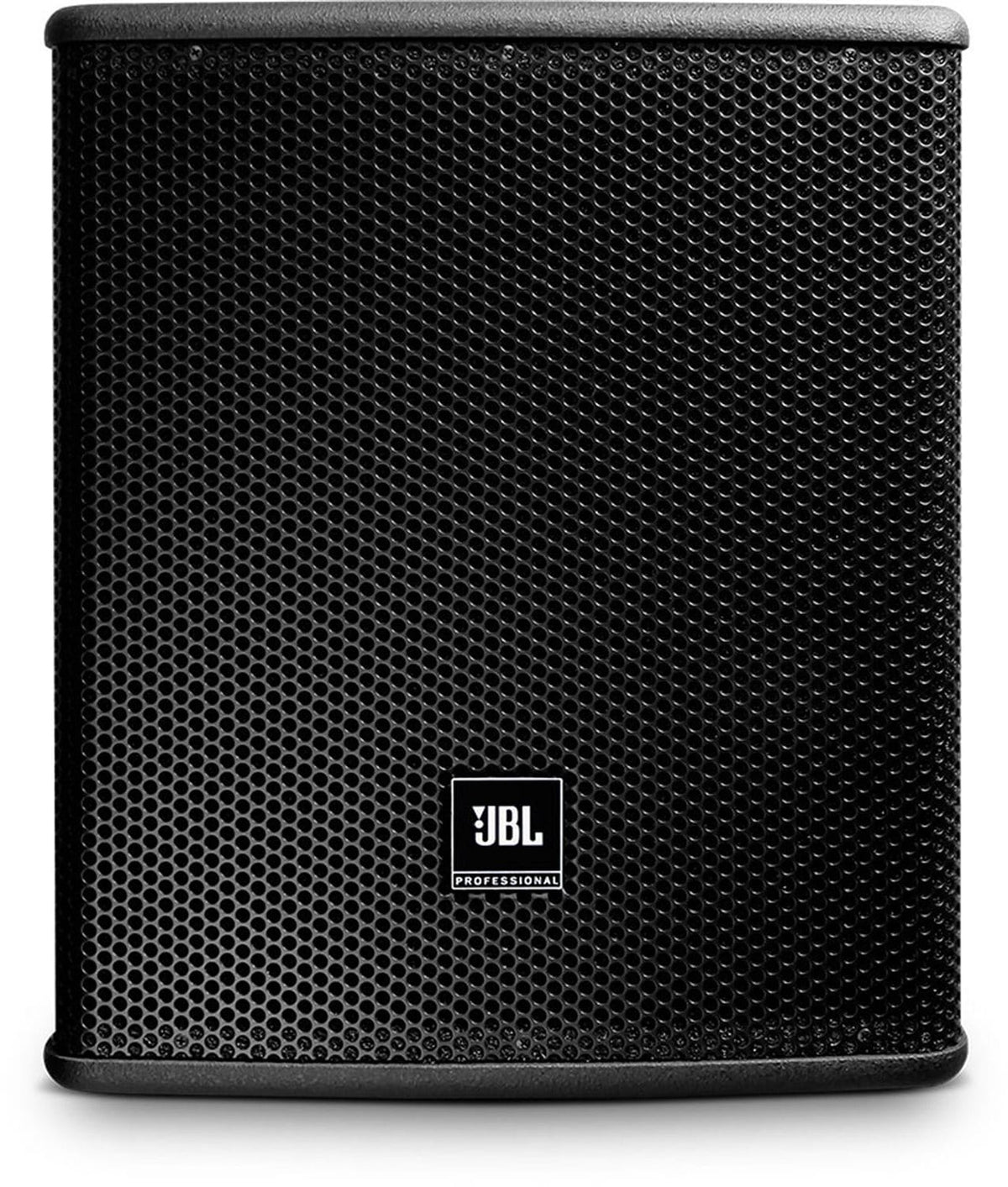

JBL AC118S Subwoofer
Model AC118S
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AC118S 18-Inch Subwoofer
AC118S is a high power subwoofer system comprised of one 459 mm (18 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility. As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.
Why this product
Key Benefits
-
High power and long excursion driver for lower frequency reproduction.
-
High sensitivity with lower power compression
-
Large port for high output and low-frequency reinforcement
-
Multiple Attachment Points for Ultimate Flexibility
-
Robust 18 mm multiply hardwood with textured black finish
Use cases
Applications
-
Performing Spaces
-
Clubs & Bars
-
Houses of Worship
-
Multi-Media Spaces
-
Retail & Hospitality Spaces
-
Presentation Suites
-
Educational Facilities
Technical details
Technical Specifications
System
- Low frequency driver
- 1x 18? woofer (P/N: 5021800), 457.2 mm (18 in) driver with 75 mm (3 in) voice-coil
Frequency
- Frequency Range (-10 dB)
- 32 Hz - 250 Hz
- Frequency Response (±3 dB)
- 40 Hz - 250 Hz
Performance & Coverage
- Maximum SPL(1m)
- 122 dB (128 dB peak)
Power
- Nominal Impedance
- 8 ohms
- Power Rating (Continuous/Program/Peak)
- 450 W/900 W/1800 W
Connectivity
- Input Connector
- Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Physical
- Enclosure Material
- 18 mm multi-ply hardwood plywood
- Grille
- Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
- Finish
- Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
- Suspension / Mounting
- 12 x M10 threaded suspension points
- Dimensions (H x W x D)
- 548 mm x 561 mm x 720 mm 21.5 in x 22.0 in x 28.3 in
- Net Weight
- 32.3 kg (71.2 lbs)
More details
Additional Information
Specifications:
- System Sensitivity (1w @ 1m): 95 dB
