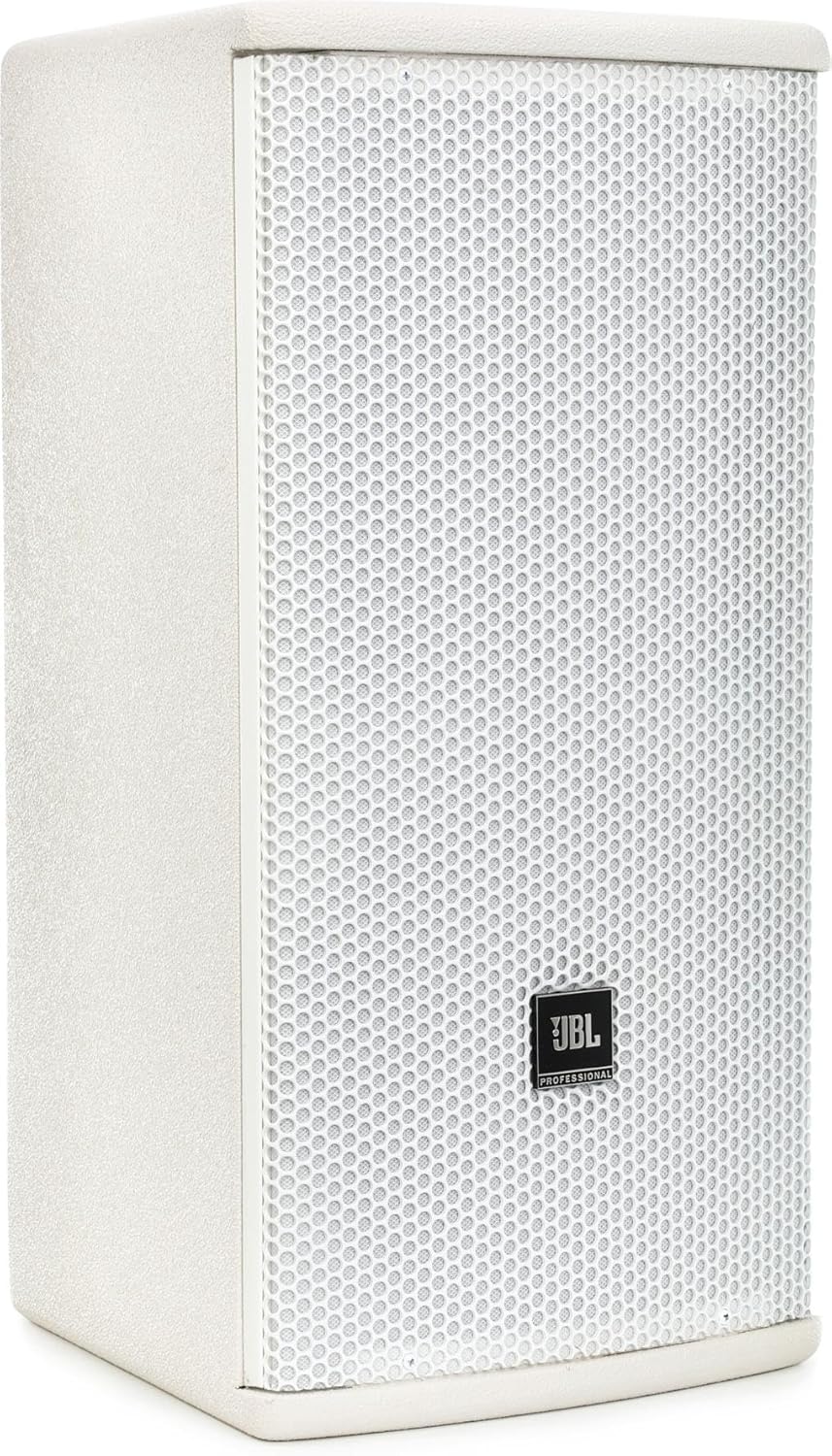

JBL AC18/95 Loudspeaker
Model AC18-95-WH
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AC18/95 Compact 8-inch 2-way Loudspeaker with 90° x 50° Horn
An extension of the industry-leading AE Series, the AE Compact family consists of high-output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker systems, these models are specifically designed to better serve the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.
Why this product
Key Benefits
-
1” Exit Compression Driver Coverage PT™ Waveguide
-
205 mm (8 in) LF transducer
-
Compact enclosure
-
500W Program
-
Dual Neutrik NL4 connectors plus screw terminal
-
FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
-
Attachment points for optional U-bracket, third-party OmniMount® type bracket, and stand mount accessory
Technical details
Technical Specifications
System
- Crossover Modes
- Passive
- LF Driver
- 1 x JBL 228H, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
- HF Driver
- 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Frequency
- Frequency Range (-10 dB)
- 52 Hz - 20 kHz
- Frequency Response (±3 dB)
- 63 Hz – 19 kHz
Performance & Coverage
- Maximum SPL (1m)
- 117 dB
Power
- Impedance
- 8 ohms
- Nominal LF Driver Impedance
- 8 Ohms
Physical
- Dimensions (H x W x D)
- 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)
- Net Weight (each)
- 12.8 kg (28.2 lb)
- Enclosure
- 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Environmental
- Environmental
- Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
General
- /26
- 120° x 60°
- /95
- 90° x 50°
More details
Additional Information
Specifications:
- System Power Rating:
- 250W Cont. Pink Noise
- 500W Program
- 1000W Peak
- Coverage Pattern:
- System Sensitivity (1w @ 1m): 93 dB SPL
- Suspension Attachment:
- 6 x M8 points; 1 top, 3 bottom, 2 rear
- 4 x M6 rear for OmniMount® 30.0 and MultiMount® MM-022-BT, MM-024-BT, MM-020-CM
