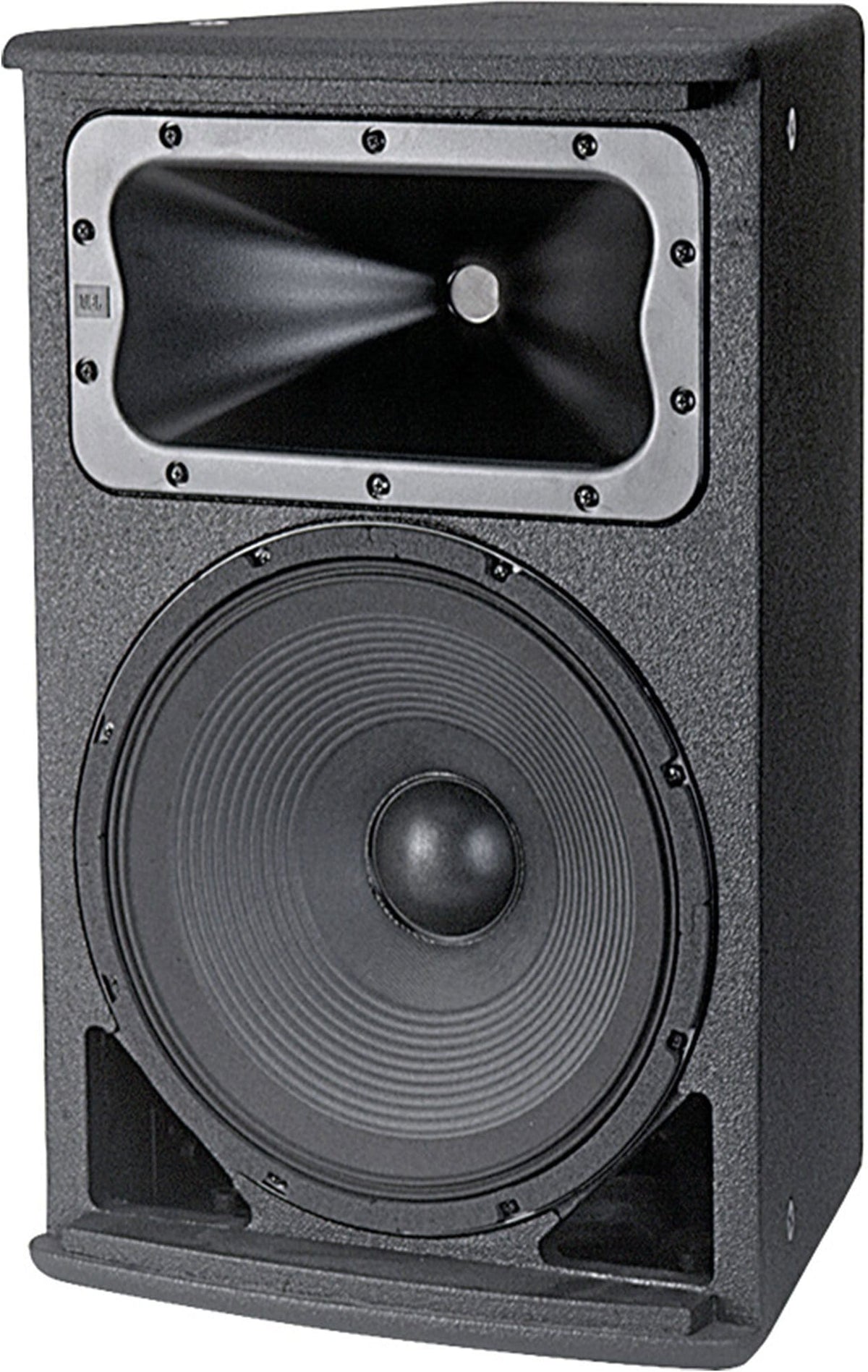

JBL AC2212/95 Compact 12-Inch 2-Way Loudspeaker
Model AC221295
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AC2212/95 Compact 12-Inch 2-Way Loudspeaker
AC2212 speakers are compact 2-way full range loudspeaker systems comprised of one 300 mm (12 in) low frequency driver and one voice-coil compression driver.
Why this product
Key Benefits
-
PT™ Progressive Transition™ Waveguide for good pattern control with low distortion.
-
Bi-Amp / Passive Switchable.
-
Optional U-Bracket Model MTU-4.
-
For fixed installation applications requiring a compact cabinet, such as lecture halls, corporate learning centers, small performing arts facilities, theatrical sound design, auditoriums, sports facilities and themed entertainment venues.
Technical details
Technical Specifications
System
- Crossover Modes
- Bi-amp/Passive switchable
- Passive Crossover Slopes
- 4th order (24 dB/oct) Transitional HP & LP, 1.3 kHz
Frequency
- Frequency Range
- 50 Hz - 19 kHz (-10 dB)
- Frequency Response
- 55 Hz - 17 kHz ( ± 3 dB)
Performance & Coverage
- Coverage Pattern
- 90°x 50°
- Directivity Factor (Q)
- 7.1
- Directivity Index (DI)
- 8.5 dB
- Maximum SPL
- Bi-amp mode: LF: 120 dB-SPL cont avg (126 dB peak) HF: 129 dB-SPL cont avg (135 dB peak) Passive mode: 120 dB-SPL cont avg (126 dB peak)
Power
- Transducer Power Rating (AES)
- LF: 300 W (1200 W peak), 2 hrs 250 W (1000 W peak), 100 hrs HF: 50 W (200 W peak), 2hrs
- Long-Term System Power Rating (IEC)
- Passive mode: 250 W (1000 W peak), 100 hrs
More details
Additional Information
Specifications:
- System Sensitivity: Passive mode: 95 dB SPL (1W @ 1m)
