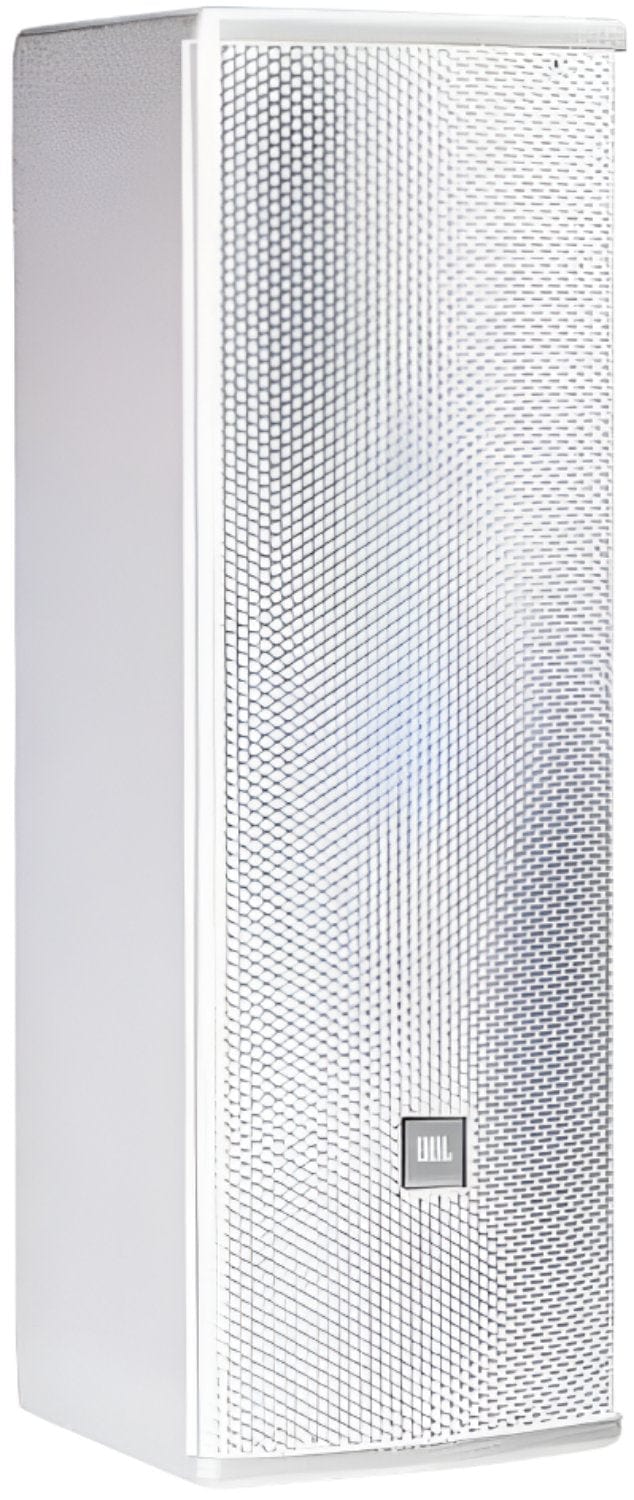

JBL AC26 Loudspeaker
Model AC26-WH
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AC26 Ultra Compact 6-inch 2-way Loudspeaker
An extension of the industry-leading AE Series, the AE Compact family consists of high-output, 2-way loudspeaker systems that combine flexibility with high fidelity. Ranging from a single 5.25" point-and-shoot box to dual 8" loudspeaker systems, these are specifically designed to better serve the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1" dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1" exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive Transition™ Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.
Why this product
Key Benefits
-
1” Exit Compression Driver with 90° x 90° Coverage PT™ Waveguide
-
165 mm (6.5 in) LF transducer
-
Ultra compact enclosure
-
360W Program
-
Dual Neutrik NL4 connectors plus screw terminal
-
Attachment points for optional U-bracket, third-party OmniMount® type bracket, and stand mount accessory
Technical details
Technical Specifications
System
- LF Driver
- 2 x JBL 226J, 165 mm (6.5 in) SFG™ driver with 50 mm (2 in) edge wound voice coil
- HF Driver
- 1 x 2414H, 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil
Frequency
- Frequency Range (-10 dB)
- 55 Hz - 20 kHz
- Frequency Response (±3 dB)
- 70 Hz - 18 kHz
Performance & Coverage
- Coverage Pattern
- 90° x 90°
- Maximum SPL (1m)
- 117 dB
Power
- Impedance
- 8 ohms
- Nominal LF Driver Impedance
- 8 Ohms
Physical
- Dimensions (H x W x D)
- 539.8 x 199.4 x 226.1 mm (21.3 x 7.8 x 8.9 in)
- Net Weight (each)
- 11.0 kg (24.3 lb)
- Enclosure
- 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Environmental
- Environmental
- Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.
More details
Additional Information
Specifications:
- System Power Rating:
- 350 W (AES rated)
- 180 W / 360 W / 720 W (Continuous/Program/Peak) (IEC rated)
- System Sensitivity (1w @ 1m): 92 dB SPL
- Suspension Attachment:
- 6 x M8 points; 1 top, 3 bottom, 2 rear
- 4 x M6 rear for OmniMount® 30.0 or MultiMount® MM-022-BT, MM-024-BT, MM-020-CM
