Product details
Overview

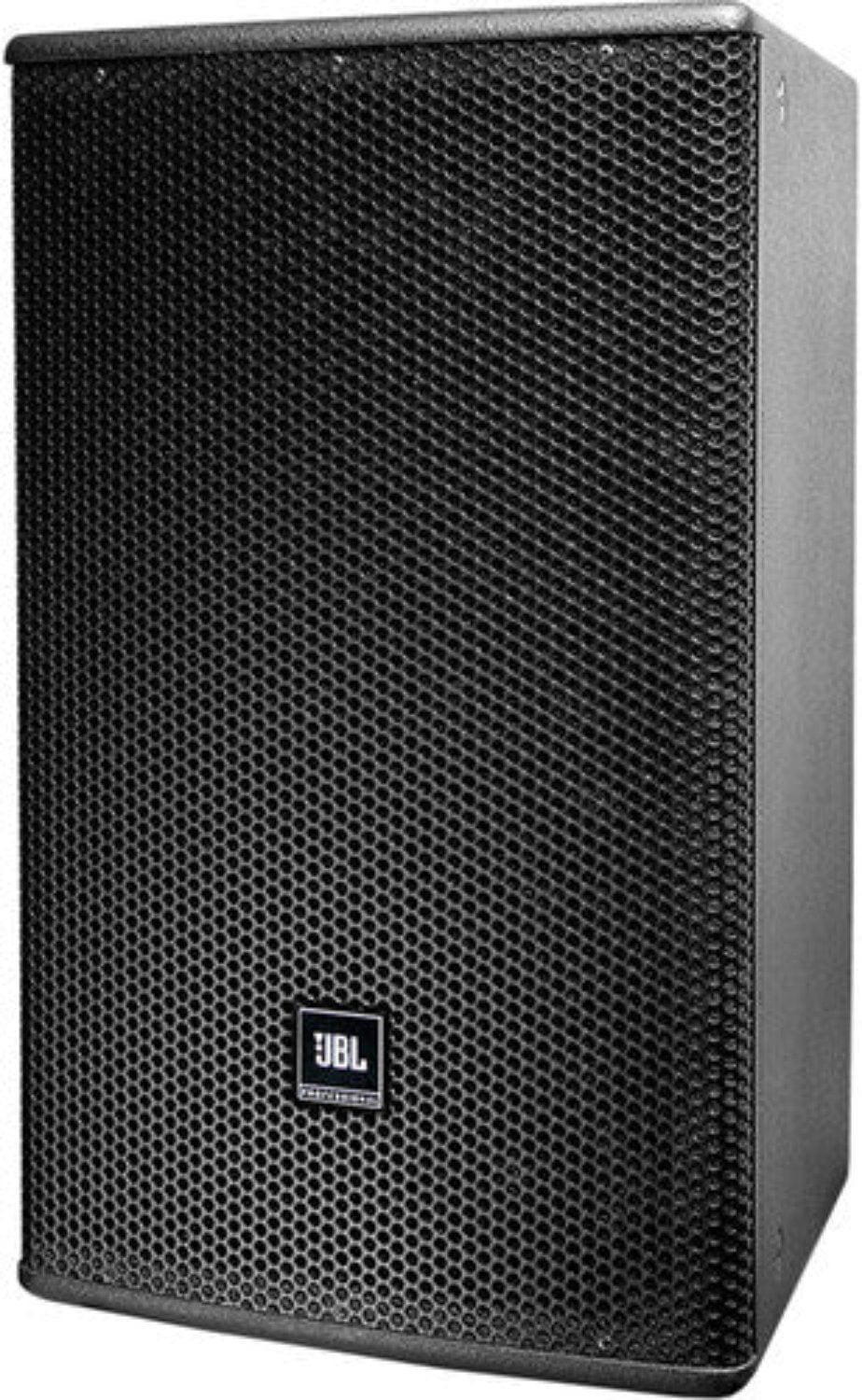

JBL AC299 12-inch 2-Way Speaker with 90° x 90° Horn
The AC299 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low-frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in both vertical and horizontal orientations. High-slope passive crossovers minimize band overlap and ensure well-controlled off-axis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on the back of the enclosure allow attachment of a MultiMount® or similar type mounting. The AC299 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Why this product
Key Benefits
-
Robust 15 mm enclosure with black textured finish
-
310 mm (12 in) LF transducer
-
90° x 90° Waveguide with a 25 mm (1 in) exit and 35 mm (1.5 in) voice-coil compression driver
-
Dual Neutrik NL4 connectors plus screw terminals
-
Multiple attachment points for ultimate flexibility
Technical details
Technical Specifications
System
- Crossover
- 1.5 kHz
- LF Driver
- 1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil
- HF Driver
- 1 x 2408H-2 driver with 25 mm (1 in) exit / 35 mm (1.5 in) voice-coil
- Crossover Modes
- Passive
Frequency
- Frequency Range (-10 dB)
- 63 Hz - 20 kHz
- Frequency Response (±3 dB)
- 80 Hz - 18 kHz
Performance & Coverage
- Coverage Pattern
- 90° x 90° (H x V)
Power
- Nominal Impedance
- 8 ohms
- Nominal LF Driver Impedance
- 8 ohms
- Nominal HF Driver Impedance
- 8 ohms
Connectivity
- Input Connector
- Dual Neutrik NL4MP connectors plus covered barrier strip terminals
Physical
- Enclosure
- 15 mm multi-ply hardwood plywood
- Grille
- Powder coated, 1.5 mm perforated steel, with acoustically transparent black foam backing
- Finish
- Textured black paint finish or White (-WH). Not available with WRC & WRX finish.
- Dimensions (H x W x D)
- 600 mm x 370 mm x 392 mm (23.6 in x 14.5 in x 15.4 in)
- Net Weight (each)
- 17.3 kg (38.1 lbs)
More details
Additional Information
Specifications:
- System Sensitivity (1w @ 1m): 97 dB
- Maximum SPL (1m):
- 121 dB
- 127 dB peak
- System Power Rating:
- 350 W (1400 W peak), 2 hrs (AES rated)
- 250 W / 500 W / 1000 W (Continuous / Program / Peak) (IEC rated)
- Suspension Attachment:
- 14 x M10 and 4 x M10 for Wall Mount Bracket
- Optional U-bracket, L-bracket, and wall-mount bracket
