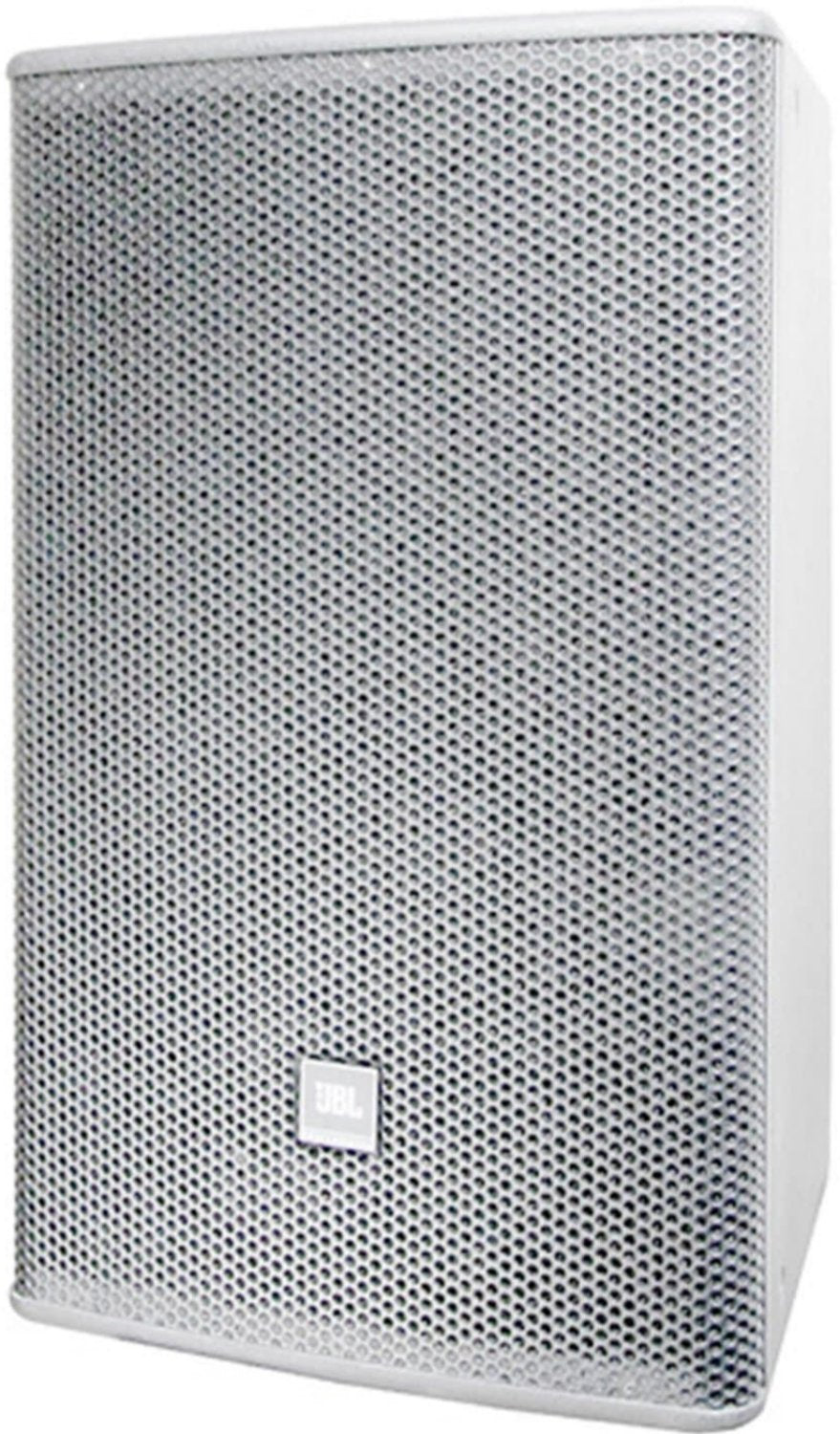

JBL AC566 Speaker
Model AC566-WH
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AC566 15-inch 2-Way Speaker with 60° x 60° Horn
AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC566 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
The JBL AC566 Speaker is available in black or white.
Why this product
Key Benefits
-
Robust 15mm enclosure with black textured finish
-
384 mm (15 in) LF transducer
-
60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
-
Dual Neutrik NL4 connectors plus screw terminals
-
Multiple attachment points for ultimate flexibility
Use cases
Applications
-
Performing Spaces
-
Clubs & Bars
-
Houses of Worship
-
Multi Media Spaces
-
Retail & Hospitality Spaces
-
Presentation Suites
-
Educational Facilities
Technical details
Technical Specifications
System
- Crossover
- 1.5 kHz
- Low Frequency Driver
- 1 x 15" woofer (P/N: 5053935), 384 mm (15 in) driver with 66 mm (2.5 in) voice-coil
- High Frequency Driver
- 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
Frequency
- Frequency Range (-10 dB)
- 60 Hz - 20 kHz
- Frequency Response (±3 dB)
- 75 Hz - 18 kHz
Performance & Coverage
- Maximum SPL (1m)
- 122 dB (128 dB peak)
- Coverage Pattern
- 60° x 60° (H x V)
Power
- Nominal Impedance
- 8 ohms
- Power Rating (Continuous/Program/Peak)
- 250 W/500 W/1000 W
Connectivity
- Input Connector
- Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Physical
- Enclosure
- 15 mm multi-ply hardwood plywood
- Grille
- Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
- Finish
- Textured White paint finish. Black (-BK) available upon request. Not available with WRC & WRX finish.
- Suspension / Mounting
- 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
- Dimensions (H x W x D)
- 680 mm x 420 mm x 445 mm / 26.7 in x 16.5 in x 17.5 in
- Net Weight
- 19.8 kg (43.6lbs)
More details
Additional Information
Specifications:
- System Sensitivity (1w @ 1m): 98 dB
