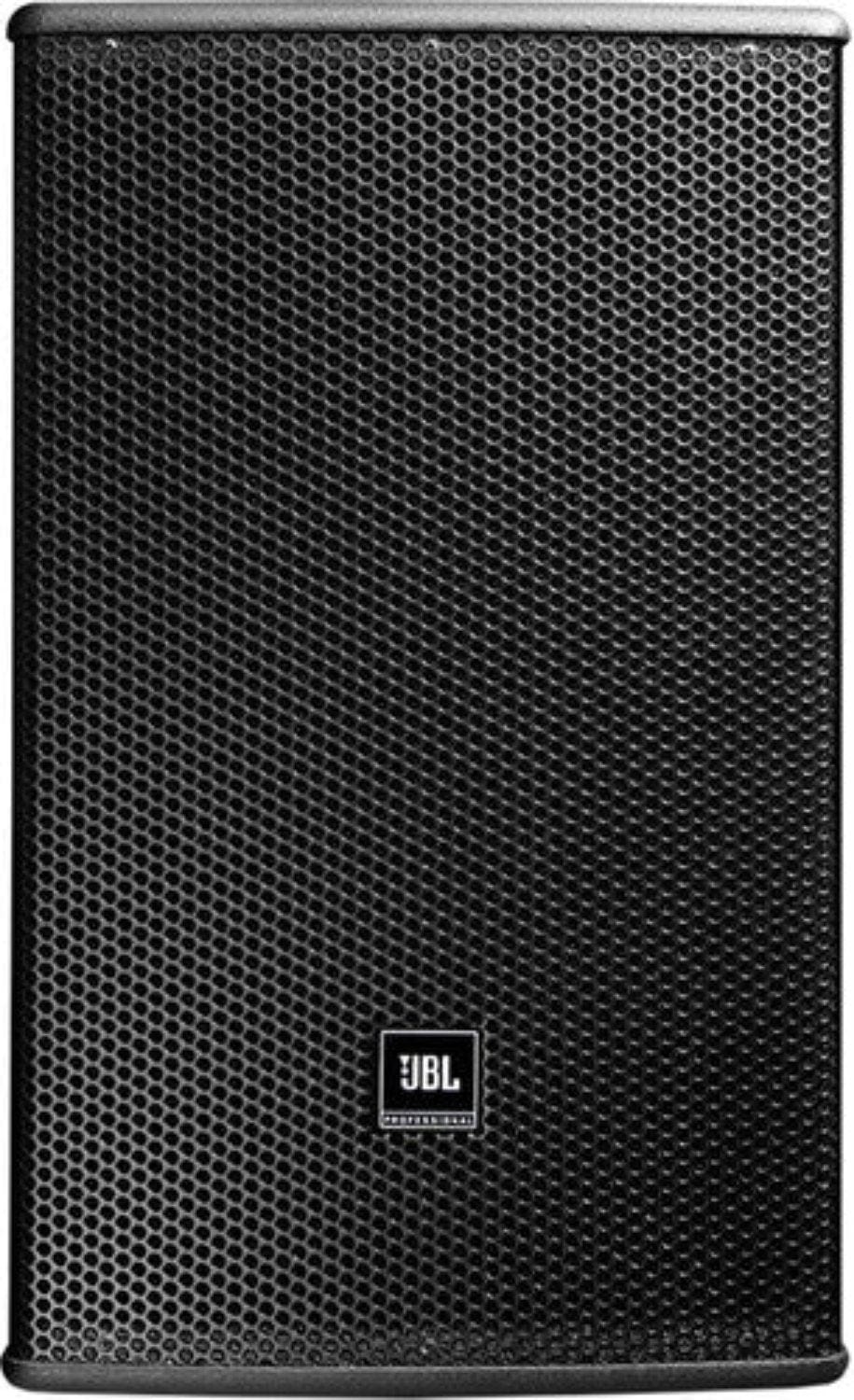

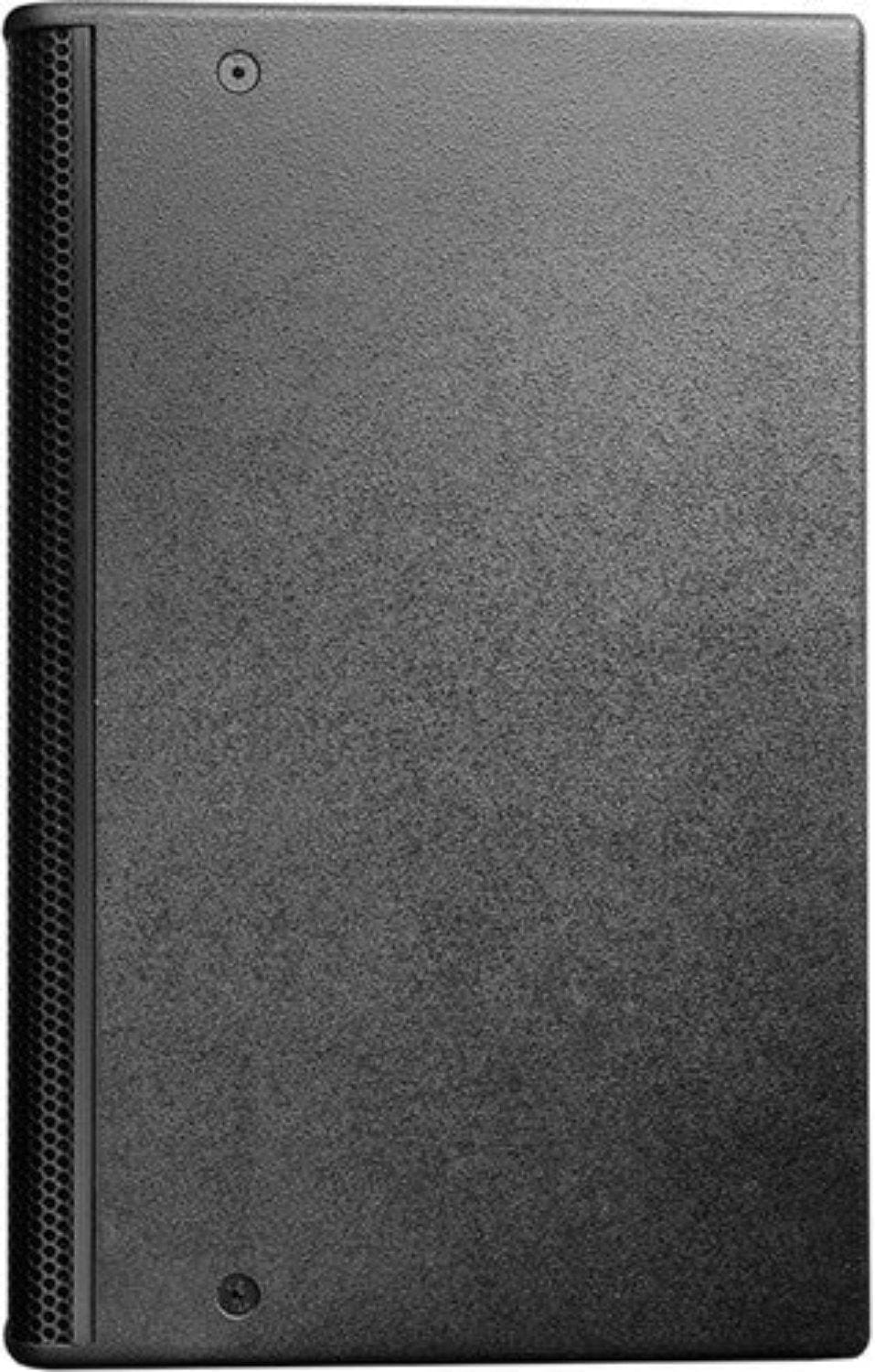

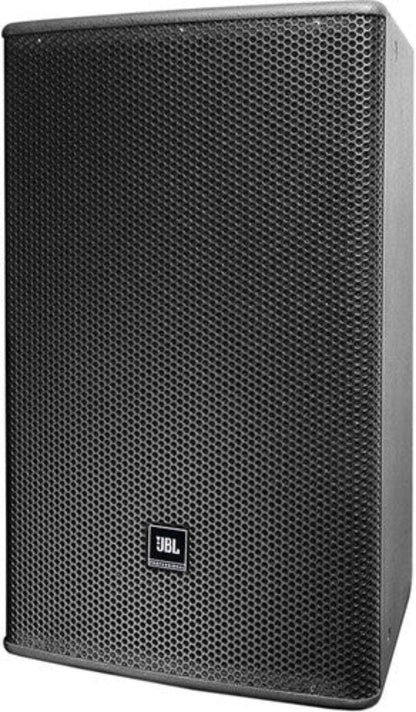

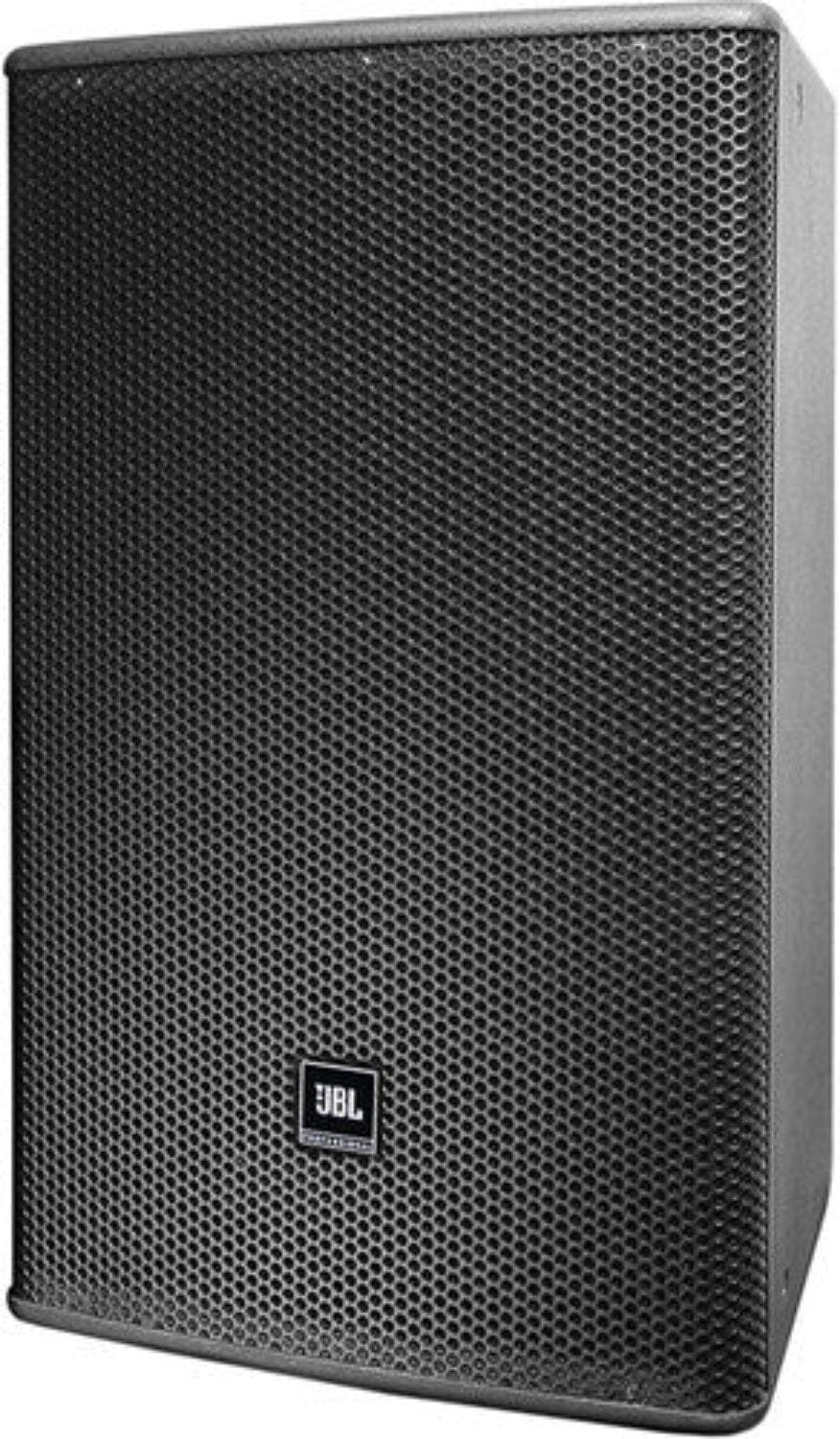

JBL AC599 Speaker
Model AC599
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

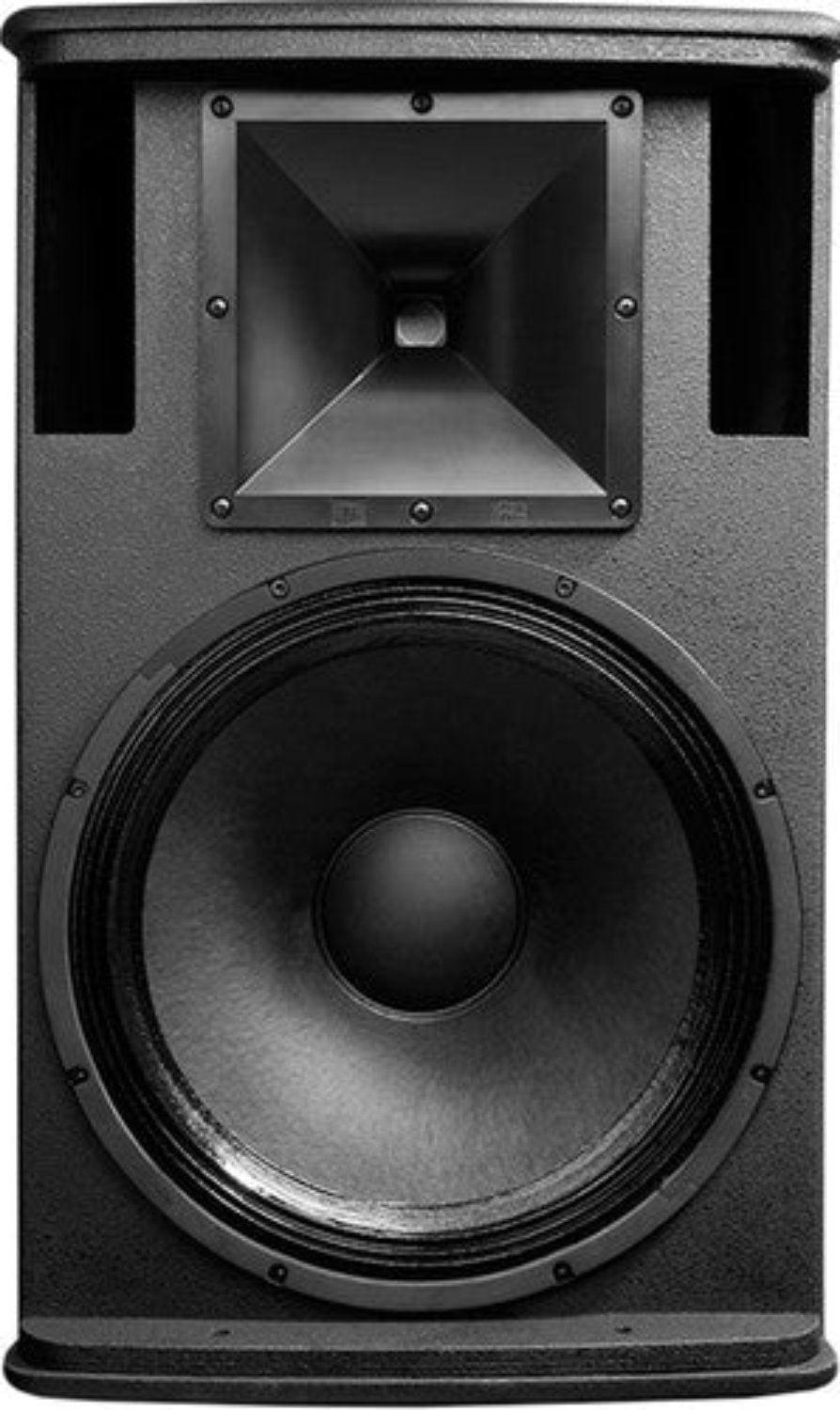

JBL AC599 15-inch 2-Way Speaker with 90° x 90° Horn
The AC599 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low-frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in both vertical and horizontal orientations. High-slope passive crossovers minimize band overlap and ensure well-controlled off-axis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on the back of the enclosure allow attachment of a MultiMount® or similar type mounting. The AC599 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
The JBL AC599 Speaker is available in black or white.
Why this product
Key Benefits
-
Robust 15mm enclosure with black textured finish
-
384 mm (15 in) LF transducer
-
90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
-
Dual Neutrik NL4 connectors plus screw terminals
-
Multiple attachment points for ultimate flexibility
Technical details
Technical Specifications
System
- Crossover
- 1.5 kHz
- LF Driver
- 1 x 15" woofer (P/N: 5053935), 381 mm (15 in) driver with 38 mm (1.5 in) voice-coil
- HF Driver
- 1 x 2408H-2 driver with 25 mm (1 in) exit / 38 mm (1.5 in) voice-coil
- Crossover Modes
- Passive
Frequency
- Frequency Range (-10 dB)
- 60 Hz - 20 kHz
- Frequency Response (±3 dB)
- 75 Hz - 18 kHz
Performance & Coverage
- Coverage Pattern
- 90° x 90° (H x V)
Power
- Nominal Impedance
- 8 ohms
- Nominal LF Driver Impedance
- 8 ohms
- Nominal HF Driver Impedance
- 8 ohms
Connectivity
- Input Connector
- Dual Neutrik NL4MP connectors plus covered barrier strip terminals
Physical
- Enclosure
- 15 mm multi-ply hardwood plywood
- Grille
- Powder coated, 1.5 mm perforated steel, with acoustically transparent black foam backing
- Finish
- Textured black paint finish and White (-WH). Not available with WRC & WRX finish.
- Net Weight (each)
- 19.7 kg (43.4 lbs)
More details
Additional Information
Specifications:
- System Sensitivity (1w @ 1m): 98 dB
- Maximum SPL (1m):
- 122 dB
- 128 dB peak
- System Power Rating:
- 350 W (1400 W peak), 2 hrs (AES rated)
- 250 W / 500 W / 1000 W (Continuous / Program / Peak) (IEC rated)
- Suspension Attachment:
- 14 x M10 and 4 x M10 for Wall Mount Bracket
- Optional U-bracket, overhead suspension bracket, and wall-mount bracket
