Product details
Overview

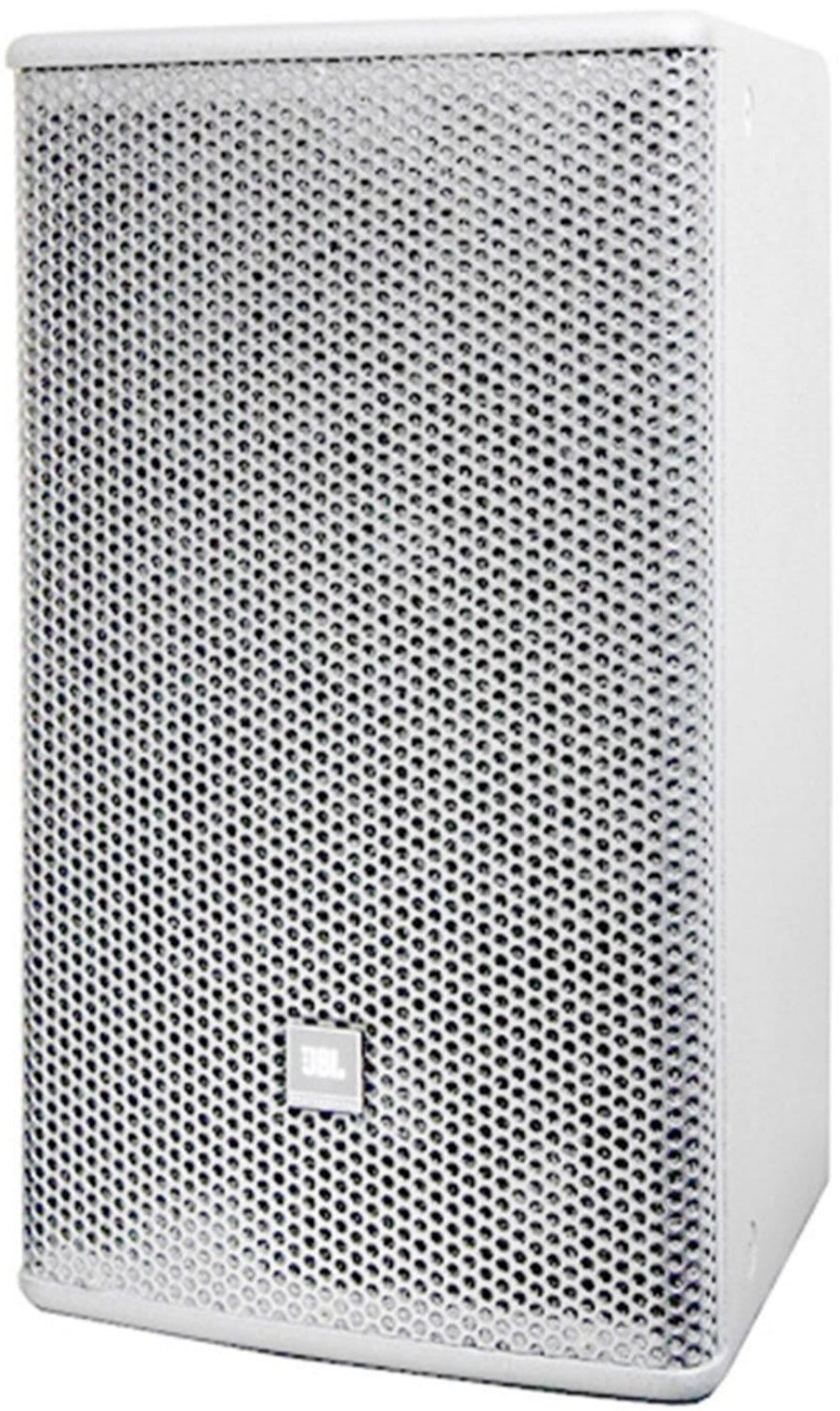

JBL AC895-WH 8-Inch 2-Way Speaker - White
Two-Way Full-Range Loudspeaker with 1 x 8" LF
AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
Why this product
Key Benefits
-
Compact enclosure
-
209 mm (8 in) LF transducer
-
90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver
-
Dual Neutrik NL4 connectors plus screw terminals
-
Multiple Attachment Points for Ultimate Flexibility
Use cases
Applications
-
Performing Spaces
-
Clubs & Bars
-
Houses of Worship
-
Multi Media Spaces
-
Retail & Hospitality Spaces
-
Presentation Suites
-
Presentation Suites
Technical details
Technical Specifications
System
- Crossover
- 2 kHz
- Low Frequency Driver
- 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil
- High Frequency Driver
- 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil
Frequency
- Frequency Range (-10 dB)
- 70 Hz - 20 kHz
- Frequency Response (±3 dB)
- 90 Hz - 18 kHz
Performance & Coverage
- Maximum SPL (1m)
- 116 dB (122 dB peak)
- Coverage Pattern
- 90° x 50° (H x V)
Power
- Nominal Impedance
- 8 ohms
- Power Rating (Continuous/Program/Peak)
- 150 W/ 300 W/ 600 W
Connectivity
- Input Connector
- Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Physical
- Enclosure
- 15 mm multi-ply hardwood plywood
- Grille
- Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
- Finish
- Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
- Suspension / Mounting
- 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
- Dimensions (H x W x D)
- 470 mm x 265 mm x 254 mm 8.5 in x 10.4 in x 10.0 in
- Net Weight
- 10.2 kg (22.4 lbs)
More details
Additional Information
Specifications:
- System Sensitivity (1w @ 1m): 94 dB
