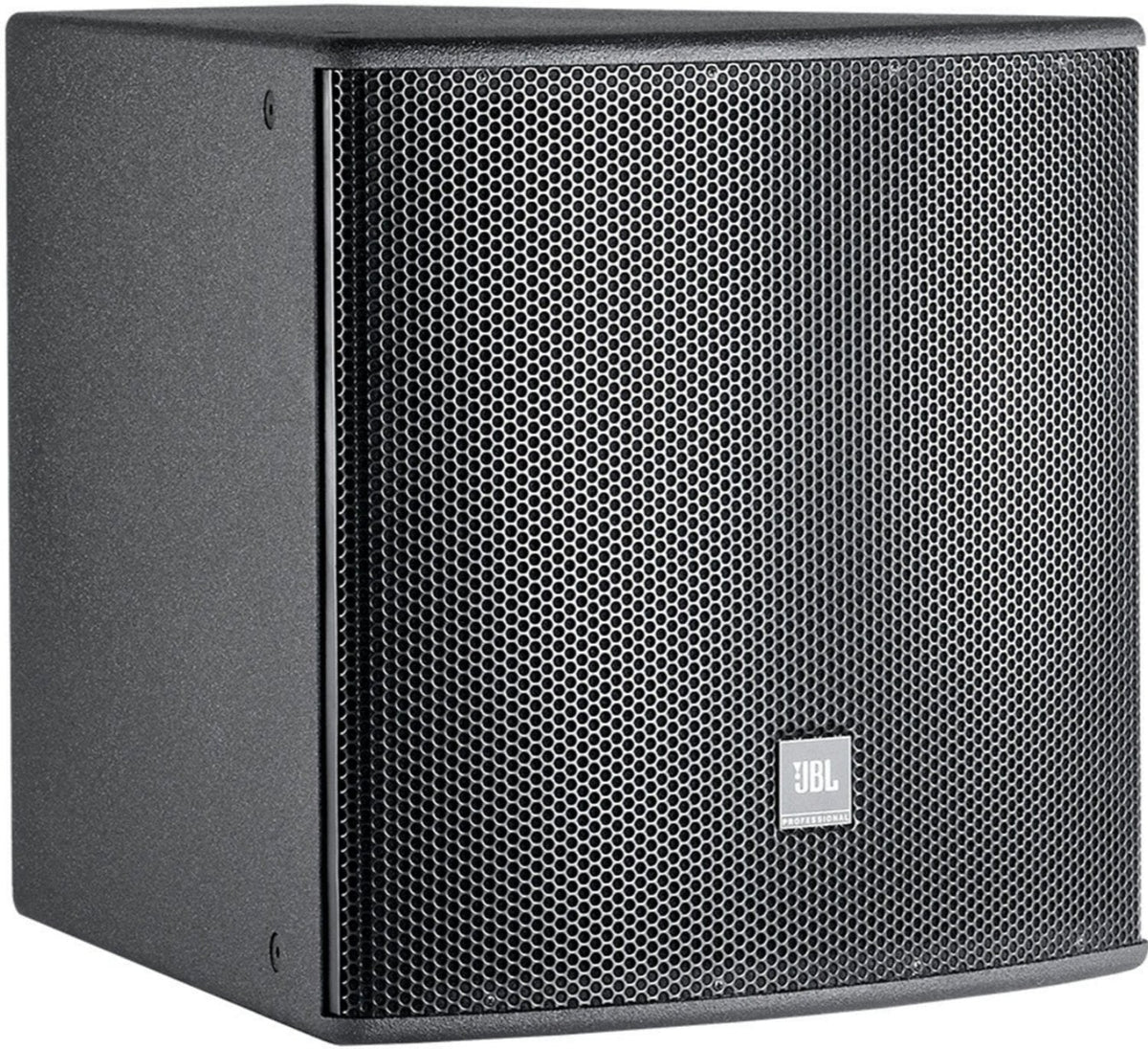

JBL AL7115 Loudspeaker
Model AL7115
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AL7115 15-inch Low Frequency Loudspeaker
AL7115 is a high power, low frequency loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AL7115 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications.
Why this product
Key Benefits
-
1 x 15" 2265H Differential Drive® Low- Frequency Driver.
-
Large vent area for high output with low distortion.
-
Arrays with various AE Series mid-high frequency and compact 2-way models (see AE Series Array Guide).
-
Applications: Performing arts facilities, Theatrical sound design, Auditoriums, Houses of worship, Live clubs, Dance-clubs/discotheques, Sports facilities, Themed entertainment venues
Technical details
Technical Specifications
System
- Low Frequency Driver
- 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil
Frequency
- Frequency Range (-10 dB)
- 40 Hz – 4.2 kHz
- Frequency Response (±3 dB)
- 47 Hz - 3.0 kHz
Performance & Coverage
- Maximum SPL
- 50 Hz –125 Hz: 127 dB-SPL cont avg (133 dB peak); 125 Hz – 800 Hz: 126 dB-SPL cont avg (132 dB peak)
Power
- Transducer Power Rating (AES)
- 1000 W (4000 W peak), 2 hrs
- Long-Term System Power Rating (IEC)
- 600 W (2400 W peak), 100 hrs
- Nominal Impedance
- 8 ohms
Connectivity
- Input Connector
- NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Physical
- Enclosure
- Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
- Suspension Attachment
- 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
- Finish
- Black DuraFlex™ finish.
- Grille
- Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Net Weight
- 25.9 kg (57 lb)
Environmental
- Environmental Specifications
- Mil-Std 810; IP-x3 per IEC529
Included & Optional Accessories
- Optional Accessories
- M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
General
- 125 Hz – 800 Hz
- 97 dB
More details
Additional Information
Specifications:
- System Sensitivity (dB-SPL, 1W @ 1m): 50 Hz – 125 Hz: 97 dB
- Dimensions (H x W x D in vertical cabinet orientation): 548 x 561 x 657 mm (21.6 x 22.1 x 25.9 in)
