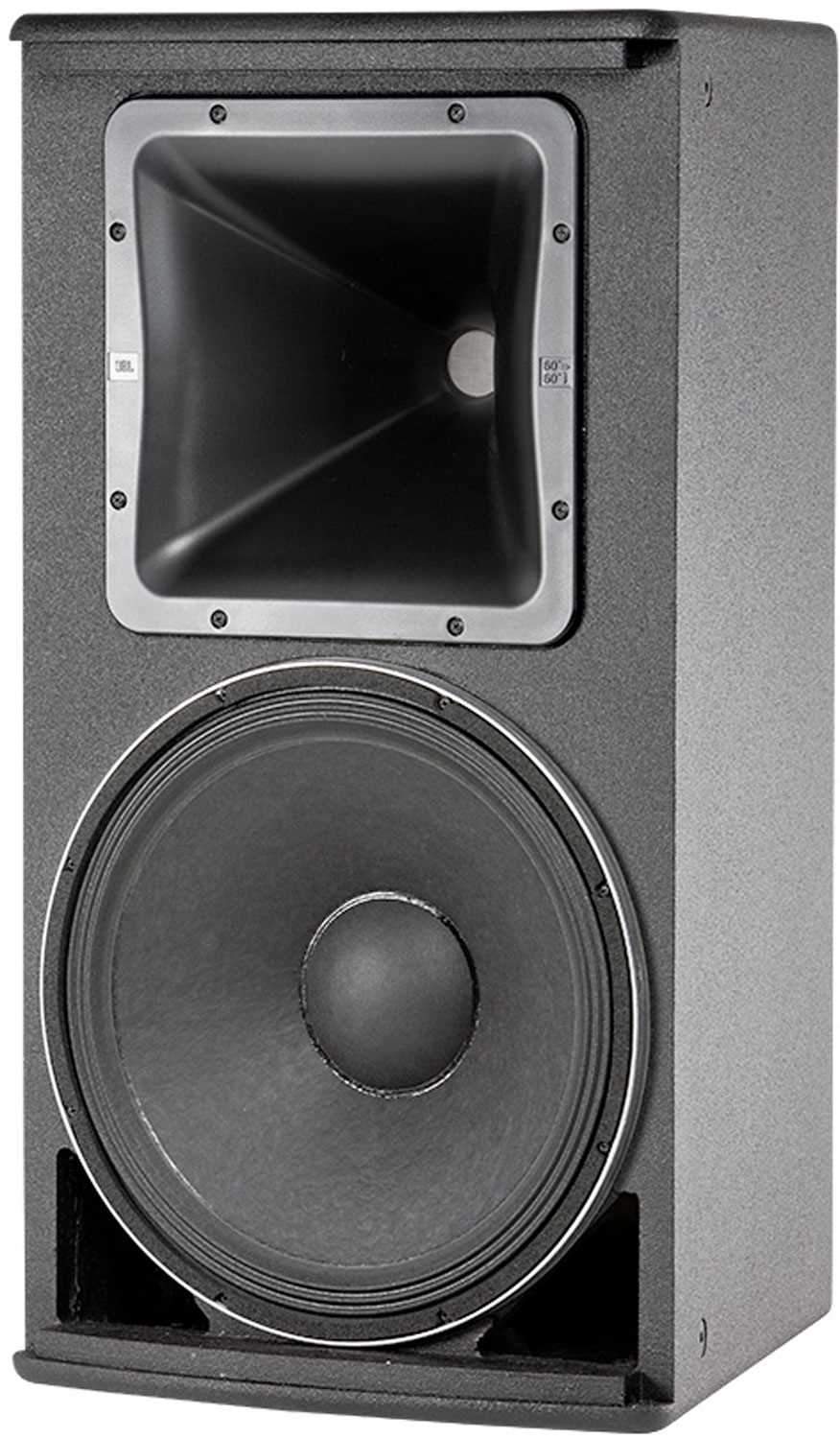

JBL AM5215/66 Loudspeaker
Model AM5215-66
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AM5215/66 15-inch 2-Way Loudspeaker with 60° x 60° Horn
2-Way Loudspeaker System with 1 x 15" LF
The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Why this product
Key Benefits
-
265H-1 Differential Drive® Low-Frequency Driver
-
2408H-1 High-Frequency Compression Driver
-
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
-
Rotatable waveguide for vertical or horizontal orientation
-
Bi-Amp/Passive Switchable
-
Available in Black, White and WRC/WRX weather resistant finishes
Use cases
Applications
-
Performing Arts Facilities
-
Theatrical Sound Design
-
Auditoriums
-
Worship Facilities
-
Live Clubs
-
Dance Clubs
-
Sports Facilities
-
Themed Entertainment Venues
Technical details
Technical Specifications
System
- Crossover Modes
- Bi-amp/Passive switchable
- Passive Crossover Frequency
- 2 kHz
- Low Frequency Driver
- 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
- High Frequency Driver
- JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
- Waveguide
- PT-H66HF-1
Frequency
- Frequency Range (-10 dB)
- 35 Hz - 20 kHz
- Frequency Response (±3 dB)
- 41 Hz – 18 kHz
Performance & Coverage
- Coverage Pattern
- 60° x 60°
- Directivity Factor (Q)
- 14.5
- Directivity Index (DI)
- 11.6 dB
- Maximum SPL
- Bi-amp mode: LF: 125 dB-SPL cont avg HF: 131 dB-SPL cont avg.
Power
- Transducer Power Rating (AES)
- LF: 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs
- Long-Term System Power Rating (IEC)
- Passive mode: 350 W (1400 W peak), 100 hrs
- Nominal Impedance
- 8 ohms
Connectivity
- Input Connector
- NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Physical
- Enclosure
- Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
- Suspension Attachment
- 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
- Finish
- Black DuraFlex™ finish. White available upon request.
- Grille
- Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Net Weight
- 25.0 kg (55 lb)
Environmental
- Environmental Specifications
- Mil-Std 810; IP-x3 per IEC529.
Included & Optional Accessories
- Optional Accessories
- M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
More details
Additional Information
Specifications:
- System Sensitivity (1W @ 1m): Passive mode: 98 dB SPL
- Sensitivity (1W @ 1m, within operational band): 99 dB SPL
- Sensitivity (1W @ 1m): 115 dB SPL
- Dimensions (H x W x D in vertical cabinet orientation): 783 x 422 x 504 mm (30.8 x 16.6 x 19.85 in)
