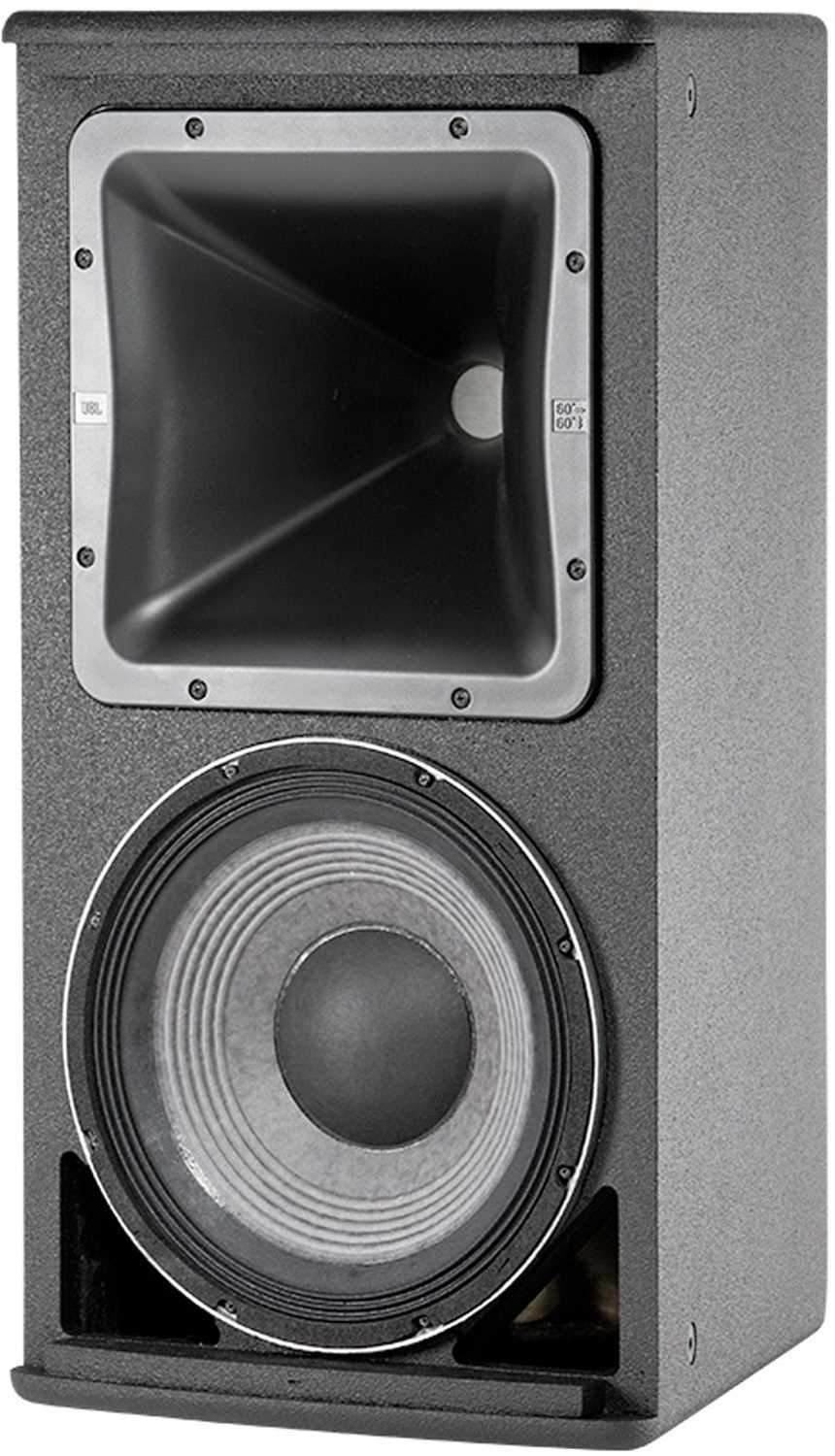

JBL AM7212/26 Loudspeaker
Model AM7212-26
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AM7212/26 12-inch 2-Way Loudspeaker with 120° x 60° Horn
High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn
The AM7212/26 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Why this product
Key Benefits
-
2262H Differential Drive® Low- Frequency Driver
-
2432H High-Frequency Compression Driver
-
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
-
Rotatable waveguide for vertical or horizontal orientation
-
Bi-Amp/Passive Switchable
-
Available in Black, White and WRC/WRX finishes
Technical details
Technical Specifications
System
- LF Driver
- 2262H
- HF Driver
- 2432H
- System Type
- 12" Two - Way, High Power, Full - Range
- Crossover Modes
- Bi-amp/Passive switchable
- Passive Crossover Frequency
- 1.8 kHz
Frequency
- Frequency Range ( –10 dB)
- 36 Hz - 20 kHz
- Frequency Response ( ± 3 dB)
- 42 Hz - 18 kHz
Performance & Coverage
- Coverage
- 120° x 60°
Power
- Transducer Power Rating (AES)
- LF: 1000 W (4000 W peak), 2 hr 700 W (2800 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
- Long-Term System Power Rating (IEC)
- Passive mode: 600 W (2400 W peak), 100 hrs
- Nominal Impedance
- 8 ohms
Physical
- Dimensions (H x W x D)
- 711 x 369 x 458 mm (28 x 14.5 x 18 in)
- Weight
- 23.1 kg (51 lb)
More details
Additional Information
Specifications:
- Maximum SPL (dB-SPL, 1W @ 1m): Bi-amp mode: LF: 126 dB-SPL cont avg (132 dB peak)HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 123 dB-SPL cont avg (129 dB peak)
- System Sensitivity (1W @ 1m): Passive mode: 95 dB SPL
