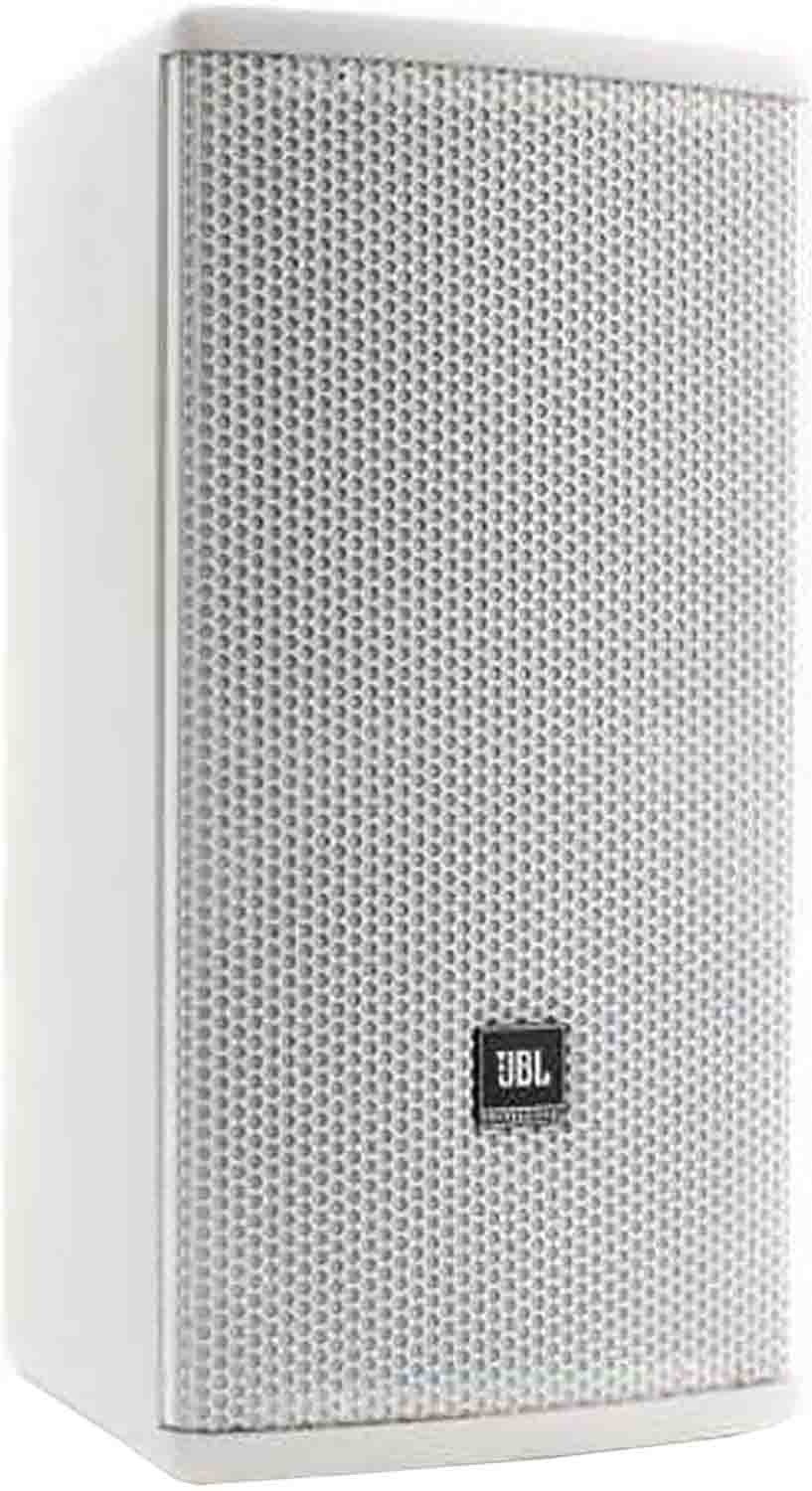

JBL AM7212/66 Loudspeaker
Model AM7212-66-WH
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AM7212/66 12-inch 2-Way Loudspeaker with 60° x 60° Horn
The AM7212/66 is a high-power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and the 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large-format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable, allowing the loudspeaker system to be used in either vertical or horizontal orientation. High-slope passive networks minimize band overlap, while well-controlled off-axis response enhances arrayability.
Why this product
Key Benefits
-
60° x 60° Coverage
-
2262H Differential Drive® Low- Frequency Driver
-
2432H High-Frequency Compression Driver
-
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
-
Rotatable waveguide for vertical or horizontal orientation
-
Bi-Amp/Passive Switchable
-
Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
-
Available in White
Technical details
Technical Specifications
System
- LF Driver
- 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
- HF Driver
- JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
- System Type
- 12" Two-Way, High Power, Full-Range
- Crossover Modes
- Bi-amp / Passive switchable
- Passive Crossover Frequency
- 1.8 kHz
- LF
- 1000 W (4000 W peak), 2 hr; 700 W (2800 W peak), 100 hrs
- HF
- 100 W (400 W peak), 2 hrs
- LF
- 126 dB-SPL cont avg (132 dB peak)
- HF
- 135 dB-SPL cont avg (141 dB peak)
Frequency
- Frequency Range (-10 dB)
- 36 Hz - 20 kHz
- Frequency Response (±3 dB)
- 42 Hz - 20 kHz
Performance & Coverage
- Coverage
- 60° x 60°
Power
- Nominal Impedance
- 8 ohms
- Nominal LF Driver Impedance
- 8 ohms
- Nominal HF Driver Impedance
- 8 ohms
Physical
- Dimensions (H x W x D)
- 711 x 369 x 458 mm (28 x 14.5 x 18 in)
- Net Weight (each)
- 23.1 kg (51 lb)
- Enclosure
- Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
- Suspension Attachment
- 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
Environmental
- Environmental
- Mil-Std 810; IP-x3 per IEC529
General
- Passive mode
- 600 W (2400 W peak), 100 hrs
- Passive mode
- 123 dB-SPL cont avg (129 dB peak)
More details
Additional Information
Specifications:
- Transducer Power Rating (AES):
- System Power Rating:
- Maximum SPL (1m):
- Bi-amp mode:
- Bi-amp mode:
- System Sensitivity (1w @ 1m) - Passive mode: 95 dB SPL
