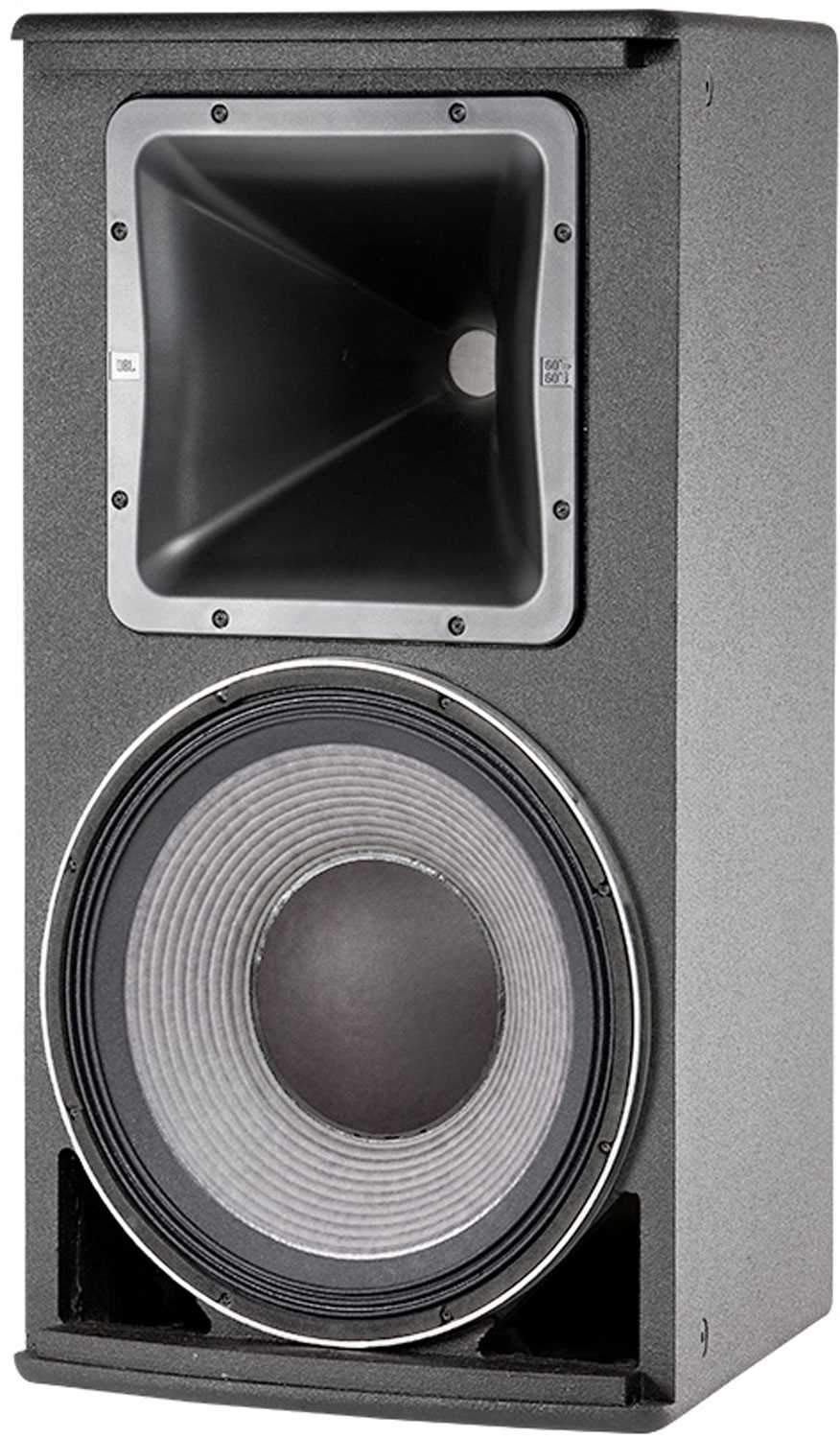

JBL AM7215/26 Loudspeaker
Model AM7215-26
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AM7215/26 15-inch 2-Way Loudspeaker with 120° x 60° Horn
High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn
The AM7215 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Why this product
Key Benefits
-
2265H Differential Drive® Low- Frequency Driver
-
2432H High-Frequency Compression Driver
-
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
-
Rotatable waveguide for vertical or horizontal orientation
-
Bi-Amp/Passive Switchable
-
Available in Black, White and WRC/WRX finishes
Use cases
Applications
-
Performing Arts Facilities
-
Theatrical Sound Design
-
Auditoriums
-
Worship Facilities
-
Live Clubs
-
Dance Clubs
-
Sports Facilities
-
Themed Entertainment Venues
Technical details
Technical Specifications
System
- LF Driver
- 2265H
- HF Driver
- 2432H
- System Type
- 15" Two - Way, High Power, Full - Range
- Crossover Modes
- Bi-amp/Passive switchable
- Passive Crossover Frequency
- 1.8 kHz
- LF
- 1000 W (4000 W peak), 2 hr
- HF
- 100 W (400 W peak), 2 hrs
- LF
- 128 dB-SPL cont avg (134 dB peak):
- HF
- 135 dB-SPL cont avg (141 dB peak):
Frequency
- Frequency Range ( –10 dB)
- 34 Hz - 20 kHz
- Frequency Response ( ± 3 dB)
- 40 Hz - 18 kHz
Performance & Coverage
- Coverage
- 120° x 60°
Power
- Nominal Impedance
- 8 ohms
Physical
- Dimensions (H x W x D)
- 781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
- Weight
- 27.2 kg (60 lb)
General
- Passive mode
- 600 W (2400 W peak), 100 hrs
More details
Additional Information
Specifications:
- Transducer Power Rating (AES):
- 750 W (3000 W peak), 100 hrs
- Long-Term System Power Rating (IEC):
- Maximum SPL:
- Bi-amp Mode:
- Passive mode:
- 124 dB-SPL cont avg (130 dB peak)
- System Sensitivity (1W @ 1m): Passive mode: 96 dB SPL
