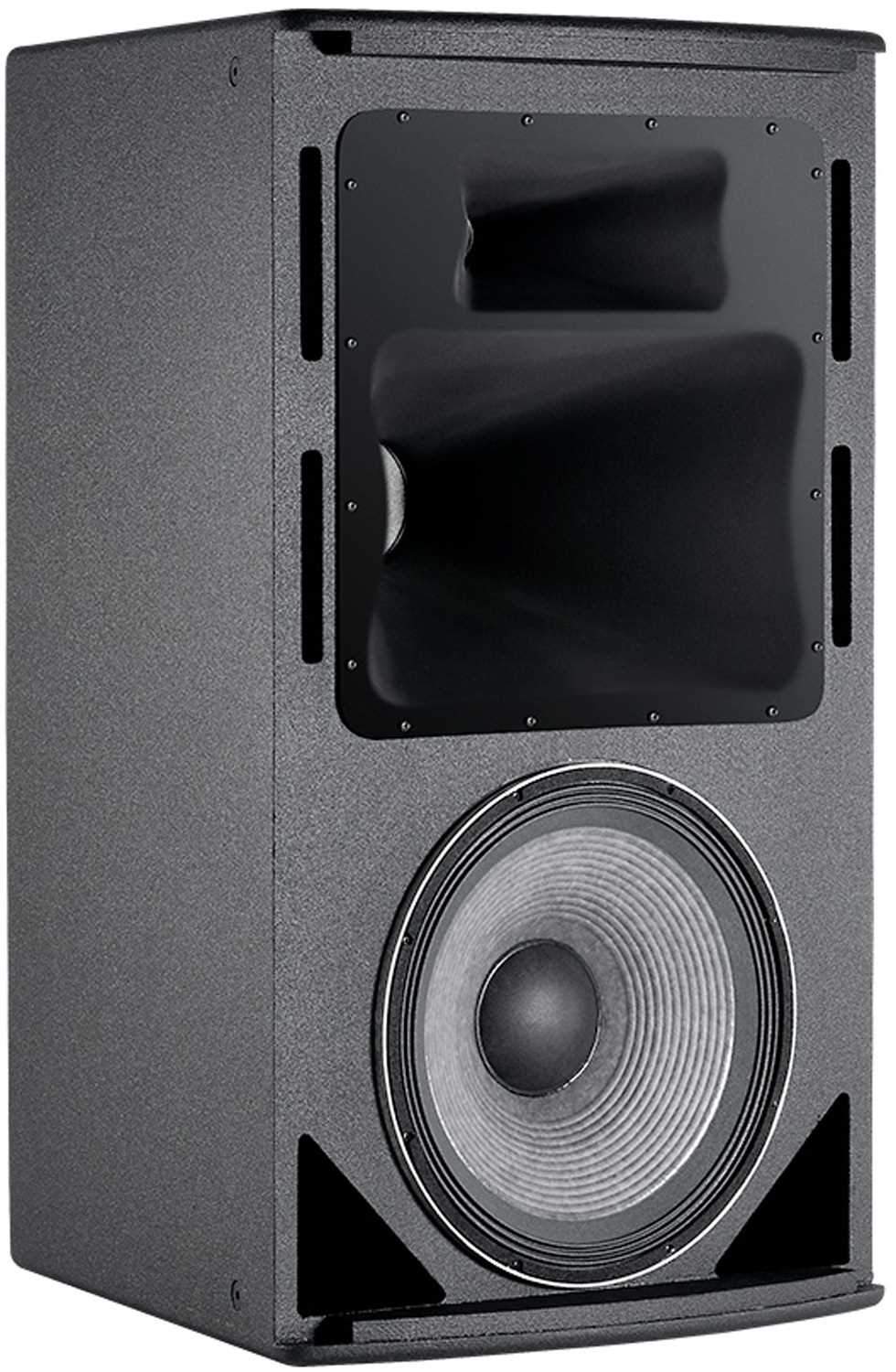

JBL AM7315/64 Loudspeaker
Model AM7315-64
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AM7315/64 15-inch 3-Way Loudspeaker with 60° x 40° Horn
High Power 3-Way Loudspeaker
AM7315 speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
Why this product
Key Benefits
-
2265H Differential Drive® Low-Frequency Driver
-
CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
-
2432H High-Frequency Compression Driver
-
PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
-
Bi-Amp/Tri-Amp Switchable.
Use cases
Applications
-
Performing arts facilities
-
Theatrical sound design
-
Auditoriums
-
Houses of worship
-
Live clubs
-
Dance-clubs/discotheques
-
Sports facilities
-
Themed entertainment venues
Technical details
Technical Specifications
System
- Crossover Modes
- Tri-amp/Bi-amp switchable
- Crossover Frequencies
- 300 Hz and 2.3 kHz
- Low Frequency Driver
- 1 x JBL 2265H 380 mm (15 in ) Differential Drive® driver with 75 mm (3 in)
- Midrange Driver
- JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice coil internal driver
- High Frequency Driver
- JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Frequency
- Frequency Range (-10 dB)
- 38 Hz – 20 kHz
- Frequency Response (±3 dB)
- 45 Hz – 18 kHz
Performance & Coverage
- Coverage Pattern
- 60° x 40°, rotatable waveguide
- Directivity Index (DI)
- 13 dB
- Maximum SPL
- LF: 127 dB-SPL cont avg (133 dB peak) Tri-amp mode: MF: 133 dB-SPL cont avg (139 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Bi-amp mode: MF/HF: 133 dB-SPL cont avg (139 dB peak)
Power
- Transducer Power Rating (AES)
- LF: 1000 W (4000 W peak), 2 hrs 750 W (3000 W peak), 100 hrs MF: 350 W (1400 W peak), 2 hrs HF: 100 W (400 W peak), 2 hrs
- Long-Term System Power Rating (IEC)
- LF: 600 W (2400 W peak), 100 hrs MF/HF: 200 W (800 W peak), 100 hrs
- Nominal Impedance System Sensitivity
- 8 ohms
Connectivity
- Input Connector
- NL8 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Physical
- Enclosure
- Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
- Suspension Attachment
- 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
- Finish
- Black DuraFlex™ finish. White available upon request.
- Grille
- Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Net Weight
- 45.8 kg (101 lb)
Environmental
- Environmental Specifications
- Mil-Std 810; IP-x3 per IEC529.
Included & Optional Accessories
- Optional Accessories
- M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
More details
Additional Information
Specifications:
- System Sensitivity of Passive Sections (1W @ 1m): MF/HF Section in Bi-amp mode: 108 dB SPL
- Sensitivity (1W @ 1m) (Low Frequency): 97 dB SPL
- Sensitivity (1W @ 1m) (Midrange): 108 dB SPL
- Sensitivity (1W @ 1m) (High Frequency): 115 dB SPL
- Dimensions (H x W x D in vertical cabinet orientation): 967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)
