Product details
Overview

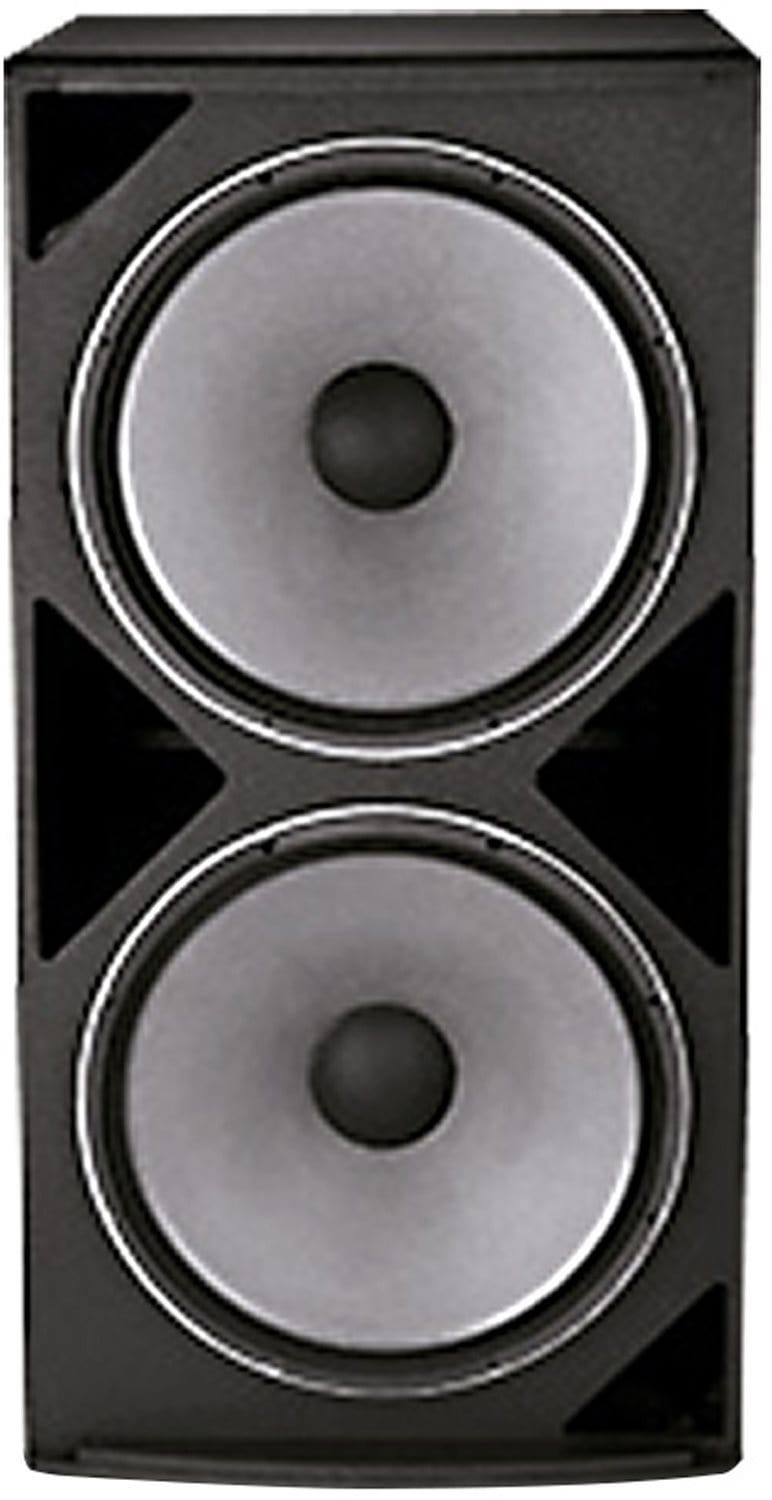

JBL ASB4128 Dual 18-inch Subwoofer
ASB4128 is a medium power subwoofer system comprised of two 460 mm (18 in) low frequency drivers in a front-loaded, vented configuration. The deep, rectangular cabinet allows for extended low frequency bandwidth with minimum frontal profile.
Why this product
Key Benefits
-
Large vent area for high output.
-
Parallel/Discrete Switchable.
-
See Array Guide on applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
Technical details
Technical Specifications
Frequency
- Frequency Range
- 30 Hz – 1 kHz (-10 dB)
- Frequency Response
- 40 Hz – 1 kHz ( ± 3 dB)
Performance & Coverage
- Maximum SPL
- 30 Hz – 100 Hz: 133 dB-SPL cont avg (139 dB peak) 100 Hz – 500 Hz: 133 dB-SPL cont avg (139 dB peak)
- System Sensitivity
- 30 Hz – 100 Hz: 103 dB 100 Hz – 500 Hz: 103 dB
Power
- Transducer Power Rating (AES)
- 1000 W (4000 W peak), 2 hrs
- Long-Term System Power Rating (IEC)
- 600 W (2400 W peak), 100 hrs
- Nominal Impedance
- 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
Connectivity
- Input Modes
- Drivers Parallel / Drivers Discrete
