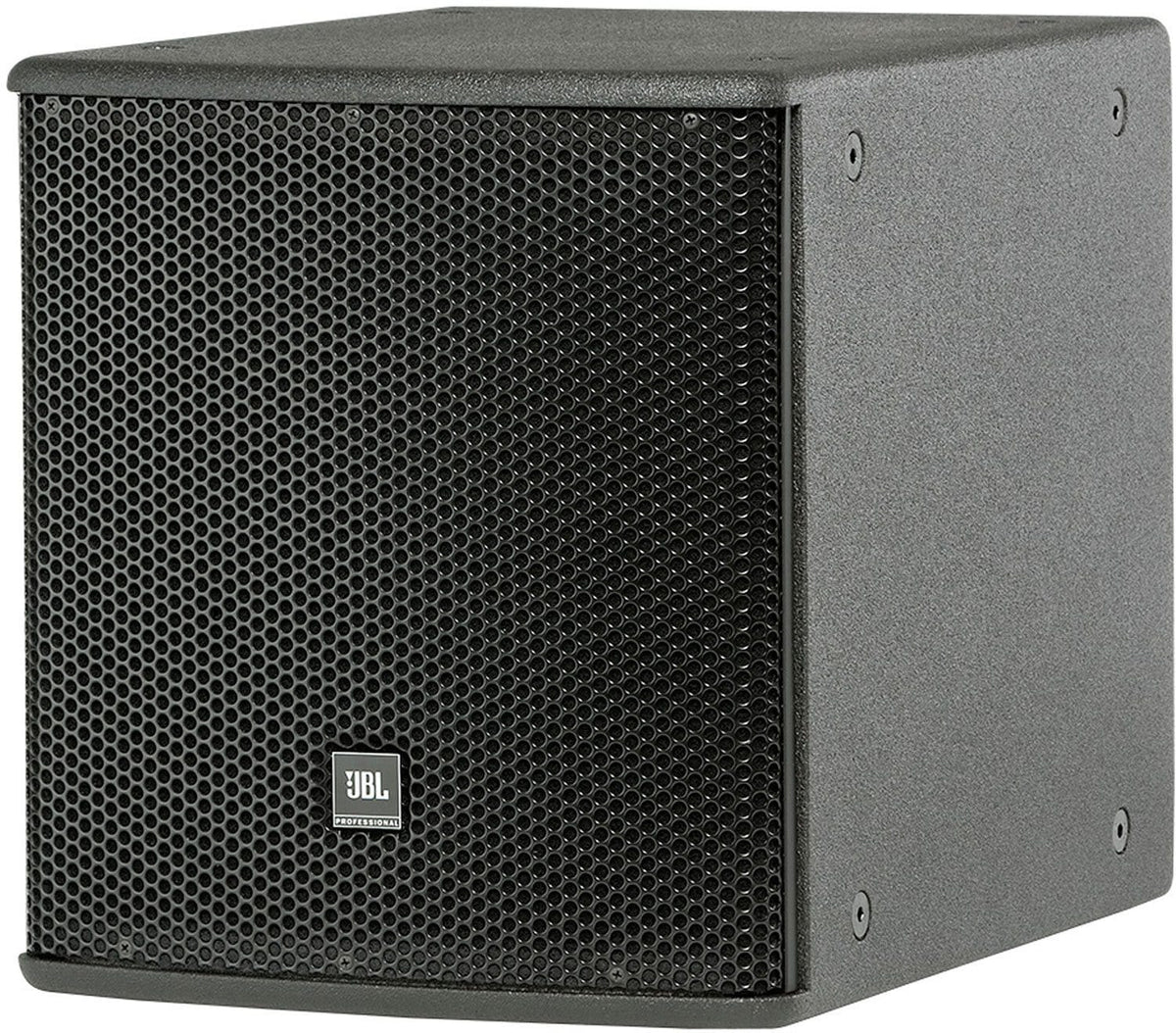

JBL ASB6112 Subwoofer
Model ASB6112
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL ASB6112 Compact 12-inch Subwoofer
The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
Why this product
Key Benefits
-
2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
-
1000 watts continuous pink noise,
-
4000 watts peak power handling capacity
-
Large vent area for high output with low distortion
-
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
-
AE Series products
Technical details
Technical Specifications
System
- Low Frequency Driver
- 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
Frequency
- Frequency Range (-10 dB)
- 35 Hz – 1 kHz
- Frequency Response (± 3 dB)
- 43 Hz – 1 kHz
Performance & Coverage
- Maximum SPL (1m)
- 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
Power
- Transducer Power Rating
- 1000 W (4000 W peak), 2 hrs.
- Long-Term System Power Rating
- 700 W (2800 W peak), 100 hrs.
- Nominal Impedance
- 8 ohms
Connectivity
- Input Connector
- NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Physical
- Enclosure
- Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
- Suspension Attachment
- 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
- Finish
- Black DuraFlex™ finish. White available upon request.
- Grille
- Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Net Weight
- 16.3 kg (36.0 lb)
Environmental
- Environmental Specifications
- Mil-Std 810; IP-x3 per IEC529.
Included & Optional Accessories
- Optional Accessories
- M10 x 35 mm forged shoulder eyebolts with washers.
More details
Additional Information
Specifications:
- System Sensitivity: 40 Hz - 300 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
- Dimensions (H x W x D in vertical cabinet orientation): 406 x 369 x 483 mm (16.0 x 14.5 x 19.0 in)
