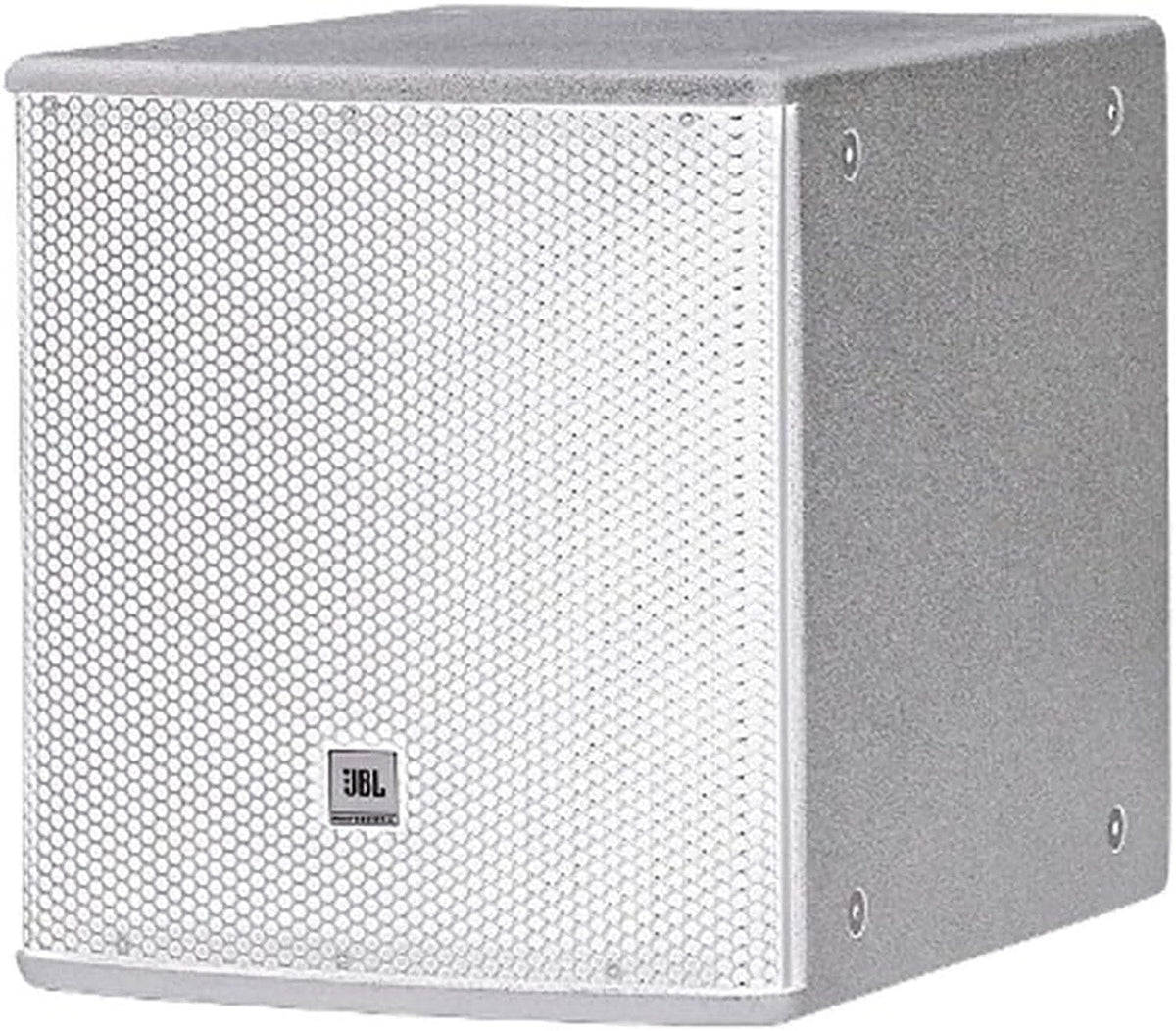

JBL ASB6118-WH High Power 18-Inch Subwoofer - White
Model ASB6118-WH
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL ASB6118-WH High Power 18-Inch Subwoofer - White
ASB6118-WH is a white high power subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver in a vented, front-loaded configuration for extended bandwidth.
Why this product
Key Benefits
-
1 x 18” 2242H SVG™ Driver.
-
Large vent area for high output with low distortion.
-
Arrays with various AE Series mid-high frequency 2-way models.
Technical details
Technical Specifications
System
- LF Driver
- 1 x JBL 2242H 460 mm (18 in) SVG™ driver with 100 mm (4 in) voice coil
Frequency
- Frequency Range (-10dB)
- 28 Hz – 1 kHz
- Frequency Response (±3 dB)
- 35 Hz – 1 kHz
Performance & Coverage
- Maximum SPL (1m)
- 30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak)100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak)
Power
- Transducer Power Rating (AES)
- 1200 W (4800 W peak), 2 hrs
- System Power Rating
- 800 W (3200 W peak), 100 hrs
- Nominal Impedance
- 8 ohms
- Nominal LF Driver Impedance
- 8 ohms
Physical
- Enclosure
- Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
- Suspension Attachment
- 12 points (3 top, 3 bottom, 3 each side, 2 rear), M10 threaded hardware
- Net Weight (each)
- 98 lbs. (44.5 kgs)
Environmental
- Environmental
- Mil-Std 810; IP-x3 per IEC529.
More details
Additional Information
Specifications:
- System Sensitivity (1w @ 1m): 30 Hz – 100 Hz: 98 dB100 Hz – 500 Hz: 98 dB
