JBL ASB6128 Subwoofer
Model ASB6128
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

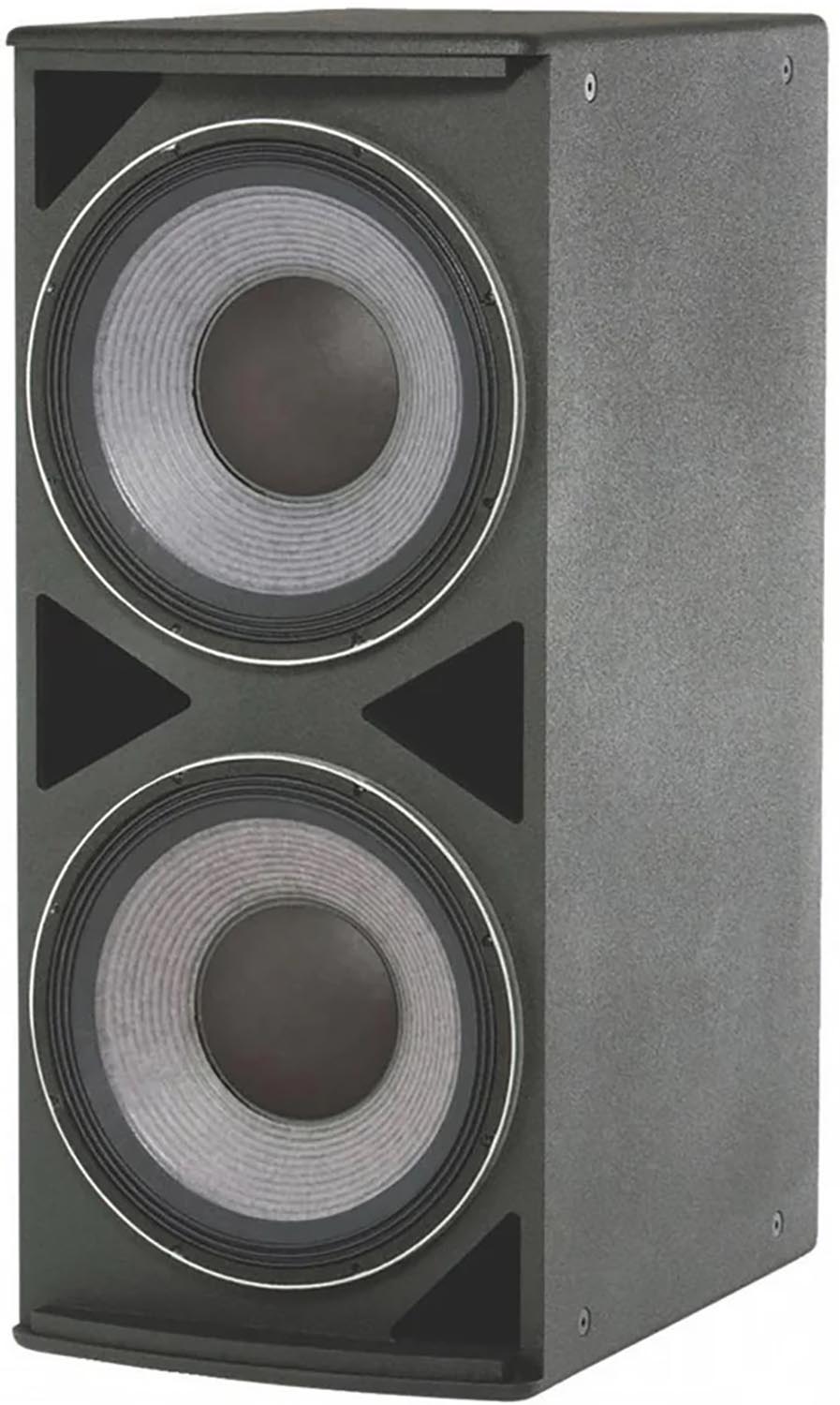

JBL ASB6128 Dual 18-inch Subwoofer
High Power Subwoofer 2 x 18" 2242H SVG™ Driver
ASB6128 is a high power subwoofer system comprised of two 460 mm (18 in) SVG Super Vented Gap low frequency drivers in a front-loaded, vented configuration.
Why this product
Key Benefits
-
Large vent area for high output.
-
Parallel/Discrete Switchable.
-
For fixed installation applications such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live clubs, dance-clubs/discotheques, sports facilities and themed entertainment venues.
Technical details
Technical Specifications
Frequency
- Frequency Range
- 28 Hz – 1 kHz (-10 dB)
- Frequency Response
- 35 Hz – 1 kHz ( ± 3 dB)
Performance & Coverage
- Maximum SPL
- 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak) 100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
Power
- Transducer Power Rating (AES)
- 2400 W (9600 W peak), 2 hrs
- Long-Term System Power Rating (IEC)
- 1600 W (6400 W peak), 100 hrs
- Nominal Impedance
- 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
Connectivity
- Input Modes
- Drivers Parallel / Drivers Discrete
More details
Additional Information
Specifications:
- System Sensitivity (dB-SPL, 1W @ 1m): 30 Hz – 100 Hz: 102 dB 100 Hz – 500 Hz: 102 dB
