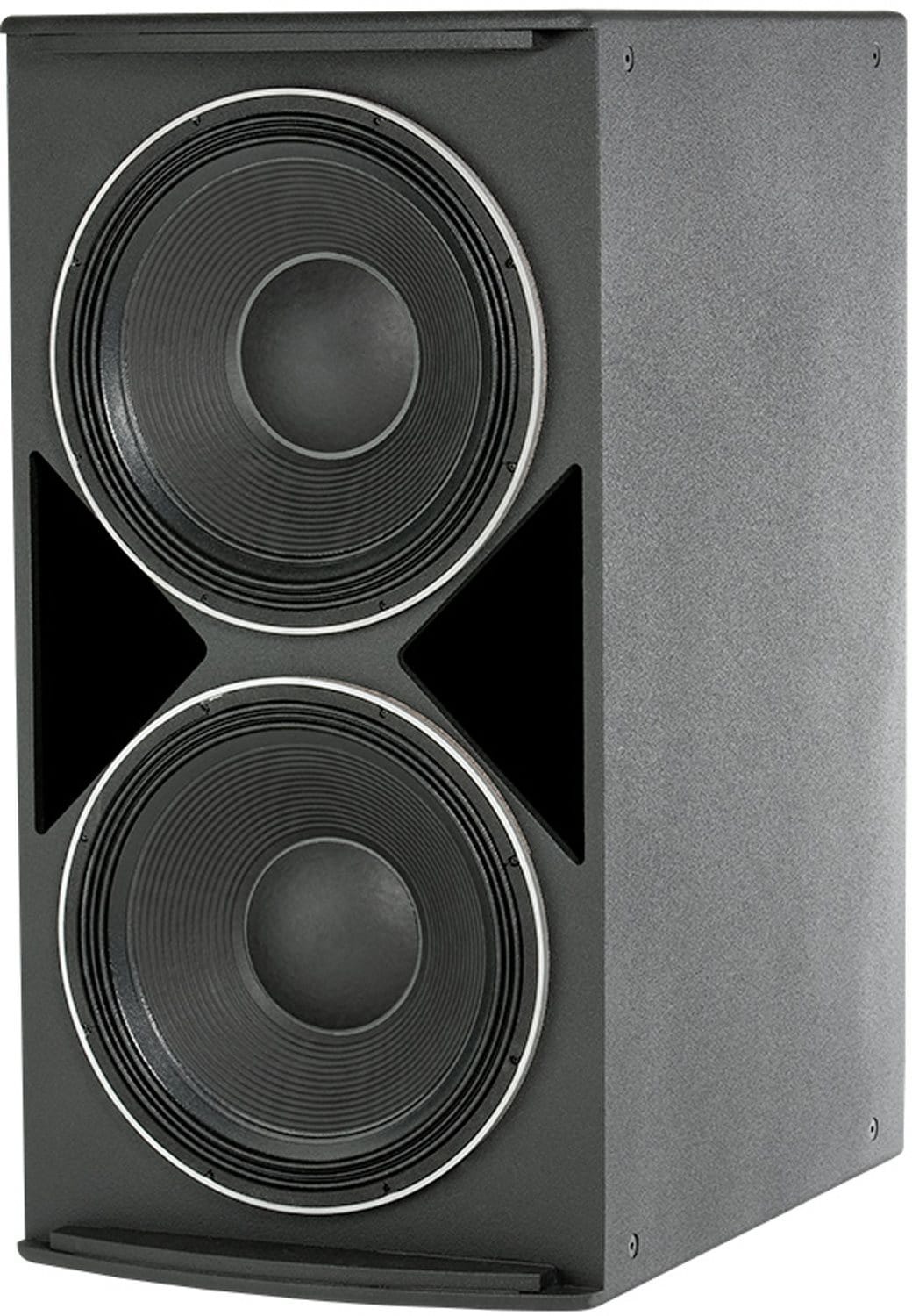

JBL ASB7128 Subwoofer
Model ASB7128
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL ASB7128 High Power Dual 18-inch Subwoofer
Ultra Long Excursion High Power Dual 18" Subwoofer
The ASB7128 is a high power, lightweight front-loaded vented subwoofer enclosure housing two of JBL's exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofers. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").
Why this product
Key Benefits
-
2 x 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducers
-
4000 watts continuous pink noise,
-
16000 watts peak power handling capacity
-
Ultra Long Excursion
-
Large vent area for high output with low distortion
-
Parallel/Discrete switchable input mode
-
For ground-stacked or suspended applications in stand-alone arrays or in combination with other
-
AE Series products
Technical details
Technical Specifications
System
- Low Frequency Driver
- 2 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive®, VGC™ drivers
Frequency
- Frequency Range (-10 dB)
- 20 Hz - 1 kHz
- Frequency Response (± 3 dB)
- 25 Hz - 1 kHz
Performance & Coverage
- Maximum SPL (1m)
- 25 Hz - 200 Hz: 135 dB-SPL cont avg. (141 dB peak)
Power
- Transducer Power Rating
- 4000 W (16000 W peak), 2 hrs.
- Long-Term System Power Rating
- 2400 W (9600 W peak), 100 hrs.
- Nominal Impedance
- 4 ohms in parallel-drive mode 2 x 8 ohms in discrete-drive mode
Connectivity
- Input Modes
- Drivers Parallel / Drivers Discrete
- Input Connector
- NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Physical
- Enclosure
- Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
- Suspension Attachment
- 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
- Finish
- Black DuraFlex™ finish. White available upon request.
- Grille
- Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Net Weight
- 71.9 kg (158.5 lb)
Environmental
- Environmental Specifications
- Mil-Std 810; IP-x3 per IEC529.
Included & Optional Accessories
- Optional Accessories
- M10 x 35 mm forged shoulder eyebolts with washers.
More details
Additional Information
Specifications:
- System Sensitivity: 25 Hz - 200 Hz: 99 dB-SPL, 1W (2.0V) @ 1m
- Dimensions (H x W x D in vertical cabinet orientation): 1092 x 560 x 815 mm (43.0 x 22.0 x 32.1 in)
