Product details
Overview

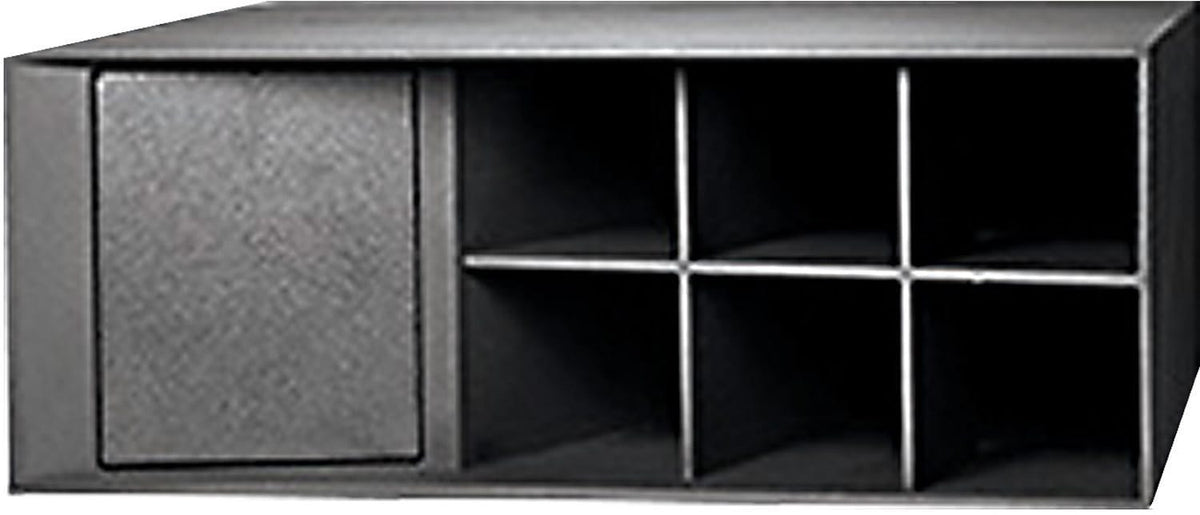

JBL ASH6118 Single 18-Inch Horn-Loaded Subwoofer
Horn-Loaded Subwoofer 1 x 18" 2242H SVG™ Driver
ASH6118 is a high power hornloaded subwoofer system comprised of one 460 mm (18 in) SVG Super Vented Gap low frequency driver.
Why this product
Key Benefits
-
Designed to be used in multiples (2 minimum, 4 optimum) with proximity placement or with proper boundary surface loading.
-
Maximum low frequency output & sensitivity.
-
Excellent "punch."
-
For fixed installation applications requiring maximum low frequency output, such as dance-clubs/discotheques, live clubs, performing arts facilities, theatrical sound design, auditoriums, houses of worship, sports facilities and themed entertainment venues.
Technical details
Technical Specifications
Frequency
- Frequency Range (-10 dB)
- 1 cabinet: 25 Hz – 250 Hz, 2 cabinets: 24 Hz – 250 Hz, 4 cabinets: 22 Hz – 250 Hz
- Frequency Response (±3 dB)
- 1 cabinet: 30 Hz – 200 Hz, 2 cabinets: 28 Hz – 200 Hz, 4 cabinets: 26 Hz – 200 Hz
Performance & Coverage
- Maximum SPL
- 30 Hz – 140 Hz: 1 cabinet: 133 dB-SPL, cont avg (139 dB peak) 2 cabinets: 138 dB-SPL cont avg (144 dB peak) 4 cabinets: 144 dB-SPL cont avg (150 dB peak)
Power
- Transducer Power Rating (AES)
- 1 cabinet: 1200 W (4800 W peak), 2 hrs, 800 W (3200 W peak), 100 hrs 2 cabinets: 2400 W (9600 W peak), 2 hrs 1600 W (6400 W peak), 100 hrs 4 cabinets: 4800 W (19200 W peak), 2 hrs 3200 W (12800 W peak), 100 hrs
- Long-Term System Power Rating (IEC)
- 1 cabinet: 800 W (3200 W peak), 100 hrs 2 cabinets: 1600 W (6400 W, peak), 100 hrs 4 cabinets: 3200 W (12800 W peak), 100 hrs
- Nominal Impedance
- 8 ohms per cabinet
More details
Additional Information
Specifications:
- System Sensitivity (dB-SPL, 1W @ 1m): 30 Hz – 150 Hz: 1 cabinet: 102 dB 2 cabinets: 104 dB 4 cabinets: 107 dB|
