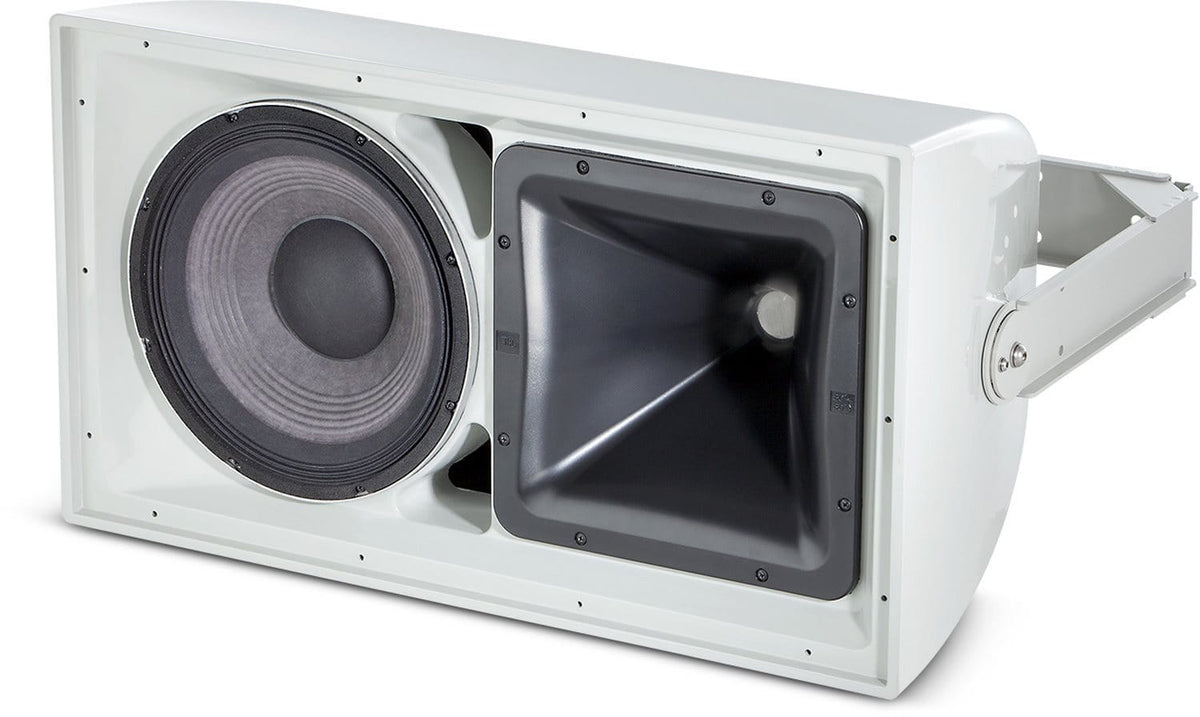

JBL AW295 Loudspeaker
Model AW295
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AW295 High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn
High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn
The AW295 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The AW295 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Why this product
Key Benefits
-
Weather-Resistant, All Fiberglass Enclosure
-
90° x 50° Coverage
-
2262H Differential Driver® Low- Frequency Driver
-
2432H High Frequency Compression Driver
-
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
-
Rotatable wave guide for vertical or horizontal orientation
-
Available in Gray and Black finish
-
400 W, 70/100V Transformer Included
-
U-type Mounting Bracket Included
Use cases
Applications
-
Sports Facilities
-
Themed Entertainment Venues
-
Outdoor Entertainment Centers
-
Cruise Ships
-
Water Parks
Technical details
Technical Specifications
System
- Crossover Frequency
- 1.3 kHz
- Low Frequency Driver
- 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with (3 in) dual voice coil
Frequency
- Frequency Range (-10 dB)
- 43 Hz – 20 kHz
- Frequency Response (±3 dB)
- 53 Hz – 18 kHz
Performance & Coverage
- Coverage Pattern
- 90° x 50°, rotatable waveguide
- Directivity Factor (Q)
- 12.6
- Directivity Index (DI)
- 11 dB
- Maximum SPL
- 126 dB-SPL cont avg (132 dB peak)
Power
- Long-Term System Power Rating (IEC)
- 500 W (2000 W peak), 100 hrs
- 70V/100V Transformer Taps
- 70V: 400 W, 200 W, 100W 100V: 400W, 200W
- LFD Nominal Impedance
- 8 ohms
More details
Additional Information
Specifications:
- System Sensitivity (1W @ 1m): 98 dB SPL
- LFD Sensitivity (1W @ 1m, within operational band): 96 dB SPL
