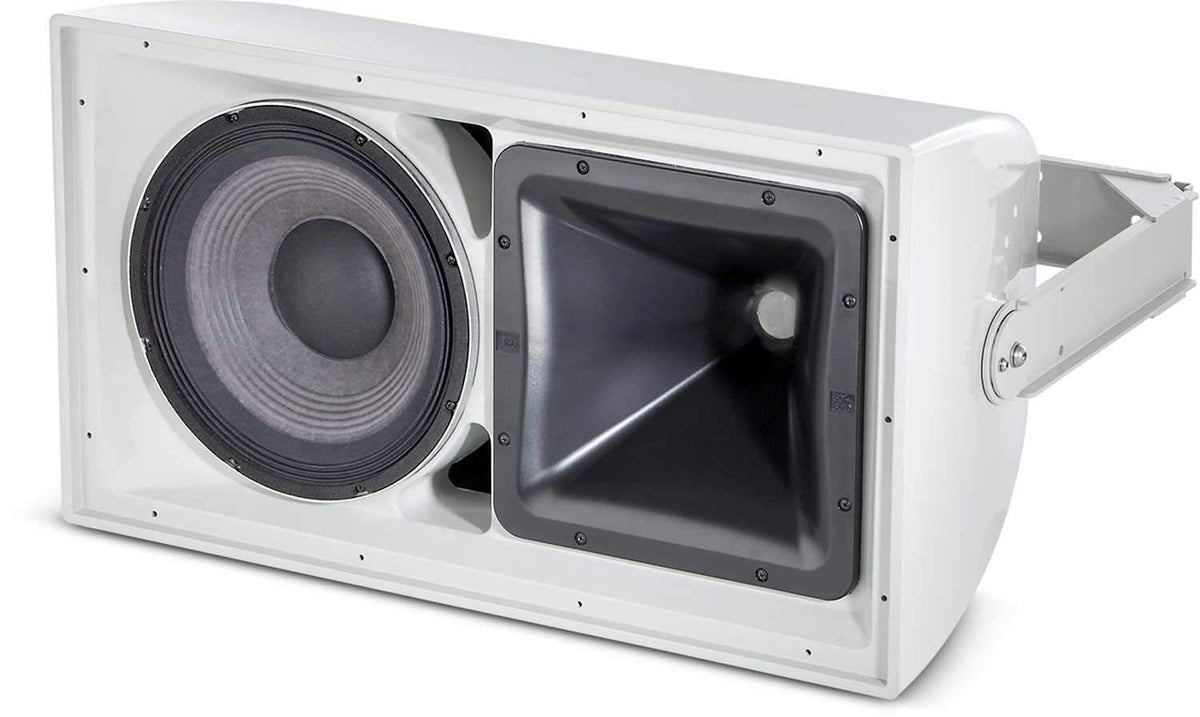

JBL AW295-LS Loudspeaker
Model AW295-LS
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AW295-LS High Power 2-Way All Weather Loudspeaker with 1 x 12" LF / EN 54-24 Compliant for Life Safety Applications
High Power 2-Way All Weather Loudspeaker with 1 x 12" LF & Rotatable Horn for Life Safety Applications
The AW295-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation.
Features:
- Weather-Resistant, All Fiberglass Enclosure
- EN54-24 Compliant
- 90° x 50° Coverage
- 2262H Differential Driver® Low- Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable wave guide for vertical or horizontal orientation
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included
- U-type Mounting Bracket Included
Applications:
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
Specifications:
- Frequency Range (-10 dB): 74 Hz – 20 kHz
- Frequency Response (±3 dB): 106 Hz – 18 kHz
- Coverage Pattern: 90° x 50°, rotatable waveguide
- Coverage Angle Horizontal Vertical: 500 Hz 1000 Hz 2000 Hz 4000 Hz 139° 89° 76° 76° 112° 86° 64° 38°
- Directivity Factor (Q): 12.6
- Directivity Index (DI): 11 dB
- Crossover Frequency: 1.3 kHz
- Long-Term System Power Rating (IEC): 400 W (1600 W peak), 100 hrs
- Maximum SPL: 125 dB-SPL cont avg (131 dB peak)
- Maximum SPL (@ 4m): 111.92 dB
- System Sensitivity (1W @ 1m): 98 dB SPL
- Sensitivity (1W @ 4m): 85.9 dB SPL
- 70V / 100V Transformer Taps: 70V: 400 W, 200 W, 100W 100V: 400W, 200W
- Low Frequency Driver: 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
- Nominal Impedance: 8 ohms
- Sensitivity (1W @ 1m, within operational band): 96 dB SPL
