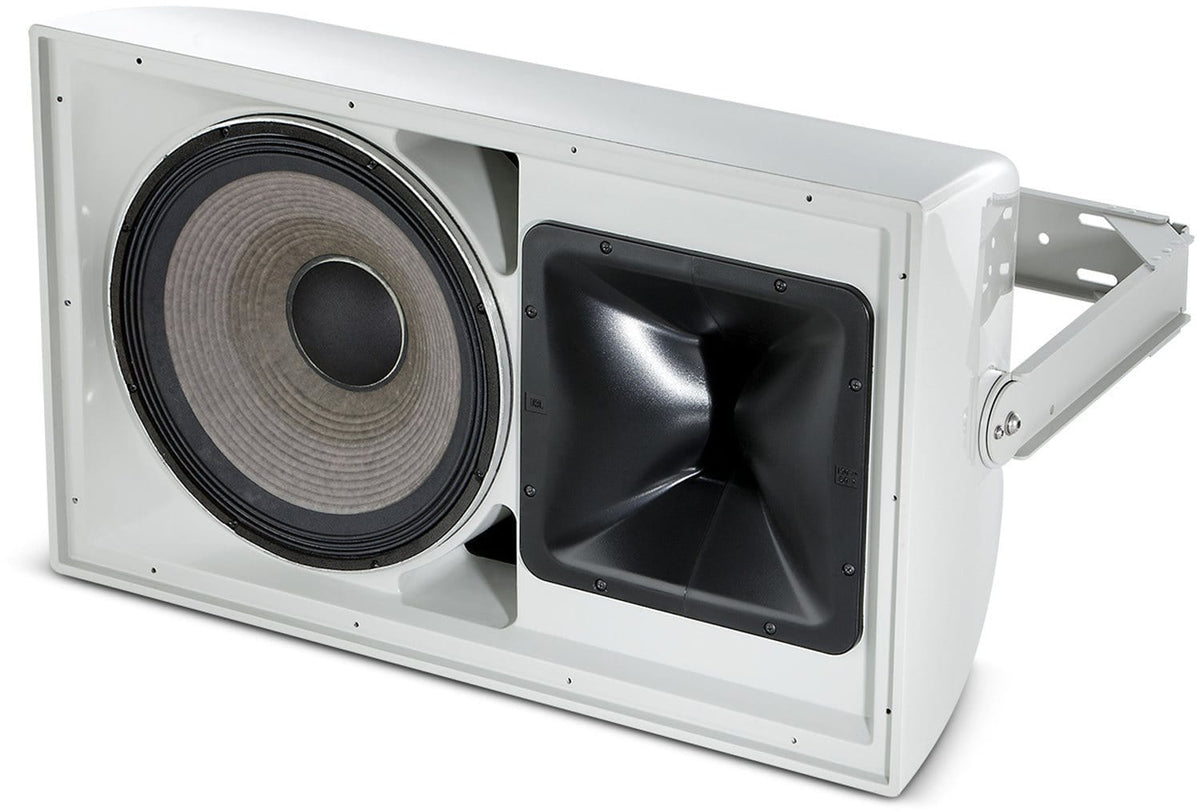

JBL AW526 Loudspeaker
Model AW526
Price on Request
Availability: In Stock
- Authorized JBL Professional Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
JBL AW526 High Power 2-Way All Weather Loudspeaker with 1 x 15" LF
High Power 2-Way All Weather Loudspeaker with 1 x 15" LF
The AW526 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The AW526 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
Why this product
Key Benefits
-
Weather-Resistant, All Fiberglass Enclosure
-
120° x 60° Coverage
-
2265H-1 Differential Driver® Low- Frequency Driver
-
2432H High Frequency Compression Driver
-
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
-
Rotatable waveguide for vertical or horizontal orientation
-
Available in Gray and Black finish
-
400 W, 70/100V Transformer Included
-
U-type Mounting Bracket Included
Use cases
Applications
-
Sports Facilities
-
Themed Entertainment Venues
-
Outdoor Entertainment Centers
-
Cruise Ships
-
Water Parks
Technical details
Technical Specifications
System
- Crossover Frequency
- 1.1 kHz
- Low Frequency Driver
- 1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil
Frequency
- Frequency Range (-10 dB)
- 35 Hz – 20 kHz
- Frequency Response (±3 dB)
- 55 Hz – 17 kHz
Performance & Coverage
- Coverage Pattern
- 120° x 60°, rotatable waveguide
- Directivity Factor (Q)
- 7.9
- Directivity Index (DI)
- 9 dB
- Maximum SPL
- 128 dB-SPL cont avg (134 dB peak)
Power
- Long-Term System Power Rating (IEC)
- 600 W (2400 W peak), 100 hrs
- 70V/100V Transformer Taps
- 70V: 400W, 200W, 100W 100V: 400W, 200W
- LFD Nominal Impedance
- 8 ohms
More details
Additional Information
Specifications:
- System Sensitivity (1W @ 1m): 100 dB
- LFD Sensitivity (1W @ 1m, within operational band): 98 dB SPL
