Product details
Overview

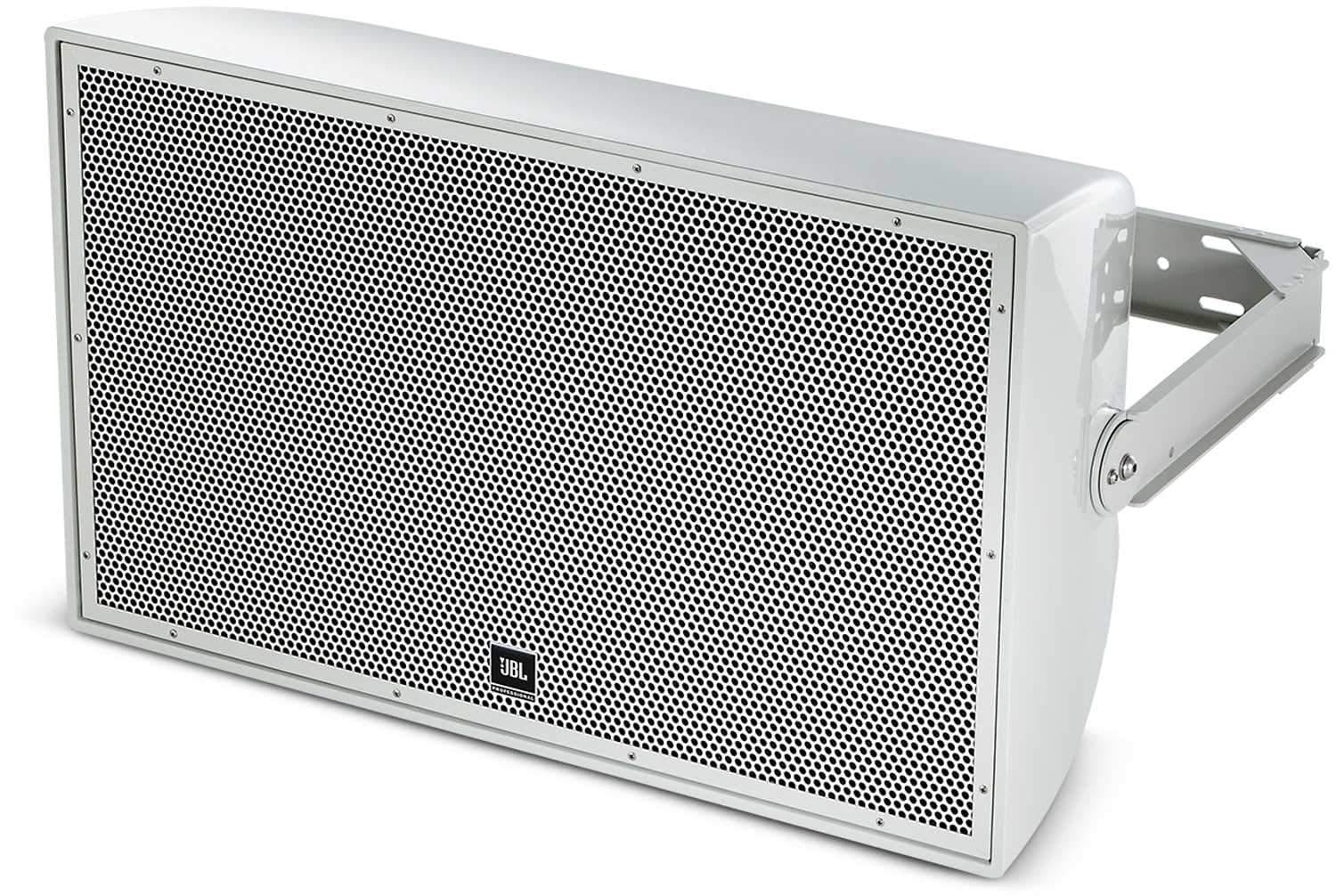

JBL AW566-LS High Power 2-Way All Weather Loudspeaker with 1 x 15" LF / EN 54-24 Compliant for Life Safety Applications
High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn for Life Safety Applications

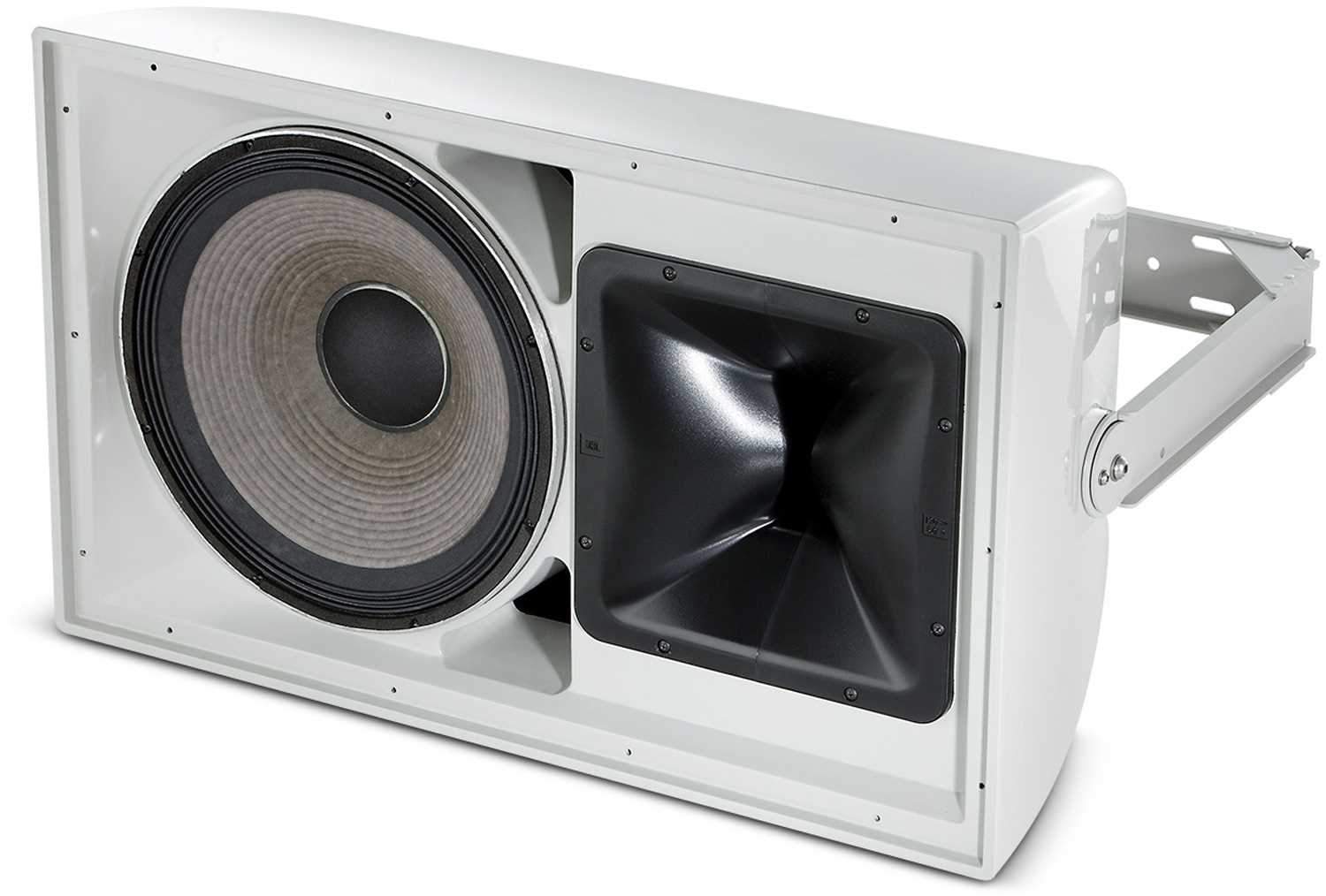

The AW566-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 60° x 60° coverage. The loudspeaker system can used in either the vertical or horizontal orientation.
Features:
- Weather-Resistant, All Fiberglass Enclosure
- EN54-24 Compliant
- 60° x 60° Coverage
- 2265H Differential Drive® Low-Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included

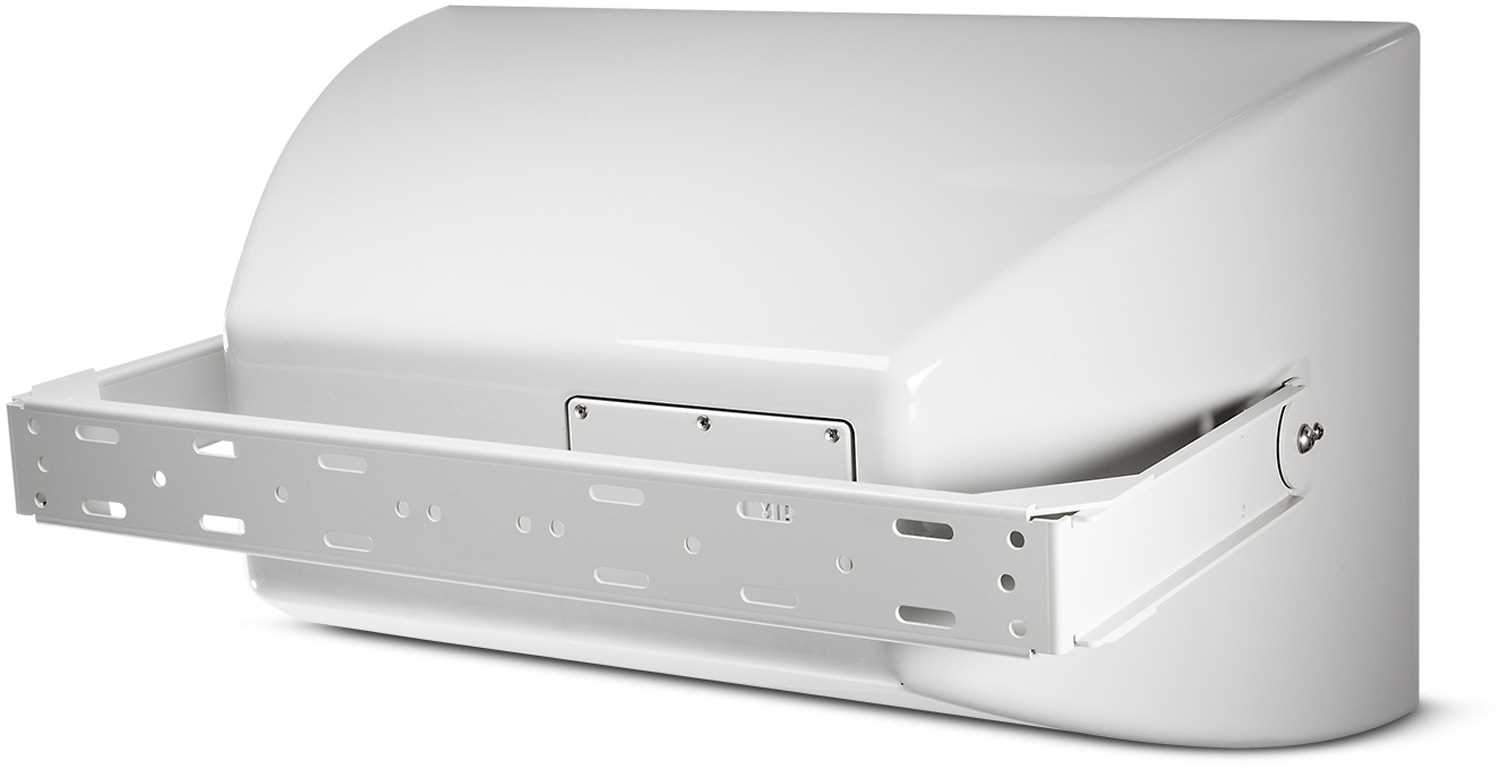

- U-type Mounting Bracket Included
Applications:
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks
Specifications:
- Frequency Range (-10 dB): 42 Hz – 20 kHz
- Frequency Response (±3 dB): 89 Hz – 18 kHz
- Coverage Pattern: 60° x 60°, rotatable waveguide
- Coverage Angle Horizontal Vertical: 500 Hz 1000 Hz 2000 Hz 4000 Hz 139° 111° 78° 70° 93° 91° 64° 52°
- Directivity Factor (Q): 15.8
- Directivity Index (DI): 12 dB
- Crossover Frequency: 1.1 kHz
- Long-Term System Power Rating (IEC): 400 W (1600 W peak), 100 hrs
- Maximum SPL: 127 dB-SPL cont avg (133 dB peak)
- Maximum SPL (@ 4m): 114.24 dB
- System Sensitivity (1W @ 1m): 100 dB SPL
- Sensitivity (1W @ 4m): 89.6 dB SPL
- 70V / 100V Transformer Taps: 70V: 400 W, 200 W, 100W 100V: 400W, 200W
- Low Frequency Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive® driver with 75 mm (3 in) dual voice coil
- Nominal Impedance: 8 ohms
- Sensitivity (1W @ 1m, within operational band): 98 dB SPL
